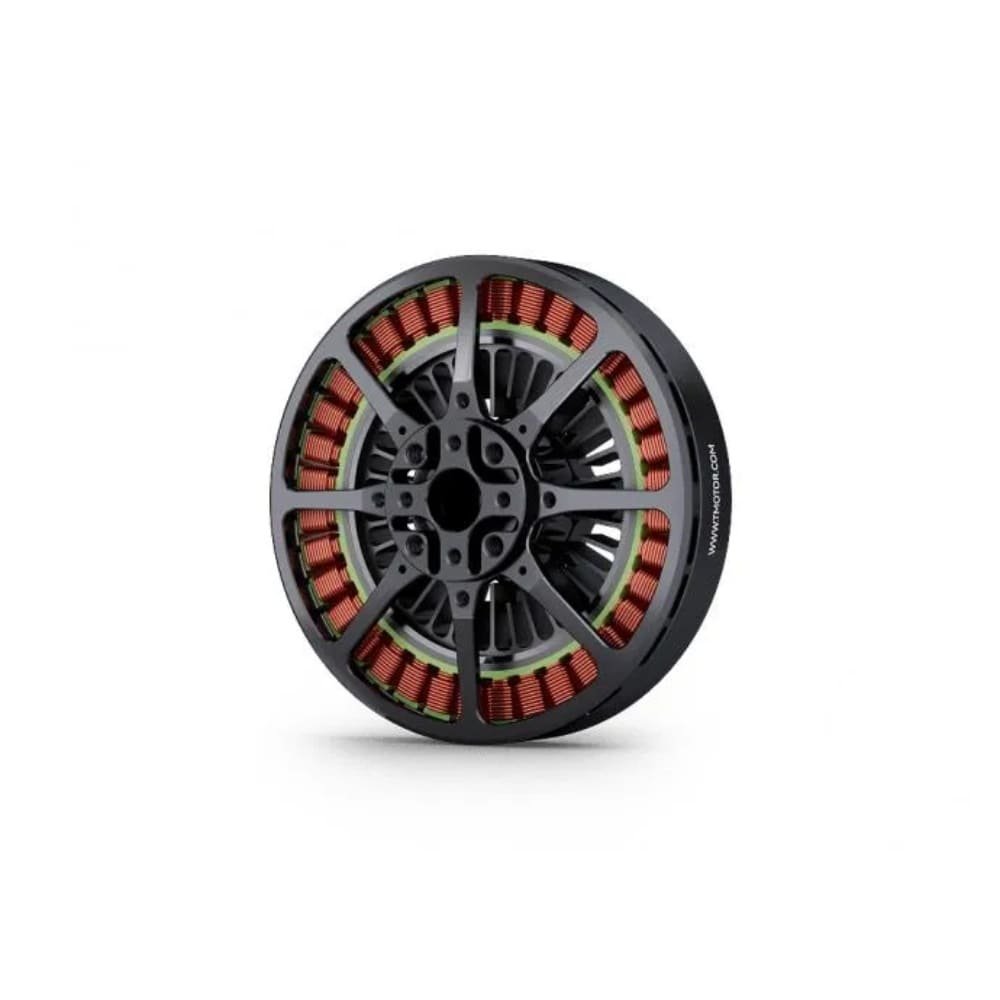

U8 Lite L Efficiency Multirotor UAV Motor

  • 3rd generation propellers+FOC ESC: Efficient
  • High thrust/weight ratio
  • Excessive Power

$329.90

Get a quote

Share on:

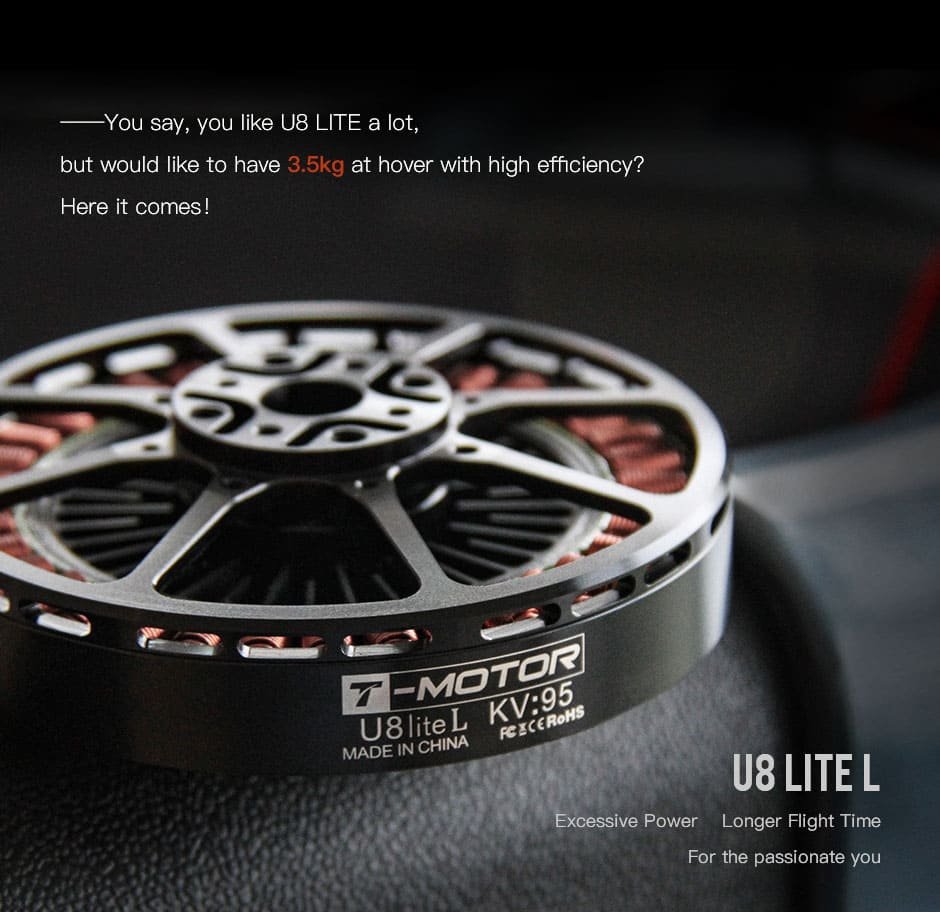

  • About T-MOTOR U8 Lite L Efficiency Multirotor UAV Motor KV95
    T-MOTOR U8 Lite L KV110 delivers exceptional thrust up to 11.2kg with an ultra-light design for extended flight durations. Built with imported custom bearings, it features a redesigned structure tested for axial and radial stresses, ensuring a lifespan of 1,000 operational hours and up to 1,500 flights. Its advanced magnetic circuit matches the efficiency of the U8 Lite, offering unmatched power and reliability.
  • U8 Lite L KV95 Highlights:

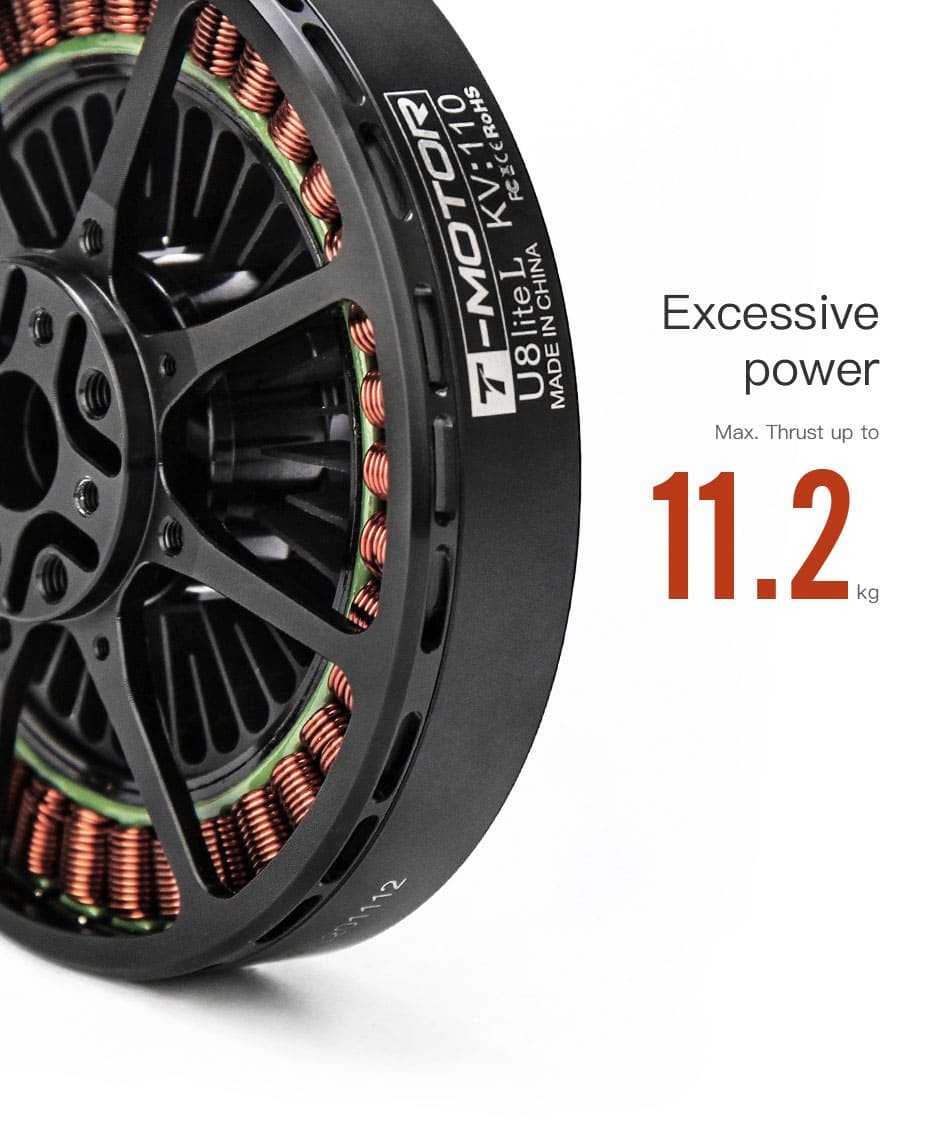

    1.Max. thrust ：11.2kg
    2.MTBF：About 1000hours
    3.Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
    4.Industrial grade, dust proof, water proof.
  • Application Areas:
    Surveillance, cruise, security and protection, surveying and mapping.

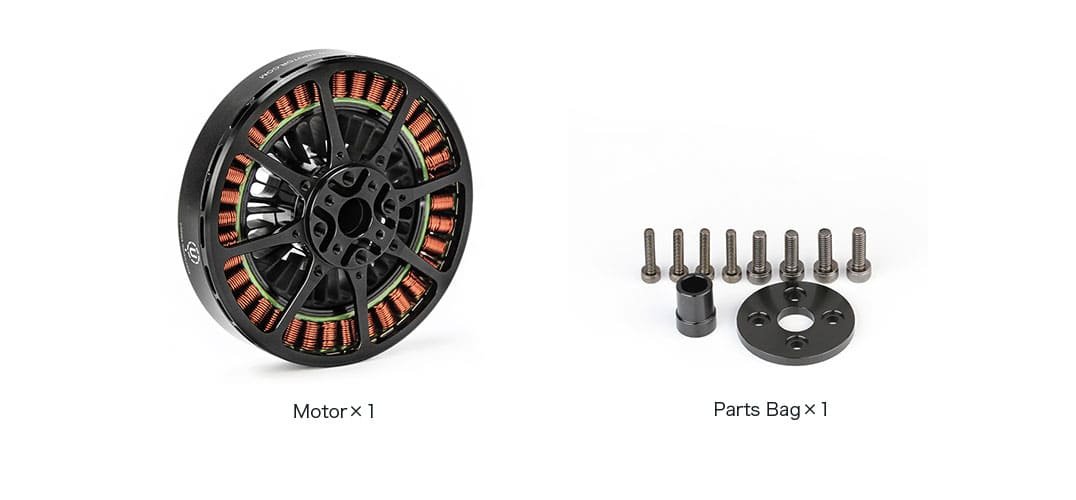

  • Packing List Includes:
    1x T-MOTOR U8 Lite L Motor KV95
    1x Hardware pack
  • “U Efficiency” motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

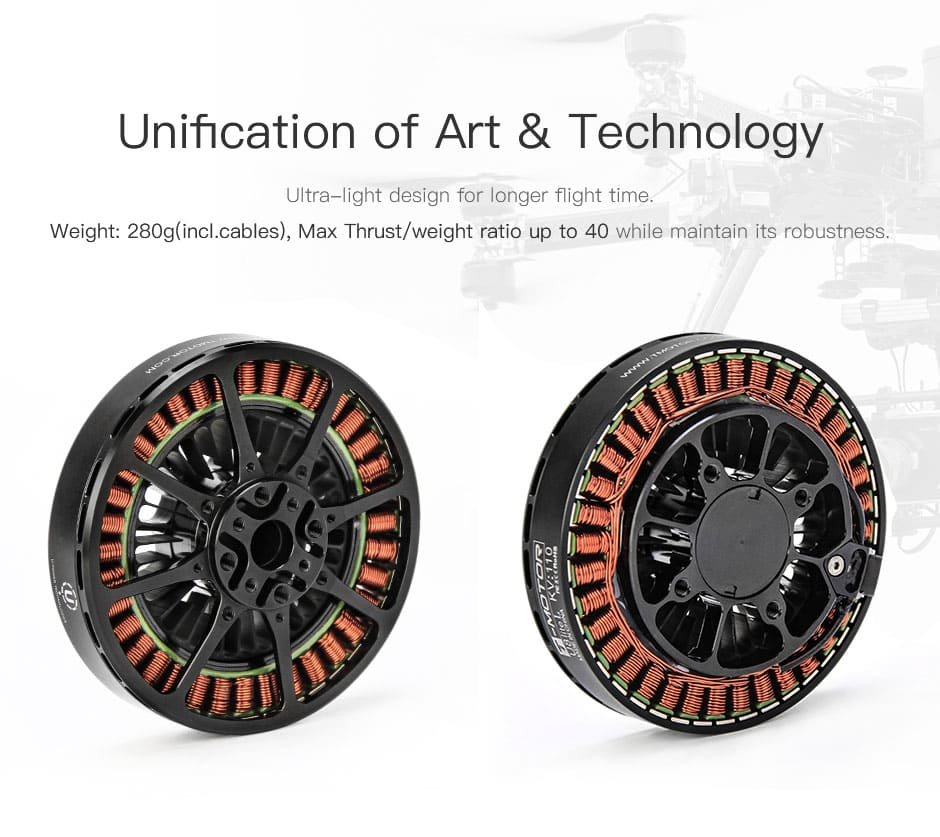

  • Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

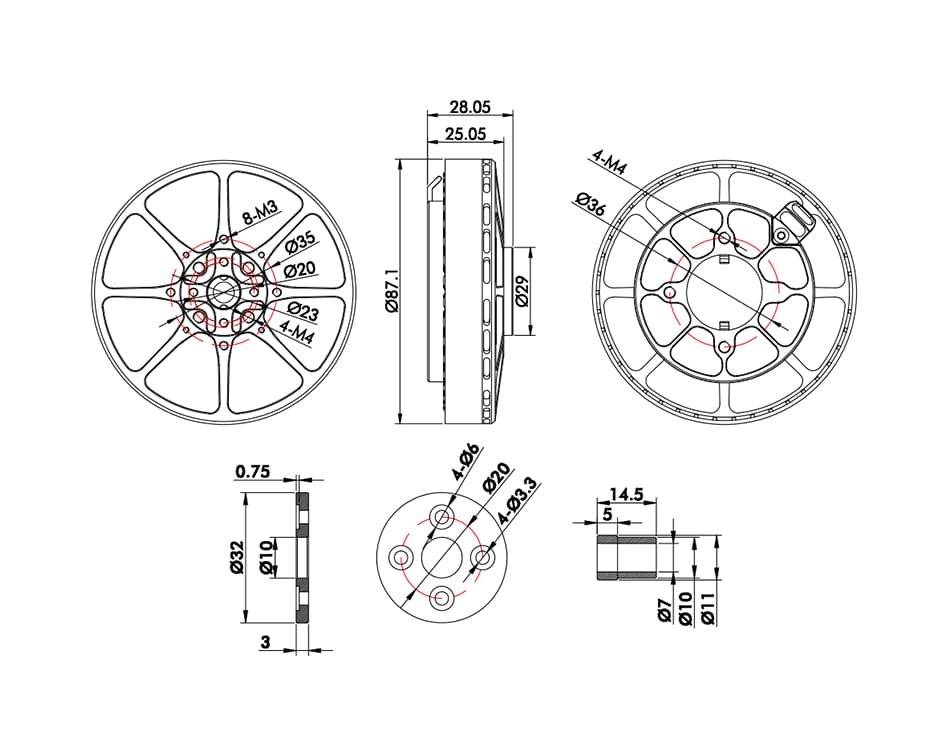

Technical Drawing
Specification
KV95Rated Voltage(Lipo)12S(4.2V/pc) / 48-52V
Motor Weight (Incl. Cable)280gMotor DimensionsΦ87.1×28.05mm
Idle Current(18V)0.7AShaft Diameter15mm
Internal Resistance146mΩConfigu ration36N42P
Peak Current(180s)38ACable Length90mm
Max Power (180S)1790WPacking Size130*111*50.6mm
KV110Rated Voltage(Lipo)12S(4.2V/pc) / 48-52V
Motor Weight (Incl. Cable)282gMotor DimensionsΦ87.1×28.05mm
Idle Current(18V)0.9AShaft Diameter15mm
Internal Resistance105mΩConfigu ration36N42P
Peak Current(180s)45.8ACable Length90mm
Max Power (180S)2140WPacking Size130*111*50.6mm
Test Data
TypePropellerThrottleVoltage
(V)		Thrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)		Operating
Temperature
(℃)
U8lite L
KV95		G29*9.540%4817250.592.60157912413.8950℃
45%4821590.733.56176117012.69
50%4826040.874.66192922211.71
55%4830921.035.95209528410.90
60%4835531.187.22224734510.31
65%4841001.368.8724144239.70
70%4845731.5210.5325485019.12
75%4852141.7212.7427056068.61
80%4859391.9515.4028877328.12
90%4771912.3420.6231579777.36
100%4785212.7827.00343912766.68
G30*10.540%4819980.703.04156114613.7368℃
45%4824680.864.12173519712.54
50%4829281.035.31190025311.56
55%4834271.206.84205632610.51
60%4839501.388.3522013989.93
65%4845371.5810.3323604929.23
70%4850161.7512.0224905728.77
75%4857441.9914.6426356958.26
80%4765072.2517.5827948347.80
90%4779322.7324.03305611376.97
100%4794263.2531.89331815046.27
G32*1140%4824920.933.97151919013.1487℃
45%4830871.145.39168125712.01
50%4836721.356.89182632811.18
55%4842171.558.59196640910.30
60%4848781.7810.6821105089.60
65%4855782.0113.0122526189.02
70%4762512.2515.5823837408.45
75%4768302.4617.9825048538.01
80%4775872.7321.27263610087.53
90%4791443.2729.14287313756.65
100%47106113.7938.15306817945.92
U8lite L
KV110		G28*9.240%4820220.653.49187716712.1454℃
45%4825150.804.69207922411.23
50%4830750.966.13227329210.52
55%4835501.127.6924513669.69
60%4840071.279.1226374349.22
65%4845431.4311.3028285388.45
70%4852171.6313.5330186438.11
75%4760831.9016.9832308067.55
80%4768322.1319.9933999477.21
90%4782732.5526.57371612566.59
100%4798473.0735.55406316745.88
G29*9.5 40%4823770.804.30184620511.5872℃
45%4828720.965.44204025911.07
50%4834031.147.07223033710.09
55%4840051.338.8424004219.51
60%4846201.5210.9725735228.85
65%4852231.7213.1327396248.37
70%4759971.9616.1329287667.83
75%4769022.2619.9331229457.31
80%4776742.5023.30328811036.96
90%4792022.9931.30357814776.23
100%47109453.5541.45387019475.62
G30*10.5 40%4826360.914.81180823011.4891℃
45%4832061.116.32198830110.64
50%4838301.338.2821783959.71
55%4844441.5410.3323494929.04
60%4850651.7512.5625115978.48
65%4857731.9915.2226687237.98
70%4765592.2618.5228358797.46
75%4773442.5522.32301410576.95
80%4781732.8226.44317312506.54
90%4797613.3635.40344216675.85
100%47112023.8745.80366621475.22
Packing List
