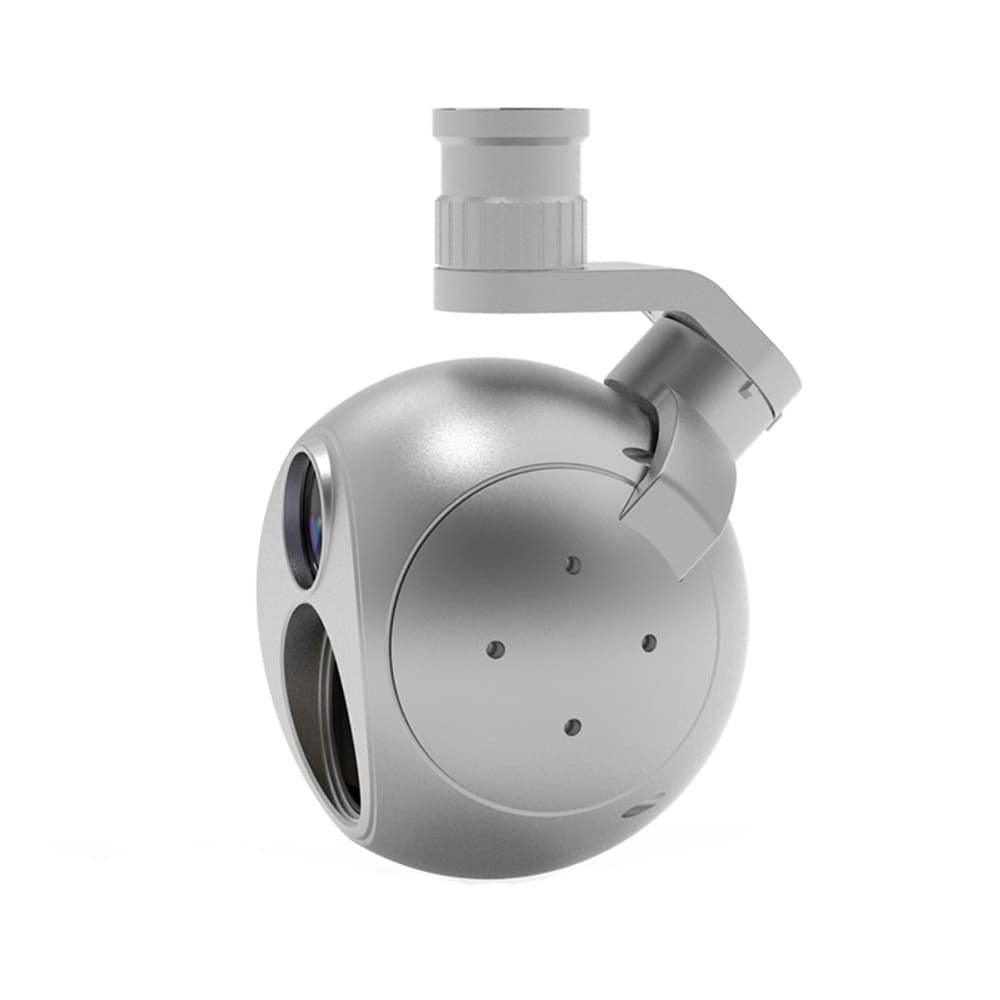

Storm Eye 30IE HT 30X EO/IR Drone Gimbal with AI

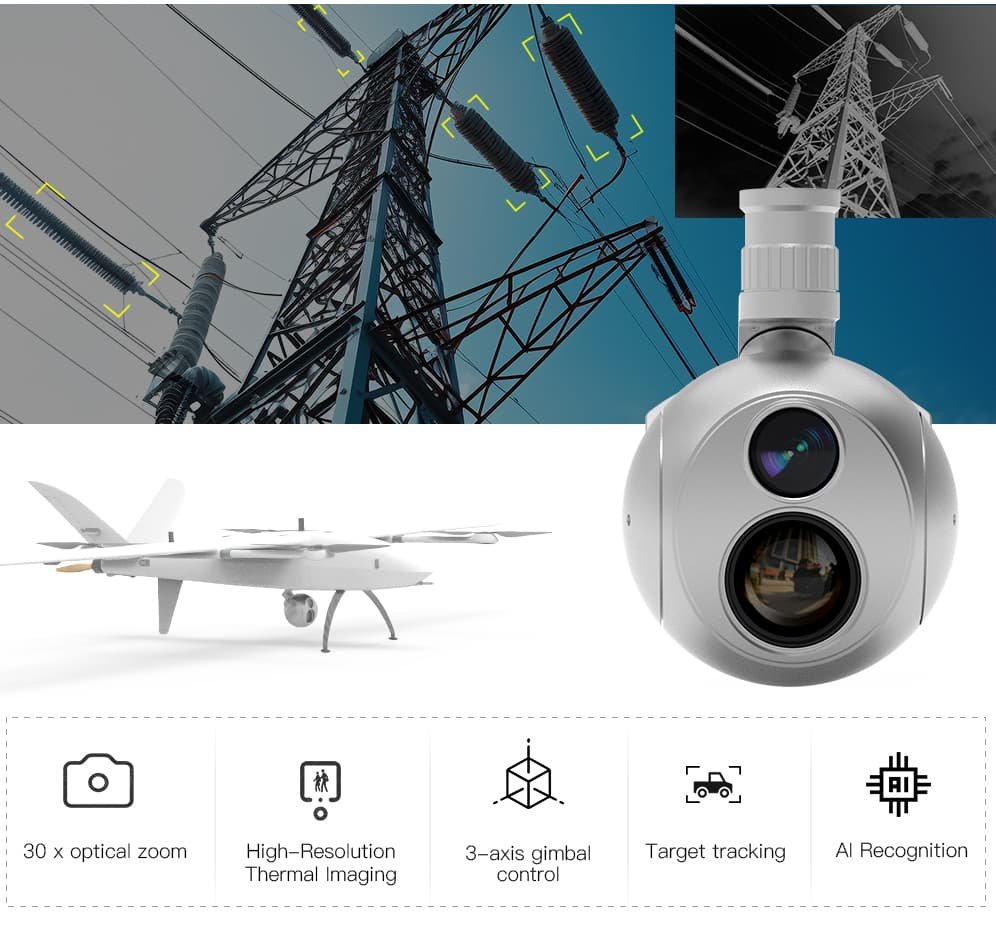

The Storm Eye-30IE-HT is a dual-lens camera featuring an EO lens with a Sony STARVIS CMOS sensor, offering 1080P resolution, 30x optical zoom, and 12x digital zoom for detailed imaging. The thermal lens has a 50mm focal length, 1280×1024 resolution, and operates in the 8μm–14μm infrared range, enhanced by advanced image processing for excellent nighttime performance. Equipped with a 3-axis gimbal, it provides precise control with ±0.01° pitch/roll and ±0.02° yaw accuracy, ensuring stable, high-quality footage in any environment. Ideal for surveillance, inspection, and search and rescue, the camera provides clear optical and thermal imaging for comprehensive monitoring, day or night.
$0.00
Share on:
The Storm Eye-30IE-HT is a dual-lens camera featuring an EO lens with a Sony STARVIS CMOS sensor, offering 1080P resolution, 30x optical zoom, and 12x digital zoom for detailed imaging. The thermal lens has a 50mm focal length, 1280×1024 resolution, and operates in the 8μm–14μm infrared range, enhanced by advanced image processing for excellent nighttime performance. Equipped with a 3-axis gimbal, it provides precise control with ±0.01° pitch/roll and ±0.02° yaw accuracy, ensuring stable, high-quality footage in any environment. Ideal for surveillance, inspection, and search and rescue, the camera provides clear optical and thermal imaging for comprehensive monitoring, day or night.

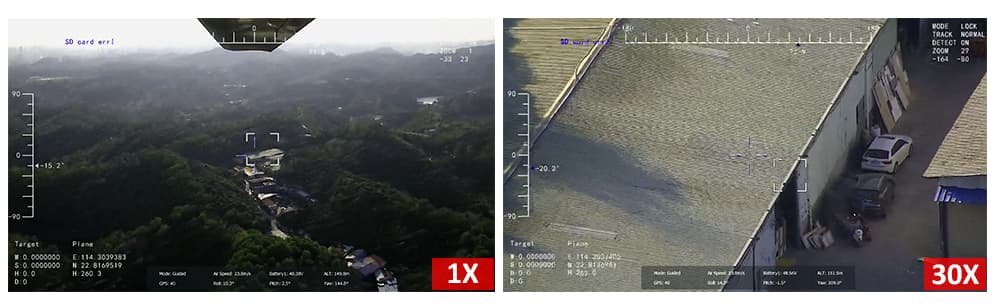

30x optical zoom
The Storm Eye-30IE-HT is equipped with the Sony STARVIS 2 sensor, delivering 1080P 60FPS full HD video streaming, up to 360x zoom capability, and outstanding low-light video performance.

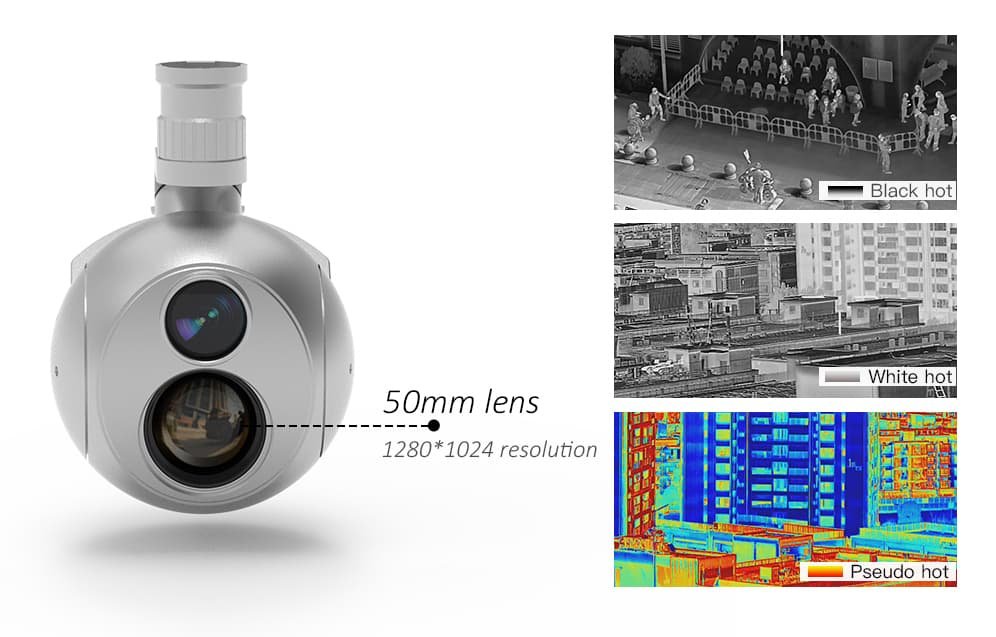

High-Resolution Thermal Imaging
The Storm Eye-30IE-HT features a 50mm focal length and 1280×1024 resolution, delivering exceptional image clarity and high-sensitivity thermal imaging with superior night vision capabilities. Advanced image algorithms, such as Non-Uniformity Correction (NUC) and 3D Noise Reduction (3DNR), ensure sharp, detailed images even in difficult environments, making this camera perfect for nighttime security, surveillance, and search and rescue applications.

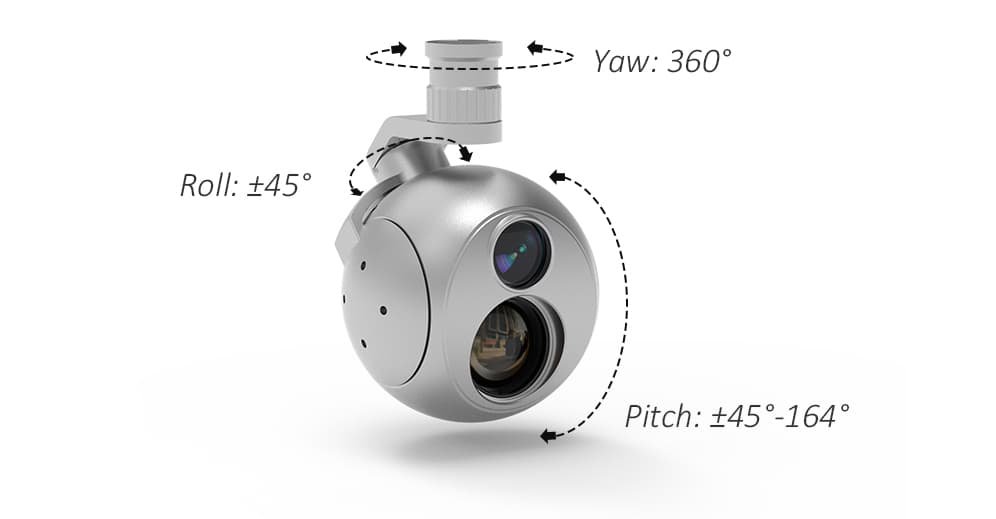

3-axis gimbal control
The 3-axis gimbal offers complete flexibility for targeting and tracking, while minimizing jitter with ±0.01° pitch and roll accuracy, and ±0.02° yaw accuracy, ensuring smooth performance in all applications.

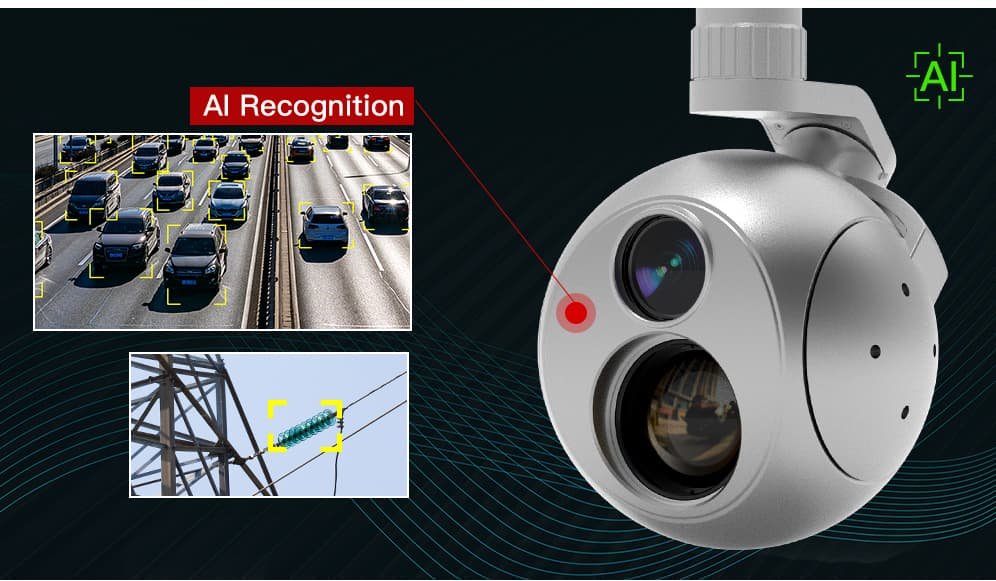

AI Recognition
Automatically detect and identify people and vehicles in real-time. Using advanced machine learning algorithms, it enhances the camera’s ability to track moving targets with high precision, making it ideal for surveillance, search and rescue, and security monitoring. This intelligent feature allows for continuous, autonomous tracking, ensuring that no target is overlooked.

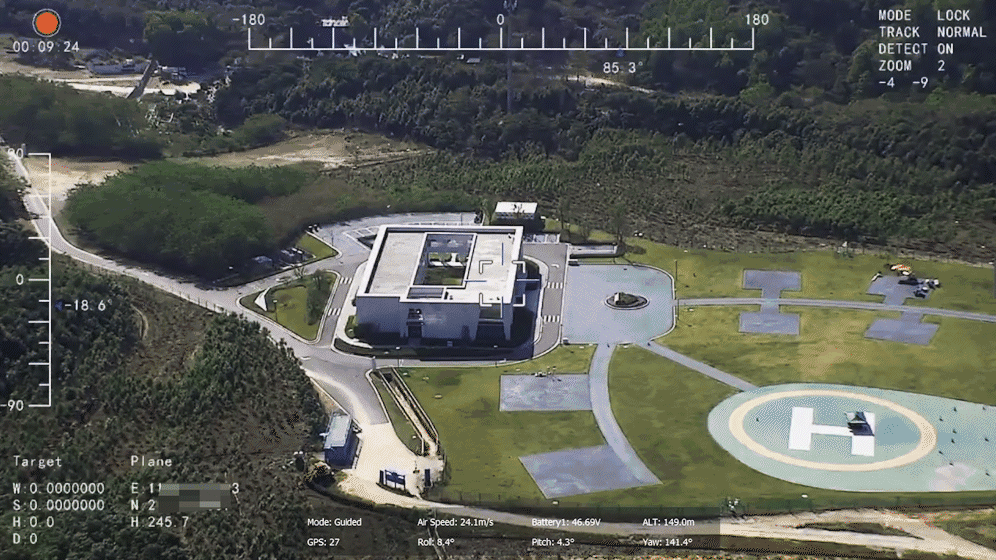

Target tracking
Thanks to the high resolution of the thermal imager and advanced algorithms, the Storm Eye-30IE-HT automatically follows and focuses on moving targets, ensuring continuous monitoring without manual adjustments. This functionality improves operational efficiency by keeping the target in focus, even during high-speed movements.

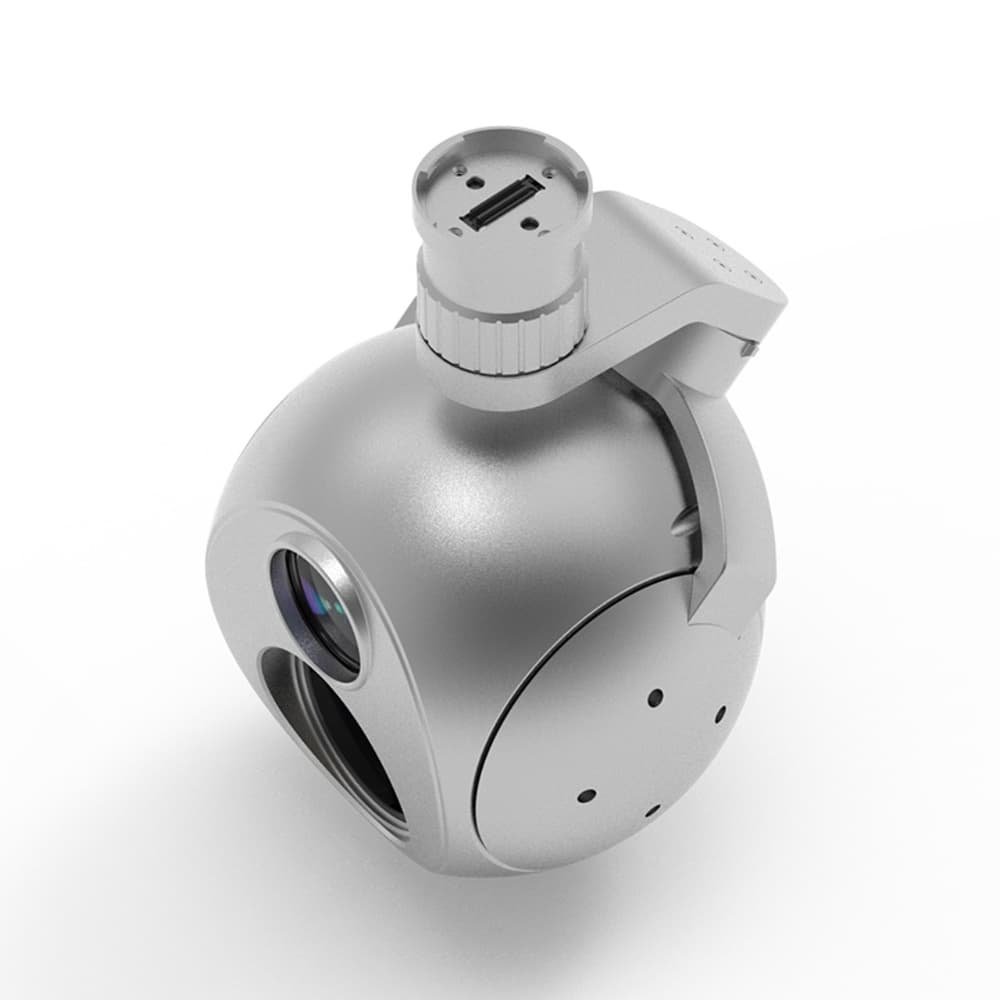

Fast deploy and simple gimbal control
The 3-axis EO/IR drone gimbal features the YDPORT quick attach and release mechanism, making installation fast and easy. It also supports S.bus, TTL serial port, and Ethernet connections. With the YDlink gimbal control software, operating the gimbal is straightforward and user-friendly.
MAVLINK compatible
The Storm Eye-30IE-HT drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration easy and convenient.

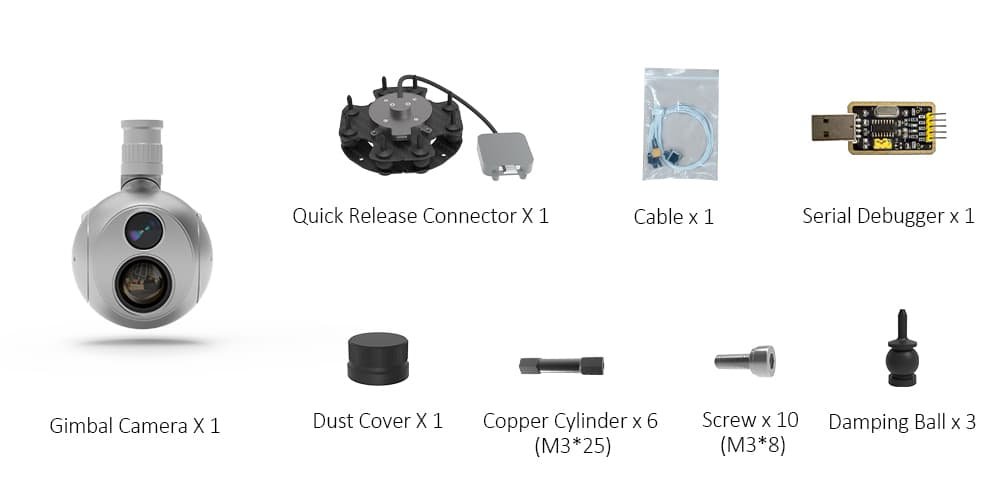

Packing list
| Gimbal parameters | |
| AI recognition | General vehicles, human (Target recognition is trainable) |
| Target tracking | Support |
| Input voltage | 12V |
| Photo format | JPG(1920*1080) |
| Rotation range | Pitch：+45° ~ -164° Roll：±45° Yaw: Unlimited |
| Angle jitter | Pitch and Roll：±0.01° Yaw：±0.02° |
| Control interface | S.Bus, Serial commands and software control via Ethernet |
| Working current | Static current: 650mA(@12V) |
| Dynamic current: 850mA(@12V) | |
| Local storage | TF card(up to 128G、Type 10, FAT32 or ex FAT format) |
| Mechanical characteristic | |
| Total weight (gimbal and camera) | 1.48kg±5g |
| Operating temperature | -10° ~ +50° |
| Dimensions | 150*150.3*220.8mm |
| mounting | Screw-type quick disassembly structure |
| 30x zoom camera | |
| sensor | 1/2.8 inch SNOY STARVIS CMOS sensor(2.13 million pixels） |
| Video output | 1080P/720P 30fps Ethernet |
| Video recording | 1080P/720P 30fps MP4 |
| Lens focal length range | 30x Optical zoom, f= 4.3 mm – 129 mm |
| Digital zoom | 12x (360x Combined with optical zoom) |
| Horizontal field of view（HFOV） (Short focal length to long focal length) | Image distortion correction off : Approx. 64.0° to 2.4° |
| Image distortion correction on : Approx. 61.5° to 2.3° | |
| Image signal-to-noise ratio(ISNR) | 50 dB（weighted） |
| Auto Focus Speed | Infinity – Near：1.4 s |
| Minimum illumination (50%, High Sensitivity Mode on) | ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (Shutter Speed: 1/4 s or 1/3 s) |
| ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (Shutter Speed: 1/4 s or 1/3 s, 30%） | |
| ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (Shutter Speed: 1/4 s or 1/3 s) | |
| ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s） | |
| Minimum optical focusing distance (Short focal length to long focal length) | 10 mm – 1200 mm |
| Aperture range | F1.6 （wide-angle） ~ F4.7（long-focus） |
| Thermal imager | |
| Lens | 50mm |
| Operating band | Uncooled vanadium oxide long wave （8μm~14μm） |
| Pixels | 1280 x 1024 |
| Pixel size | 12μm |
| Encapsulation method | ceramic encapsulation |
| NETD | ≤30mk@f1.0/25℃ |
| Operating band | 8～14um |
| Frame frequency | 25HZ/30Hz/50Hz |
| Digital video format | RAW/YUV/Matrix-Temp |
| Image algorithm | Non-uniformity correction(NUC)/3D Image denoising(3DNR)/2D Noise Reduction (DNS)/ Wide Dynamic Range |
| Compression (DRC)/ Edge Enhancement (EE) | |
| pseudo-color | 10 kinds (White heat/Lava/Iron red/Hot iron/Medical/Arctic/Rainbow 1/ Rainbow 2/ Tracing red/Black heat) |
| thermal camera operating temperature range | -10℃～70℃ |
| Temperature measurement range | First range：-20℃～150℃ |
| Second range：0~550℃ | |
| Temperature measurement accuracy | ±2℃ or ±2% (whichever is greater)@23±3℃ |
| ±5℃ or ±5% (whichever is greater)@-10℃~50℃ | |
| Temperature measuring distance | 14mm/19mm Lens: 5mm |
| 25mm Lens: 10m | |
| Area temperature measurement | Support temperature measurement in any area, Output the maximum, minimum and average valuesof the area |
| Spot temperature measurement | Support |
| Isotherm | support |
| Full screen temperature measurement | Support temperature matrix output |
| Steady-state power consumption | ＜1W/5V @25HZ 23±3℃（Without expansion components） |
| Operating temperature | -40℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 5%~95%，No condensation |
| Vibration | Sinusoidal vibration, frequency：10HZ～150HZ～10HZ，Peak：0.15mm，Axis: X axis, durability：8min/axis，Number of cycles: 2 times |
| Shock | Half Sine Pulse, 30g/11ms, Impact direction X axis 3 times |
| Burn prevention | Look directly at the sun for 30 seconds, and it will recover within 24 hours. |
| Focal length | Fixed focus without thermal: 14mm/19mm/25mm/35mm/50mm/100mm |
| Electric focus: 75mm/100mm/150mm | |
| Continuous Zoom: 28~90mm/30~180mm | |
| Fixed focus without thermal: 14mm/19mm/25mm/ | |
