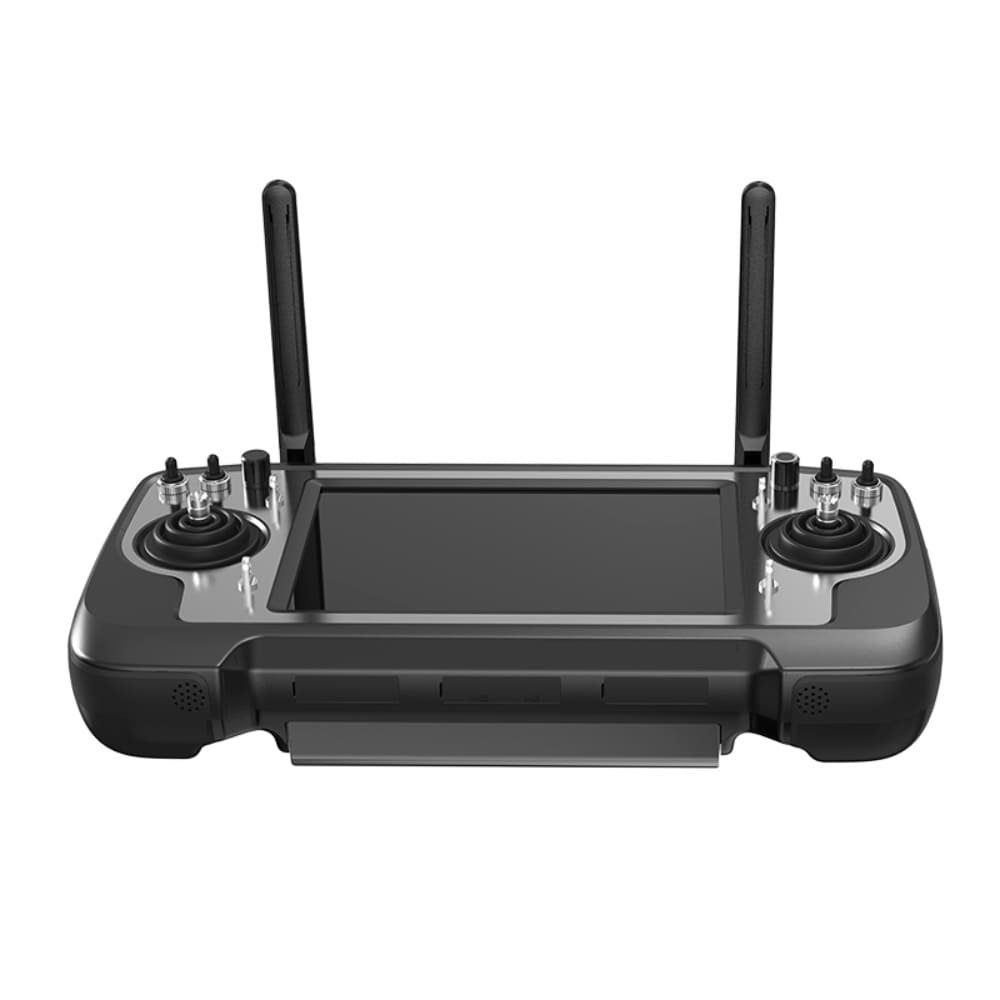

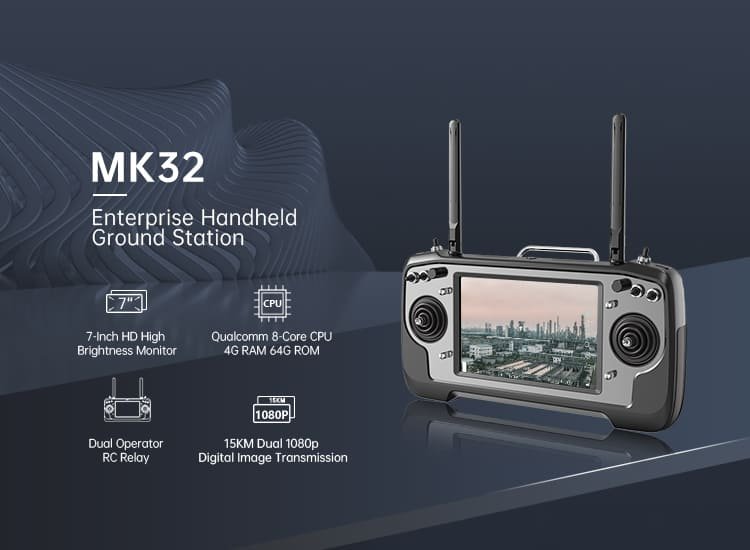

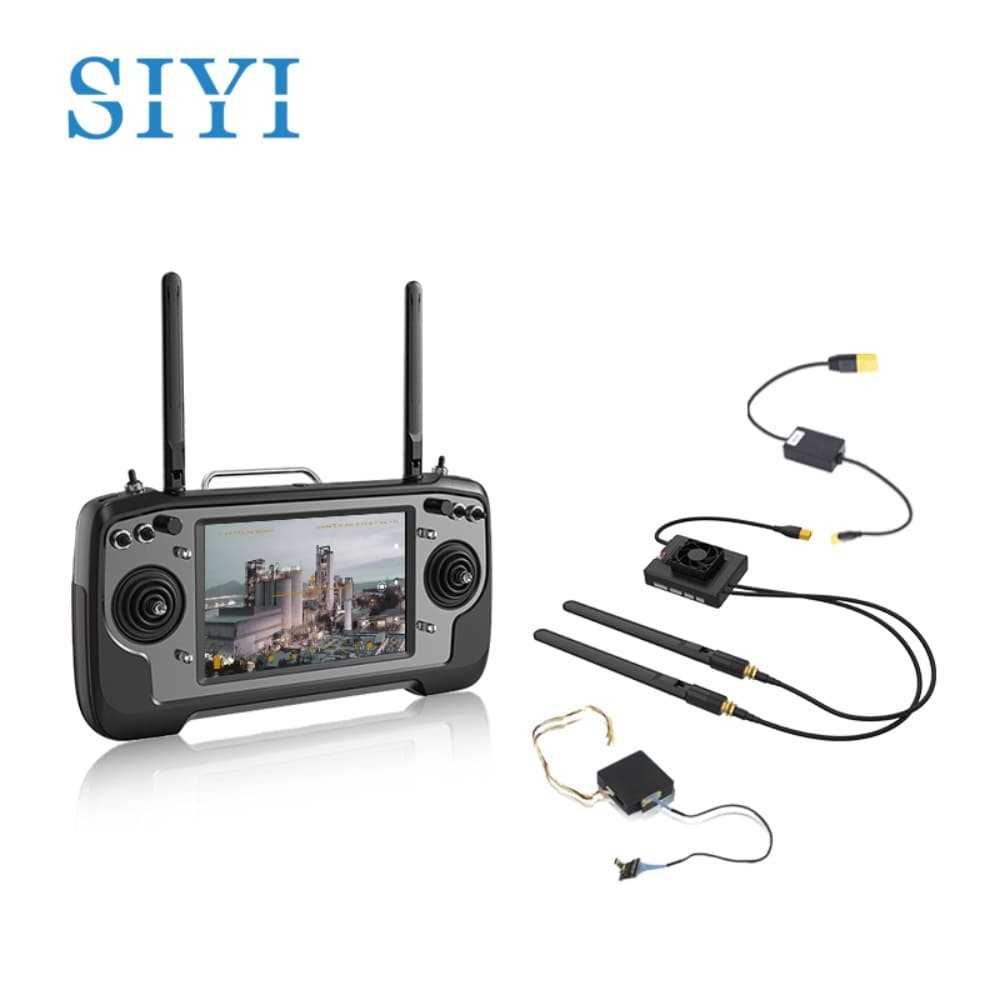

SIYI MK32 UAV UGV USV 15KM Range Controller
- 7″ 1000cd/m2 HD Monitor
- Dual HD Digital Image Transmission
- 15KM Range
- 4G RAM, 64GB ROM
- QualComm 8-Core CPU
- H.264/H.265 Decoding
- Long Range Antenna
- 3.5H PD Fast Charging
- 10H Battery Life

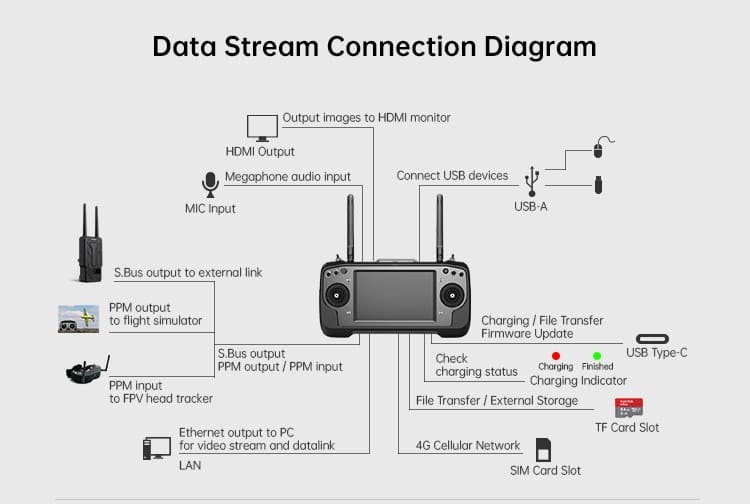

- Ground HDMI Output
- Ground Ethernet Output
- Ground RC Input and Output
- Ground Audio Input
Price range: $516.00 through $571.00
Share on:
| Overall | |
| Max Transmission Range | 15 km (Unobstructed, free of interference) |
| Channels | 16 physical channels |
| 16 communication channels | |
| Datalink Compatible Flight Controllers | PX4 / Ardupilot Open-source Flight Controllers: SIYI N7, etc. |
| Agriculture Flight Controllers: | |
| BOYING Paladin V2 | |
| JIYI K++ V2 / K3A Pro | |
| VK V7AG / V9AG | |
| Video Stream Compatible Android GCS | SIYI Original App: |
| SIYI FPV | |
| Open-source GCS: | |
| QGroundControl | |
| Mission Planner | |
| Agriculture GCS: | |
| BOYING Agriculture | |
| JIYI Agri-Assistant / IFLY | |
| VK Agriculture | |
| Video Stream Compatible Windows GCS | Open-source GCS: |
| QGroundControl | |
| Mission Planner (H264 only) | |
| Remote Controller (Ground Unit) | |

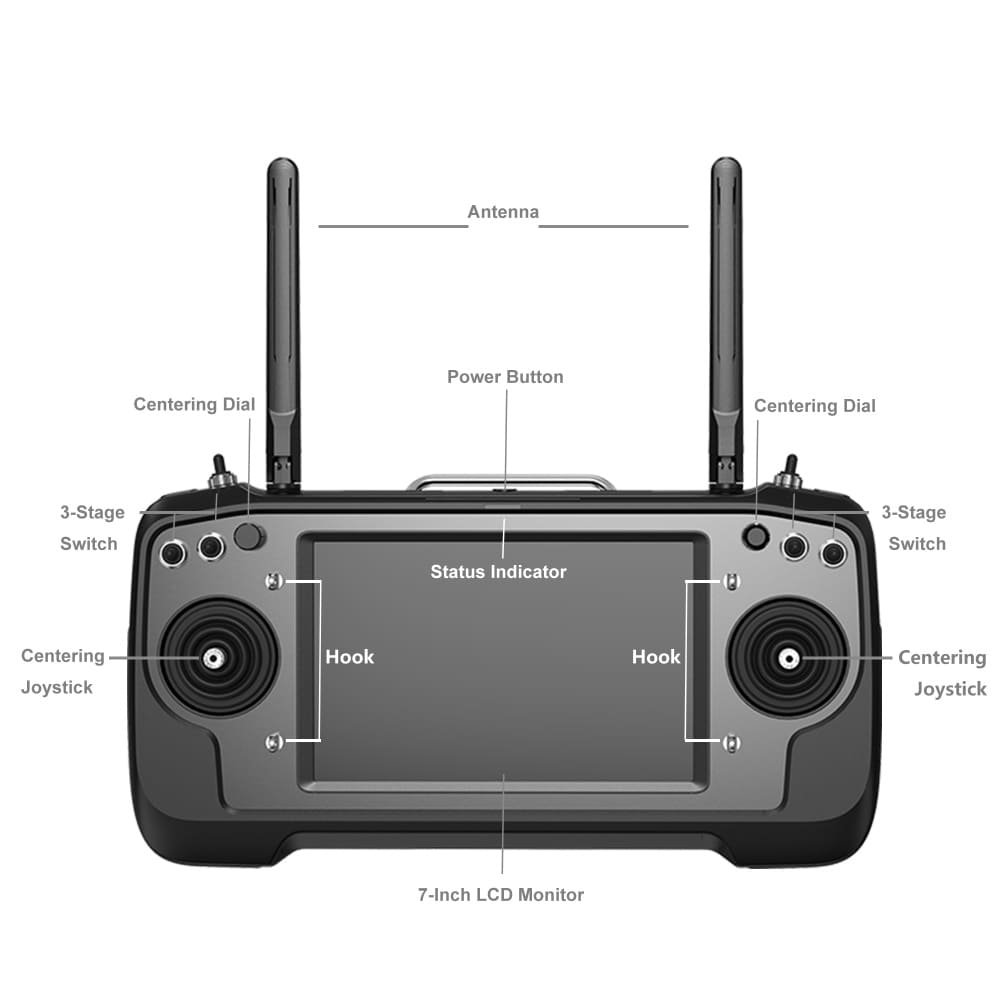

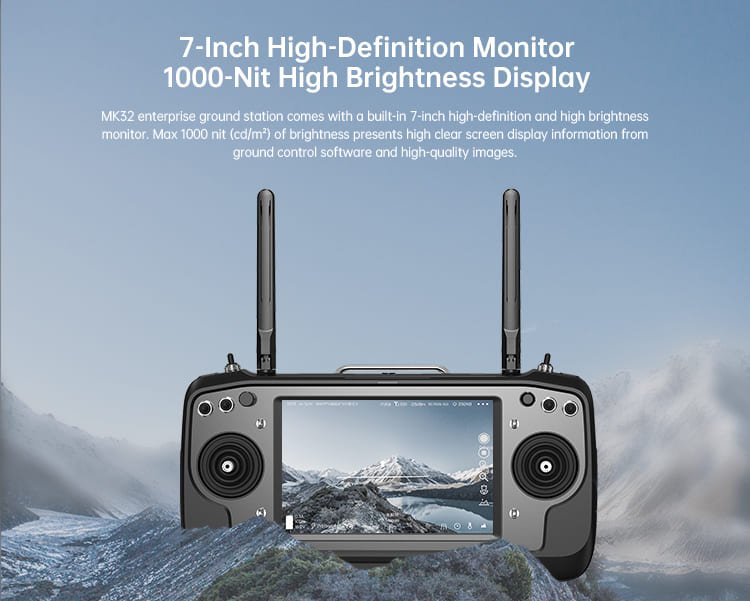

| Monitor | 7-inch High Definition and High Brightness LCD Touchscreen |

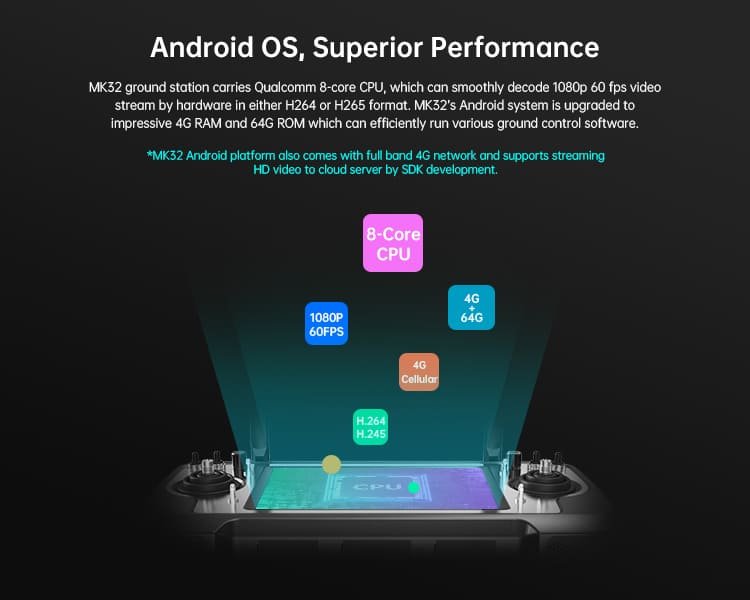

| System | Android 9.0 OS |
| 4G RAM, 64G ROM | |
| Battery Capacity & Type | 10200 mAh 7.4V 2S Li-ion |
| 75.48 Wh | |
| Fast Charging Protocol | PD 30W |
| Charging Time | 3.5 hours (PD 30W) |
| Battery Life | 10 hours |
| Antenna Gain | Omni Antenna: 5 dBi |
| Long Range Antenna: 11 dBi | |
| Lollipop Antenna: 5 dBi (optional) | |

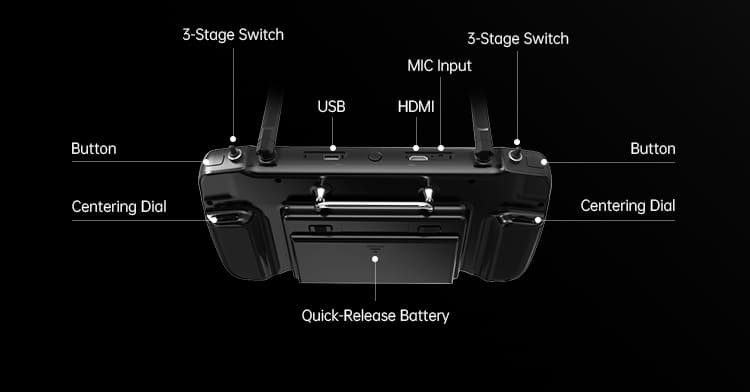

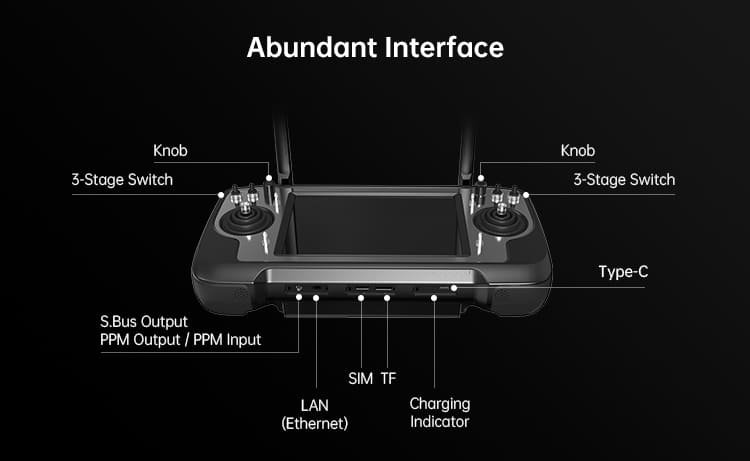

| Interface & Ports | Video Output: Standard HDMI |
| External Device (Mouse, USB Disk): USB-A | |
| Charging: Type-C | |
| Firmware Upgrade: Type-C | |
| File Transfer: Type-C / USB-A | |
| Mobile Network: SIM Card Slot | |
| External Storage: TF Card Slot / USB-A | |
| Communication Port: LAN (Ethernet) | |
| RC Signal Input / Output: Bottom Audio Port | |
| Dimensions (Antenna Overlapped) | 308 x 148 x 72 mm |
| Weight (Antenna Overlapped) | 1440 g |
| Waterproof Level | IP4X |
| Working Temperature | -10℃ ~ 50℃ |

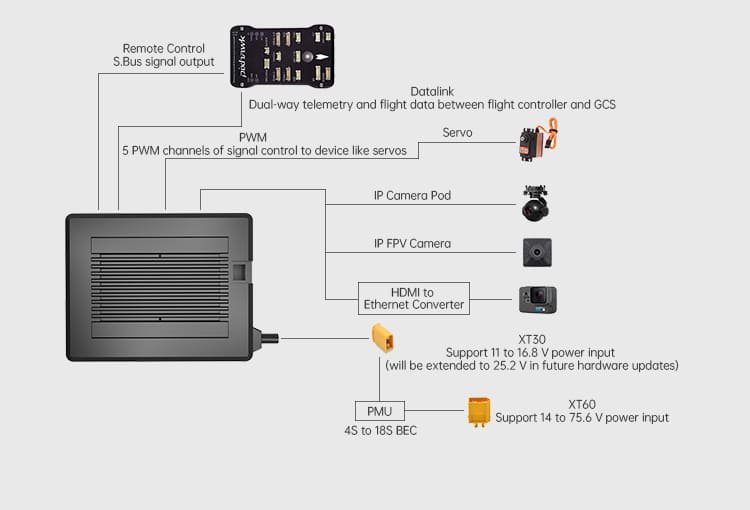

| Air Unit | |
| Signal Output | 16 channels of SBUS |
| 5 channels of PWM | |
| Interface & Ports | S.Bus RC Signal Output: SBUS (GH1.25 3-Pin) |
| Datalink (to FC): UART (GH1.25 4-Pin) | |
| PWM Channel 1 to 5: PWM (GH1.25 6-Pin) | |
| Video Input / Network Communication: LAN (GH1.25 8-Pin) | |
| Firmware Upgrade: Type-C | |
| Antenna Gain | Omni Antenna: 5 dBi |
| Lollipop Antenna: 5 dBi (optional) | |
| Working Voltage | HM30 Air Unit: |
| 3S ~ 6S / 12.6 ~ 25.2 V | |
| 4S to 18S Power Module: | |
| 16.8 ~ 75.6 V | |
| Power Consumption | HM30 Air Unit: |
| – Average: 2.8 W | |
| – Summit: 12 W | |
| HM30 Air Unit + 4S to 18S Power Module: | |
| – Average: 3.2 W | |
| – Summit: 12 W | |
| Dimensions (Antenna Excluded) | 70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) | HM30 Air Unit: 74 g |
| HM30 Air Unit + 4S to 18S Power Module:109 g | |
| Working Temperature | -10℃ ~ 50℃ |

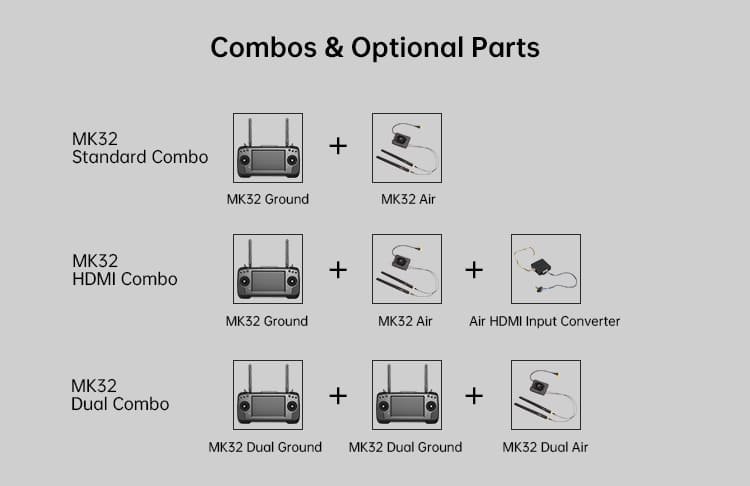

| Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo) | |
| Video Input | Micro HDMI |
| Video Output | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution | 1080p (1920 × 1080) @ 30 fps |
| 720p (1080 × 720) @ 30 fps | |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Recording Format | H265 |
| Supported TF / SD Card Type | MicroSD Class10, Less than 32GB |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
| Working Temperature | -10℃ ~ 50℃ |

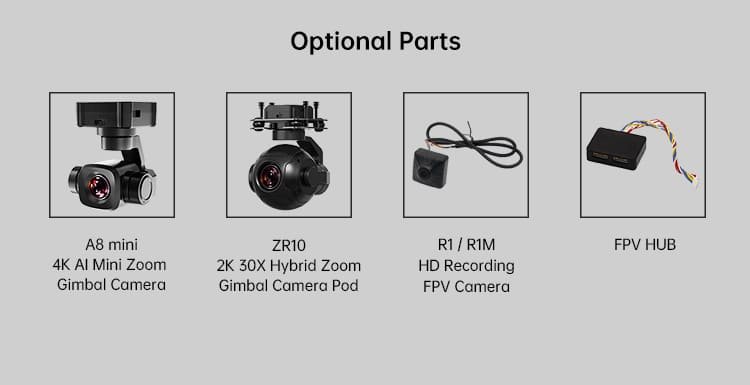

| R1M Recording FPV Camera (Optional, packed with both HM30 combos) | |
| Video Output Port | Ethernet |
| Image Sensor | 1/2.9 Inch, 2 MP |
| FOV | Diagonal: 90° |
| Horizontal: 80° | |
| Working Voltage | 12 V |
| Power Consumption | 2.5 W |
| Video Recording Resolution | 1080p (1920*1080) @ 30 fps |
| 720p (1280*720) @ 30 fps | |
| Recording Bitrate | 12 Mbps |
| Video Recording Format | MP4 |
| Supported TF / SD Card Type | MicroSD Class10 |
| Less than 32GB | |
| File Storage Format | FAT32 |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Working Temperature | -10℃ ~ 50℃ |
