| Overall | |
| Max Thrust | 6.5 kg / axis |
| Recommended Take-off Weight | 2 to 2.5 kg / axis |
| Recommended Battery | 12~14S LiPo |
| Cable Length | Power Cable: 710 mm |
| Signal Cable: 780 mm | |
| Protection Class | IPX5 |
| Compatible Arm Tube Diameter | 30 mm |
| Product Weight | 429 g |

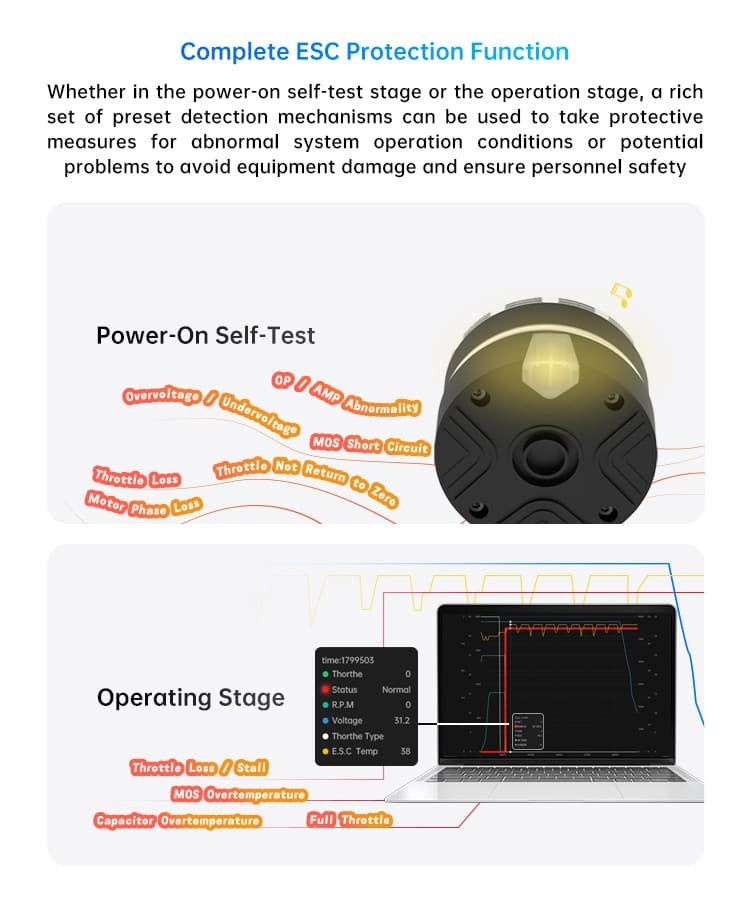

| ESC | |

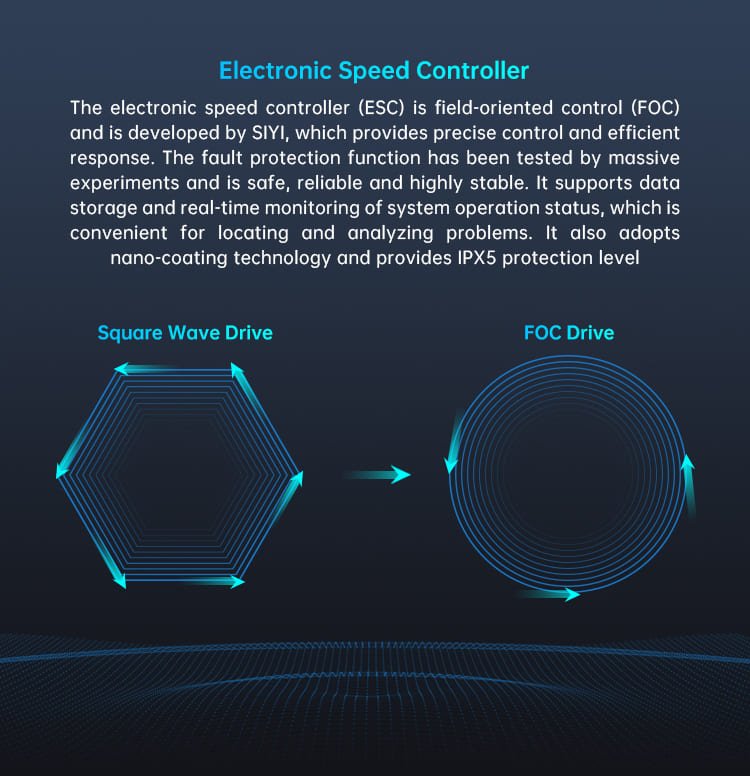

| Model | 55 A FOC |
| PWM Voltage Input | 3.3 / 5 V |
| PWM Pulse Width | 1100 ~ 1940 μs |
| PWM Working Frequency | 50 ~ 500 Hz |
| Max Voltage | 60 V |
| Continuous Current | 23 A |
| Max Current | 55 A |
| Communication Protocol | CAN |
| Firmware Upgrade | Supported |
| Digital Throttle | CAN Throttle |

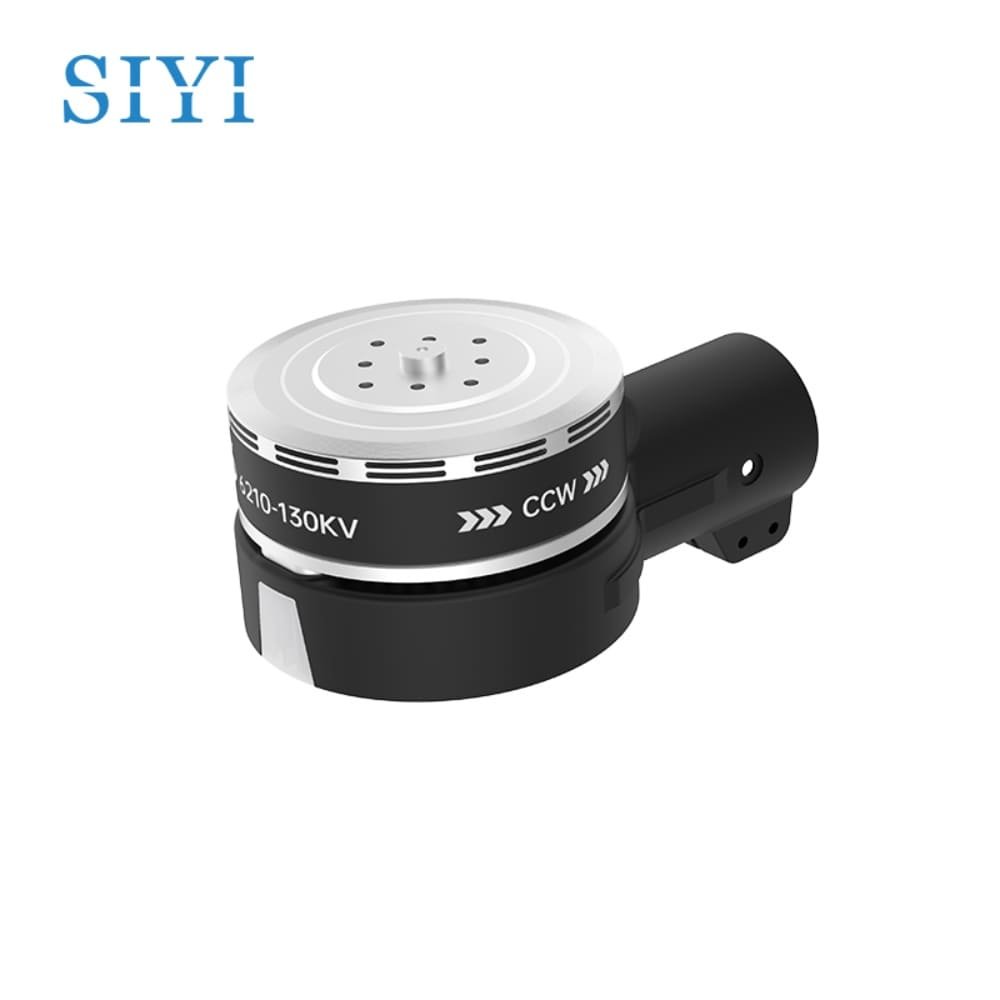

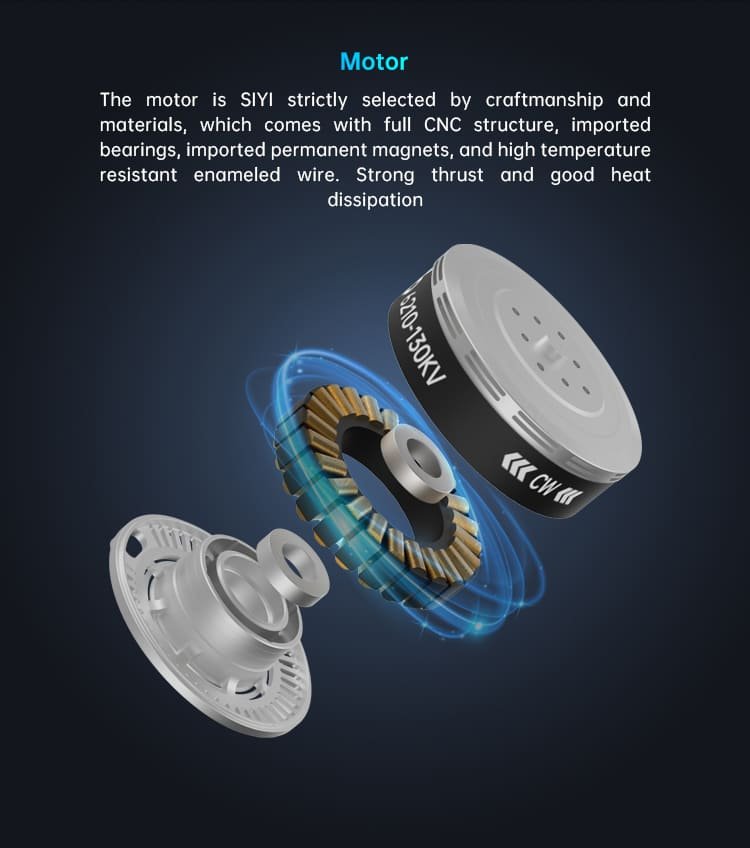

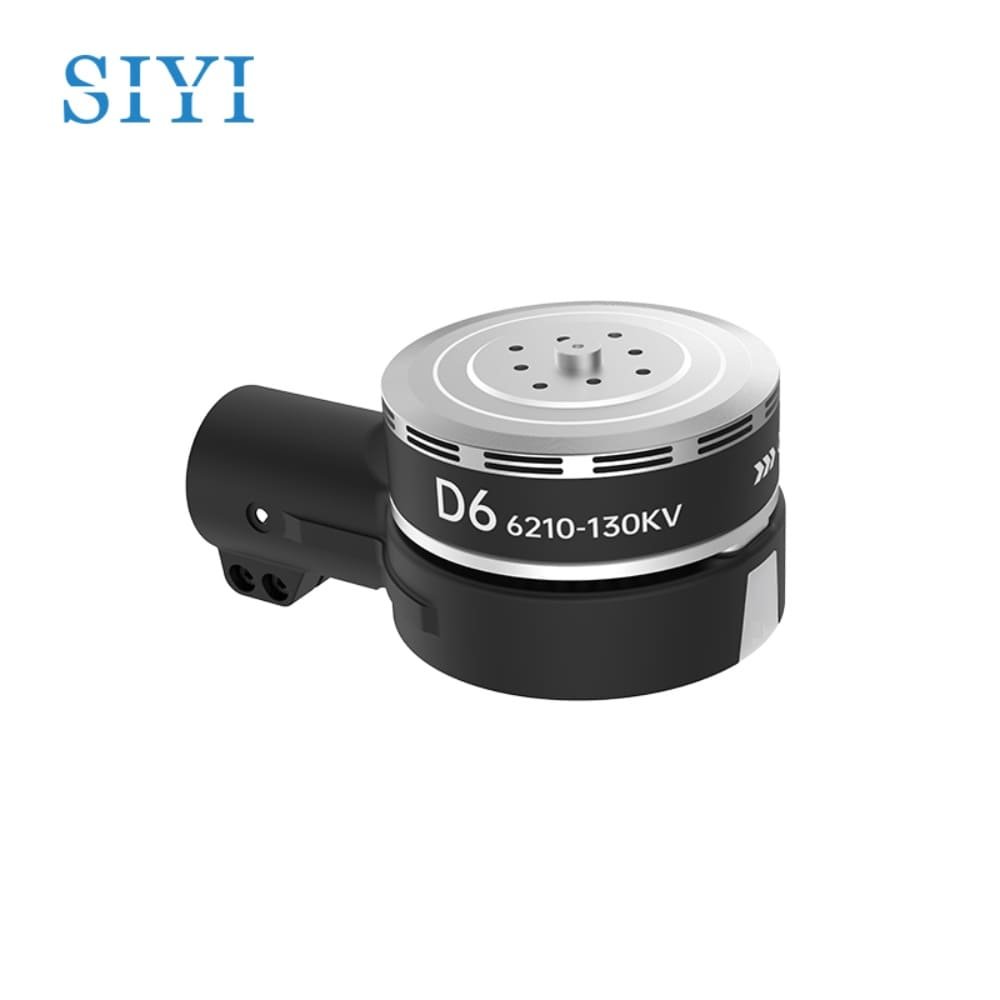

| Motor | |
| KV | 130 KV |
| Motor Size | Φ67.7 * 23.1 mm |
| Poles & Magnets | 24N28P |
| Product Weight | 240 g |

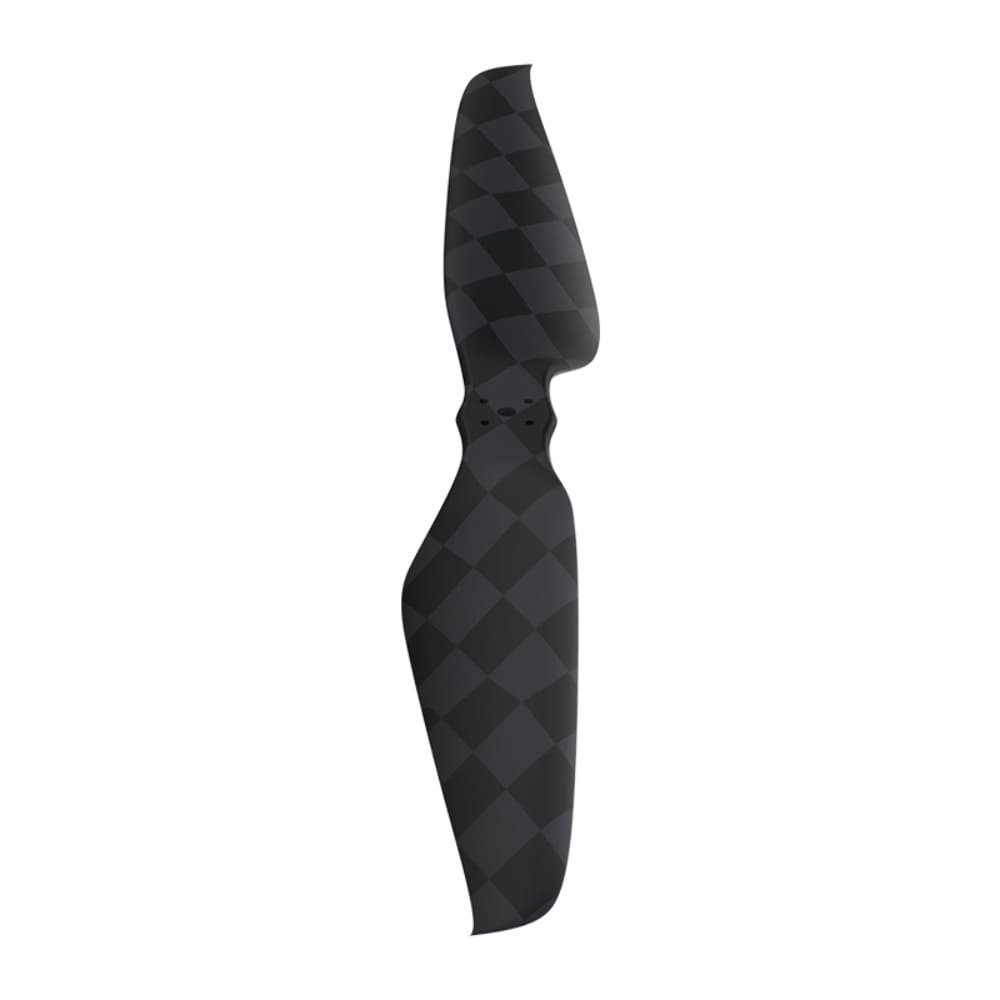

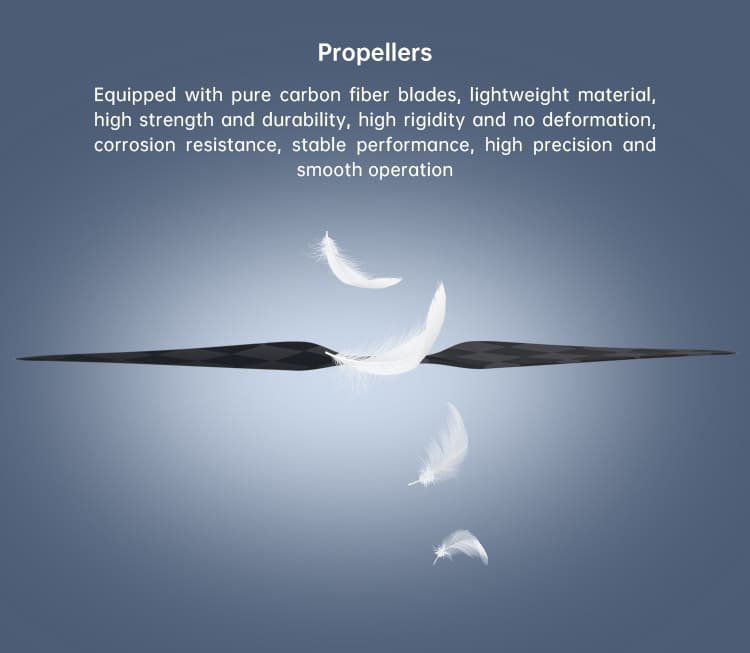

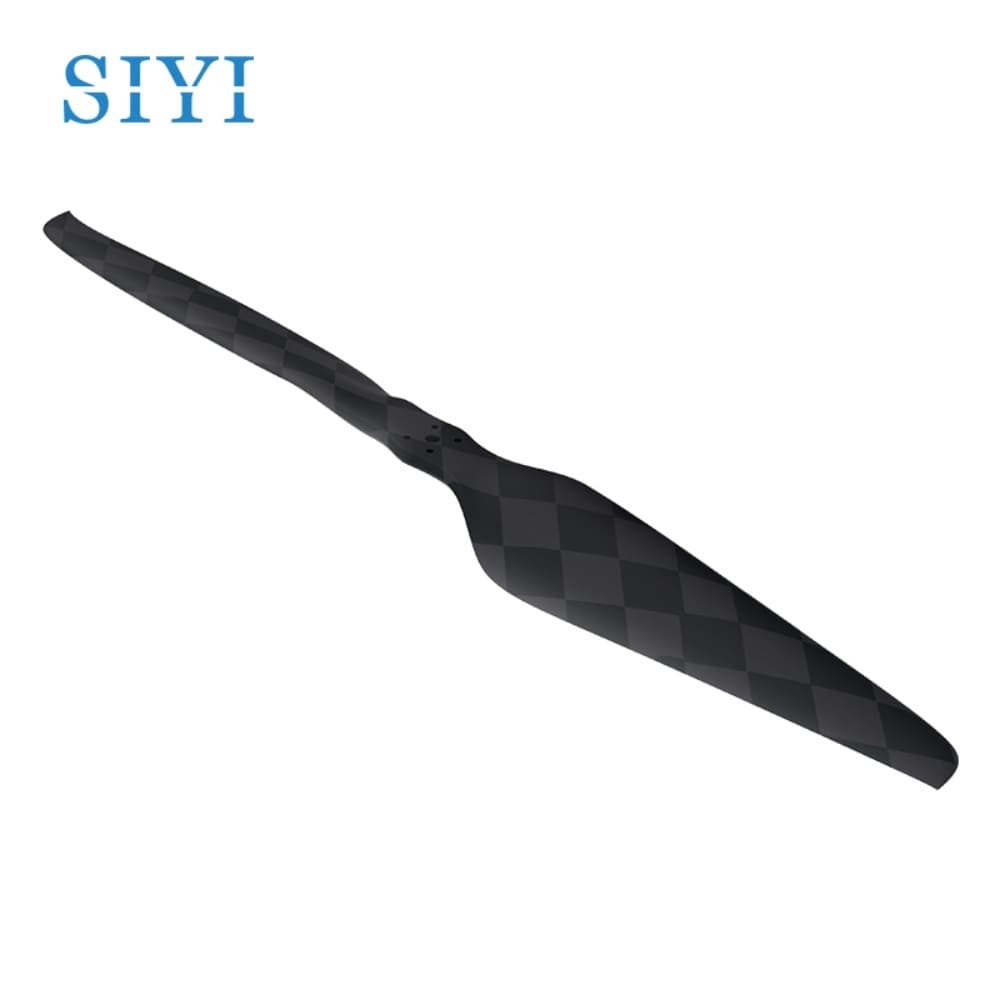

| Propeller (Straight) | |
| Diameter x Pitch | 22 x 7.8 Inch |
| Product Weight | 35.7 g |

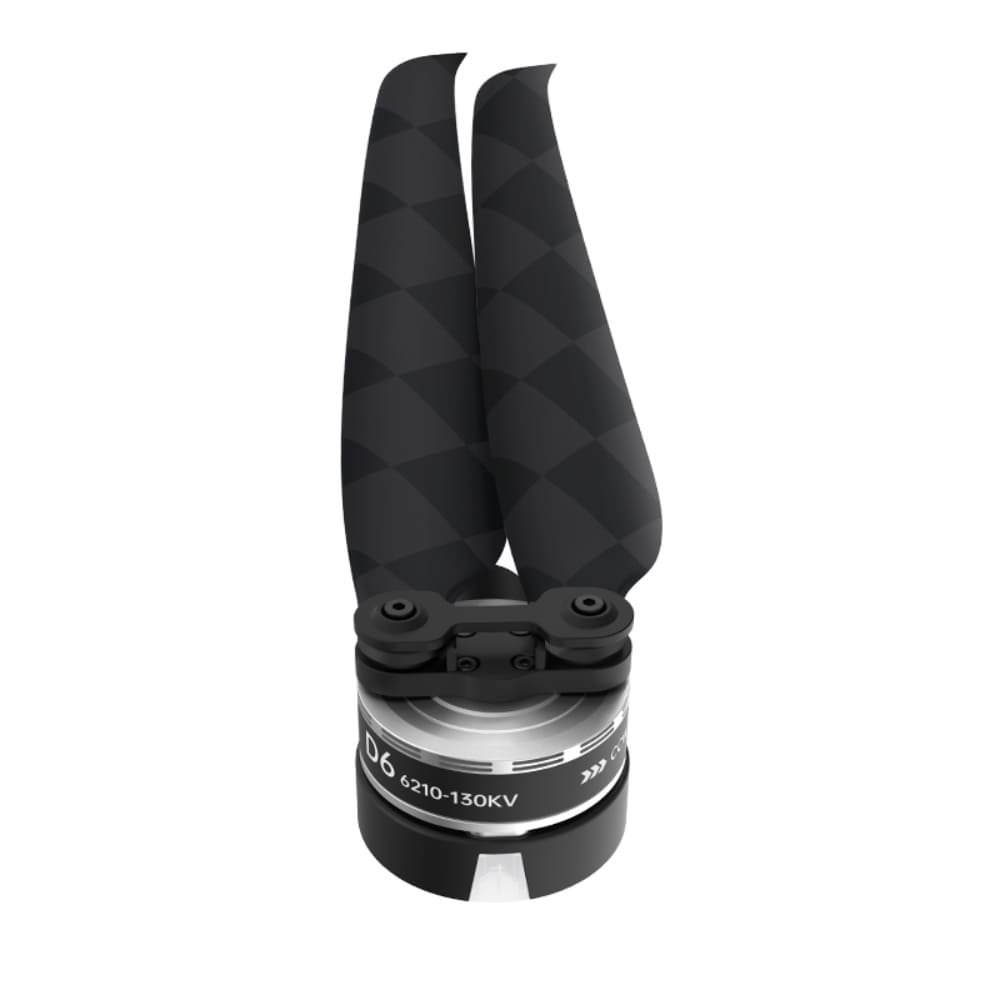

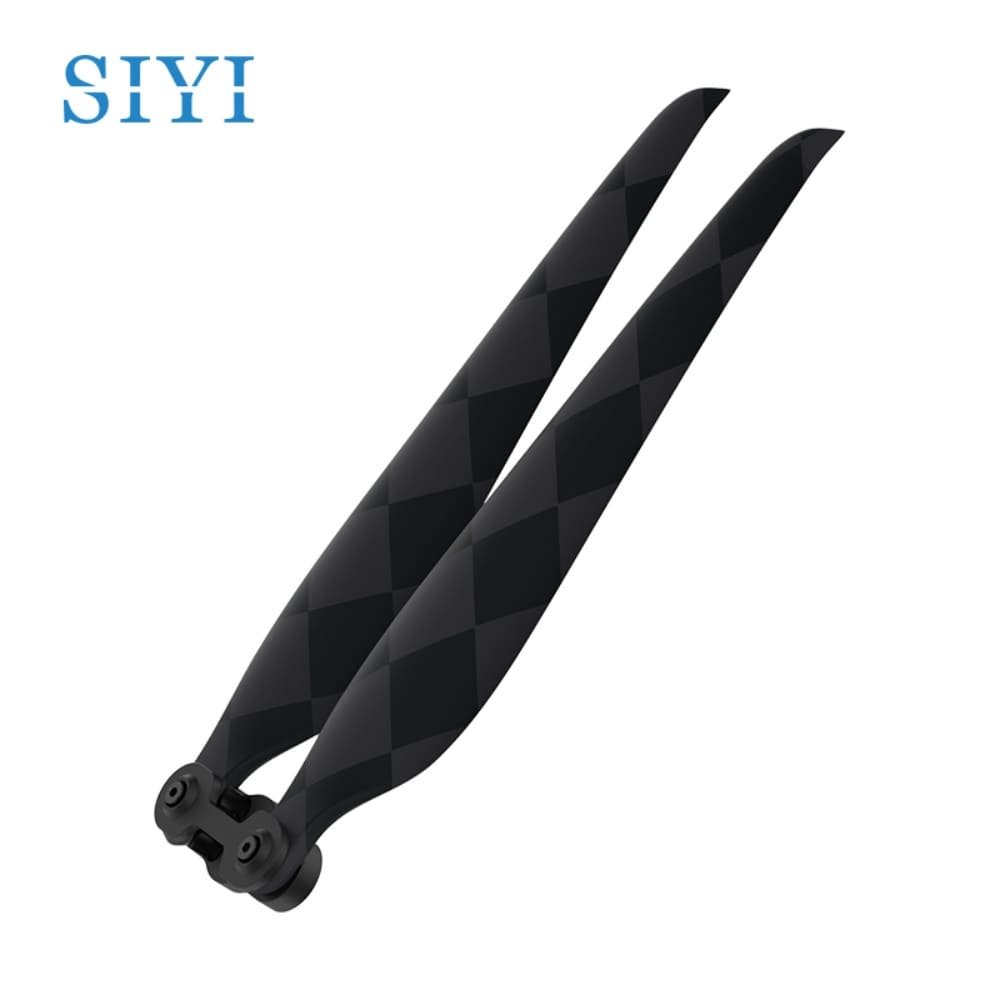

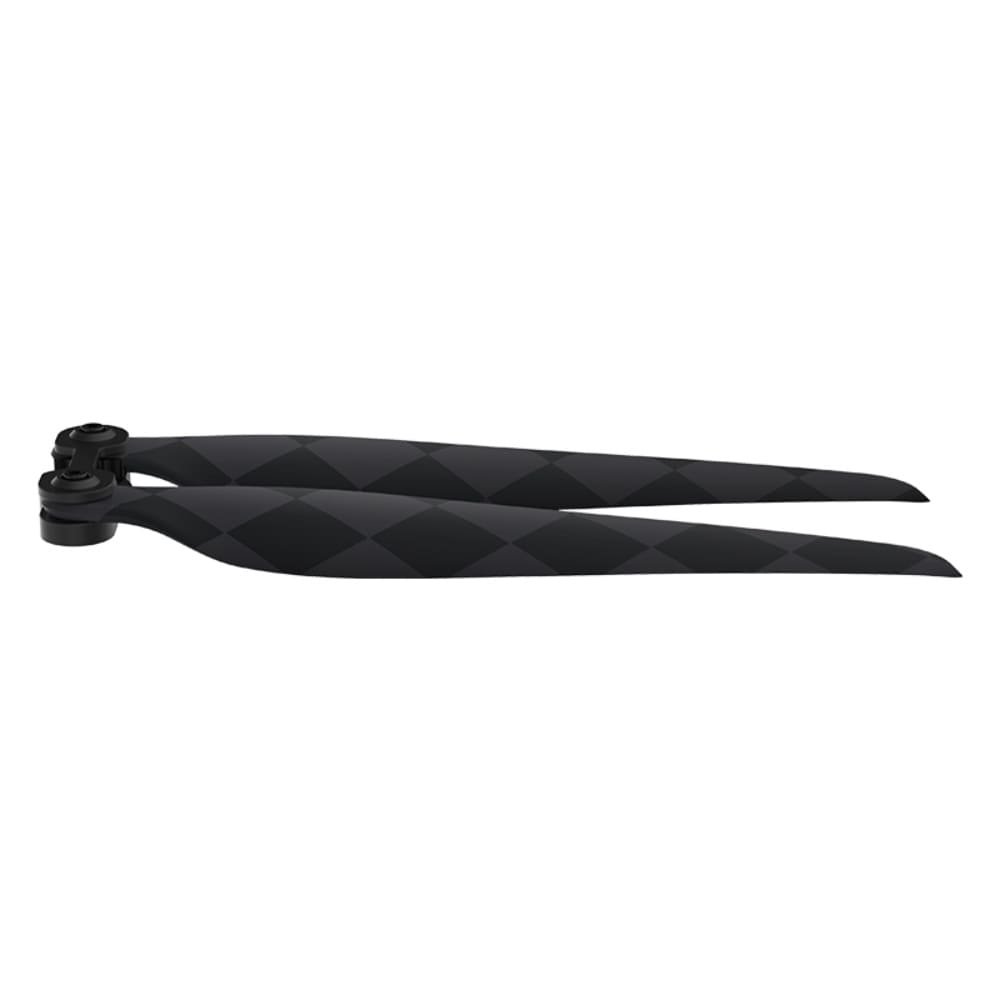

| Propeller (Foldable) | |
| Diameter x Pitch | 22 x 9 Inch |
| Product Weight | 61.2 g |

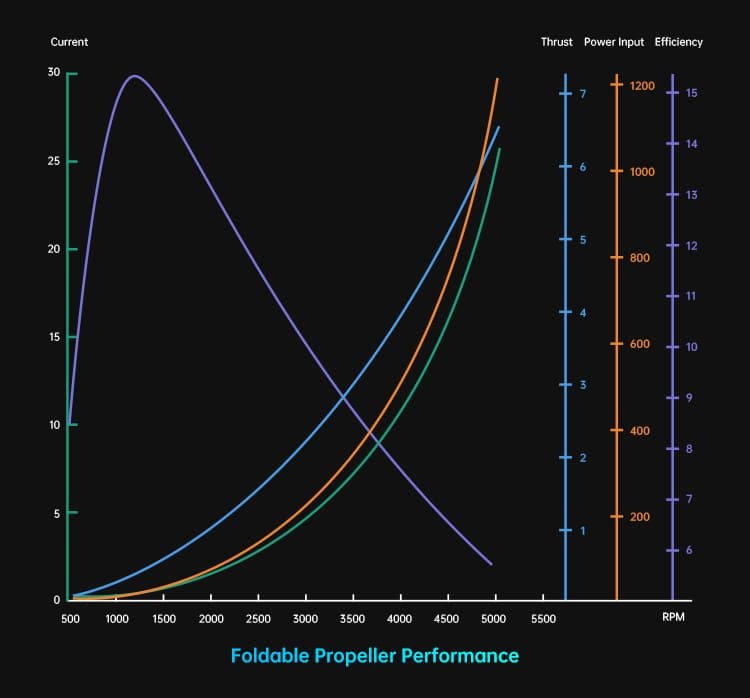

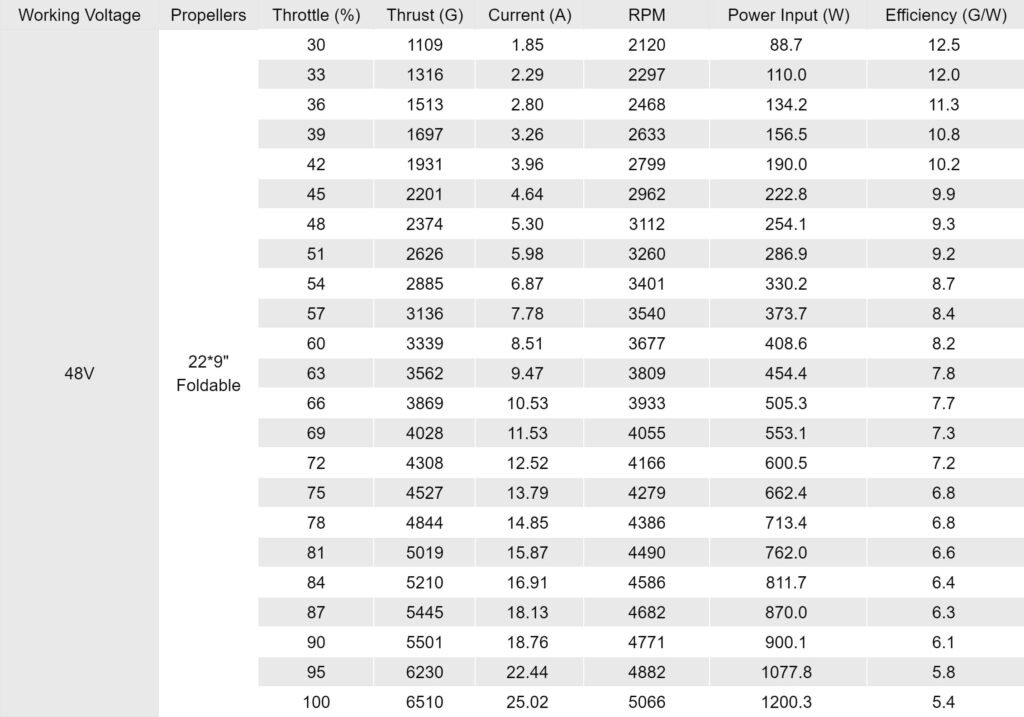

| Foldable Propeller Performance | |
 |
|

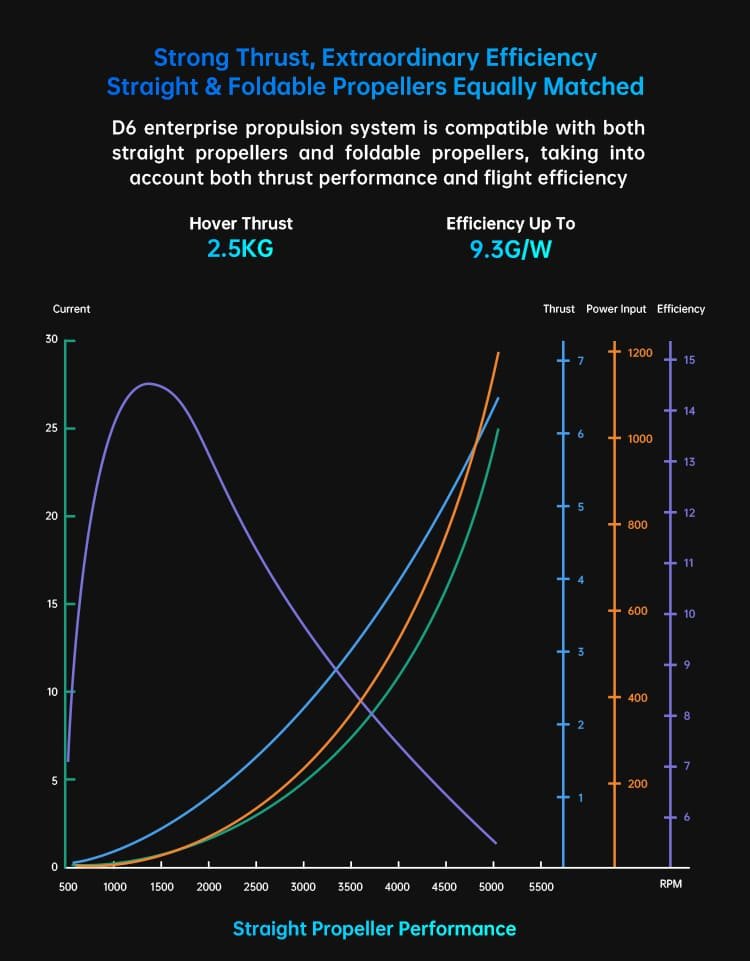

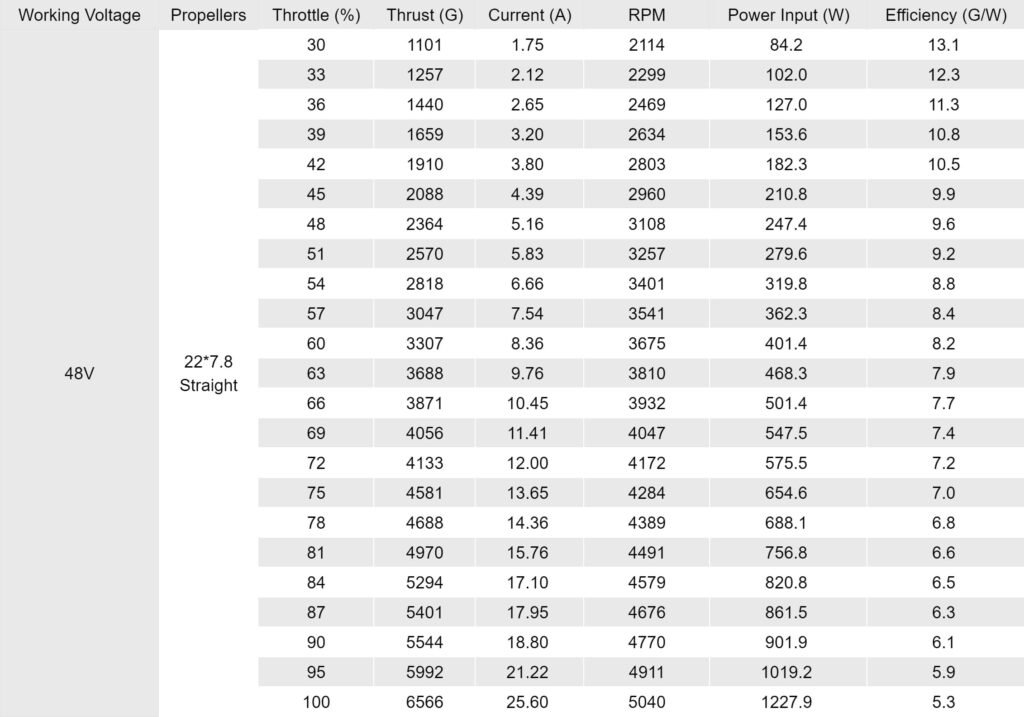

| Straight Propeller Performance | |
 |
|
