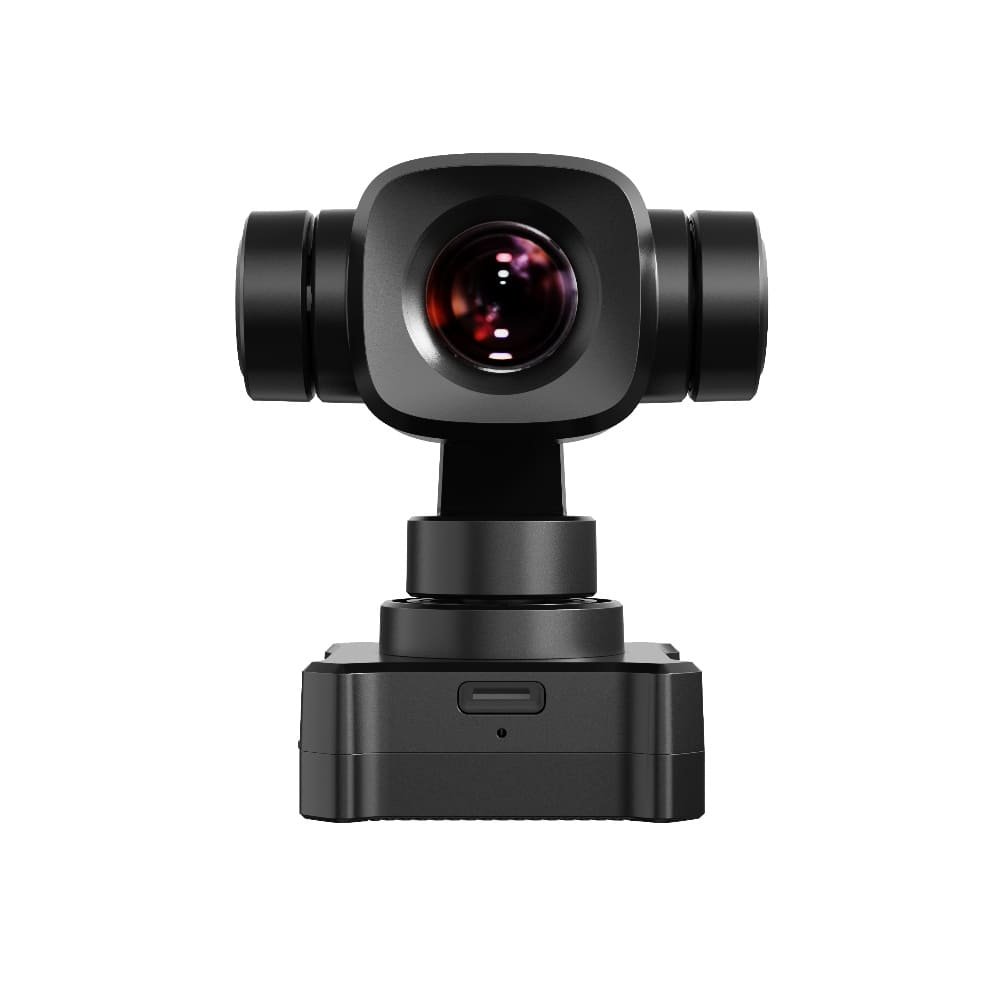

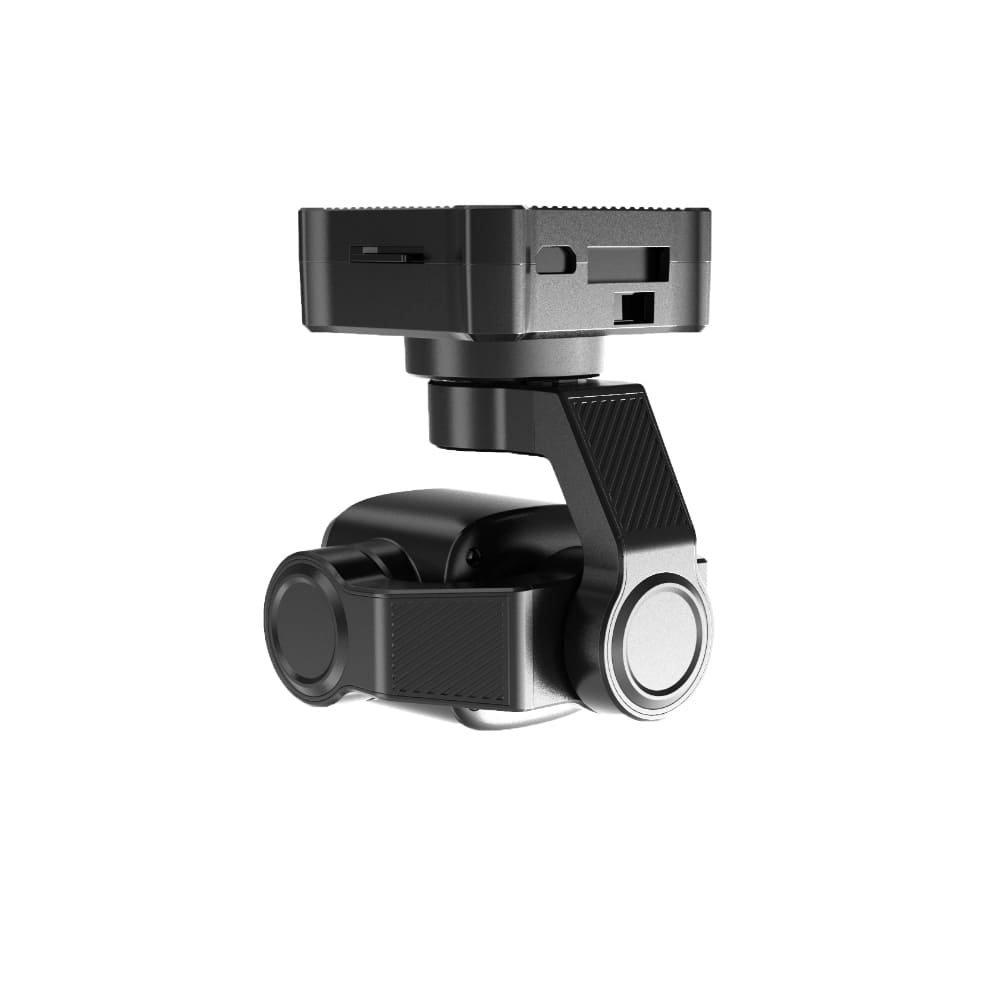

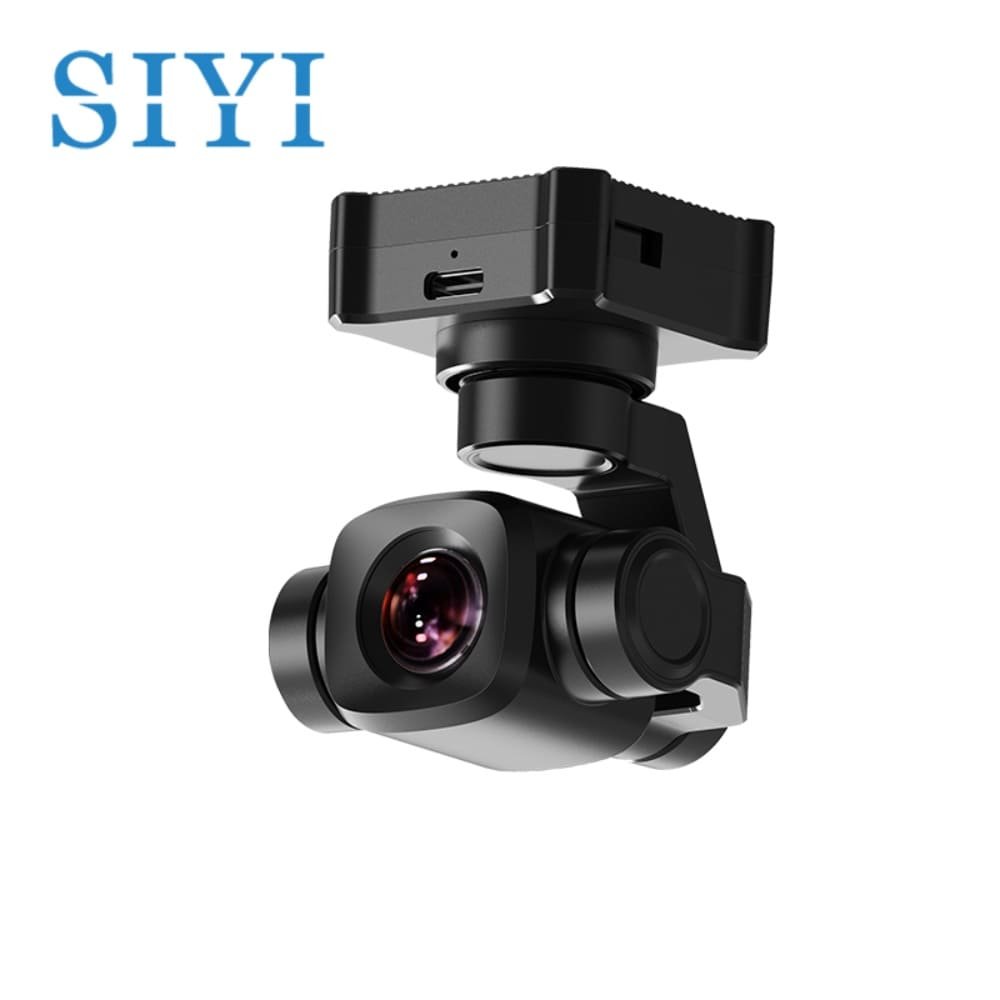

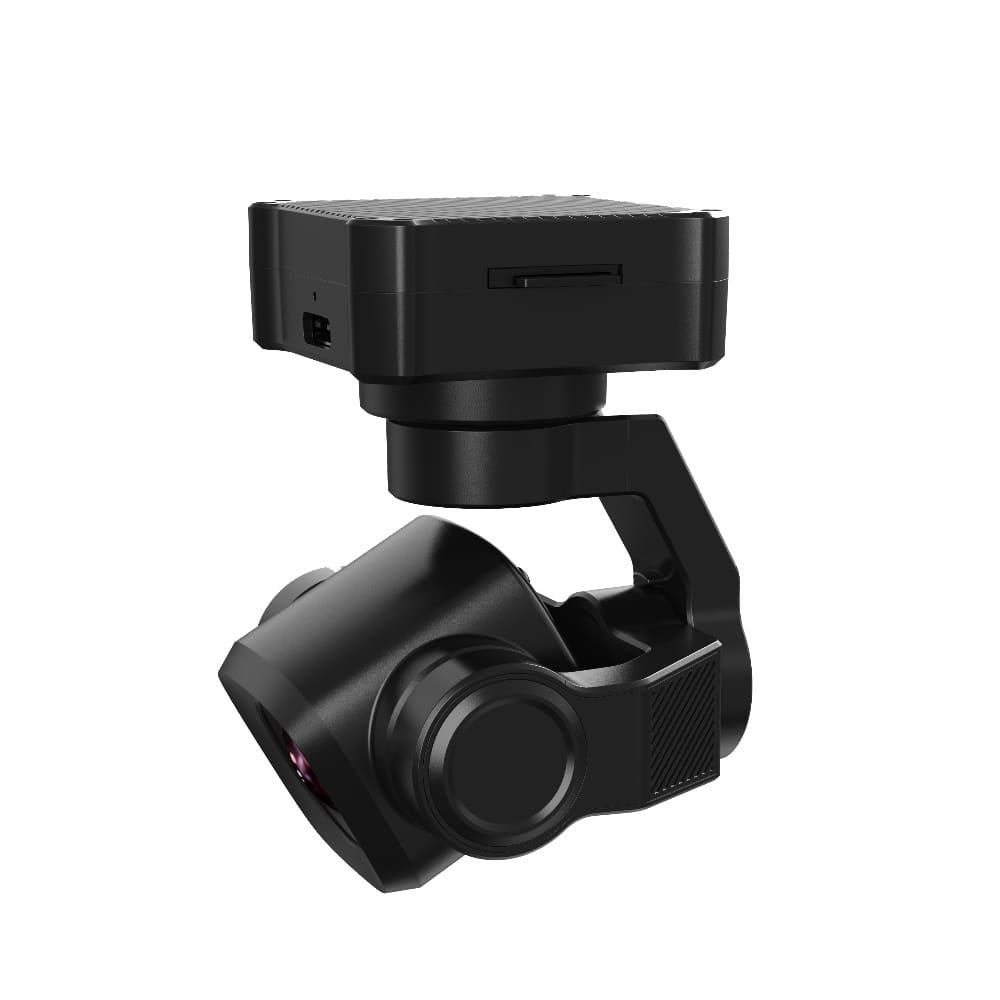

SIYI A8 mini UAV UGV USV RC Planes Gimbal Camera
- 4K Ultra HD Video & Photography
- 8MP 1/1.7-Inch Sony CMOS
- 320-Degree Yaw Axis Rotation
- 6X Digital Zoom

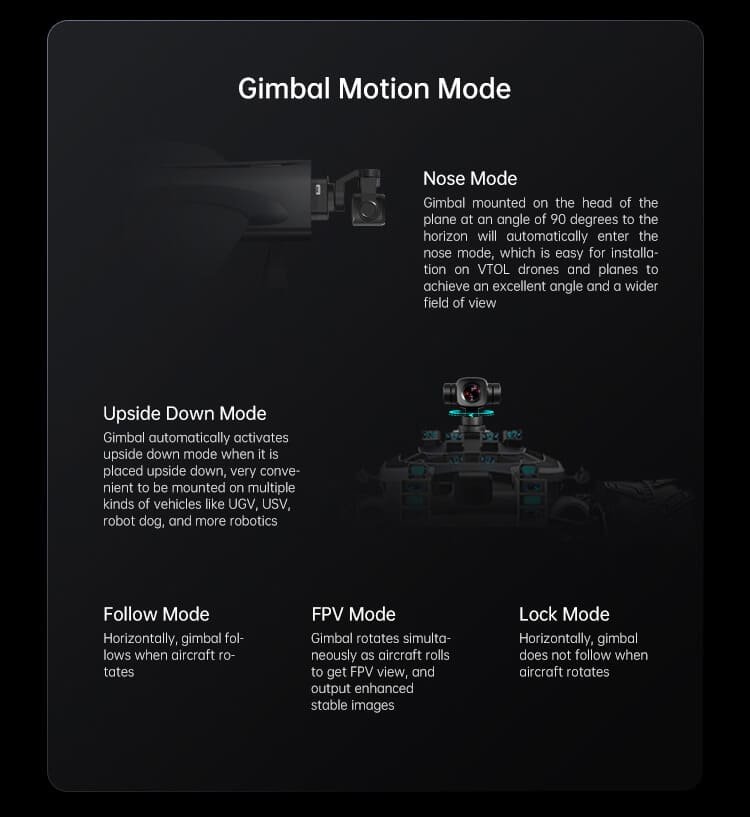

- Nose Mode
- Upside Down Mode

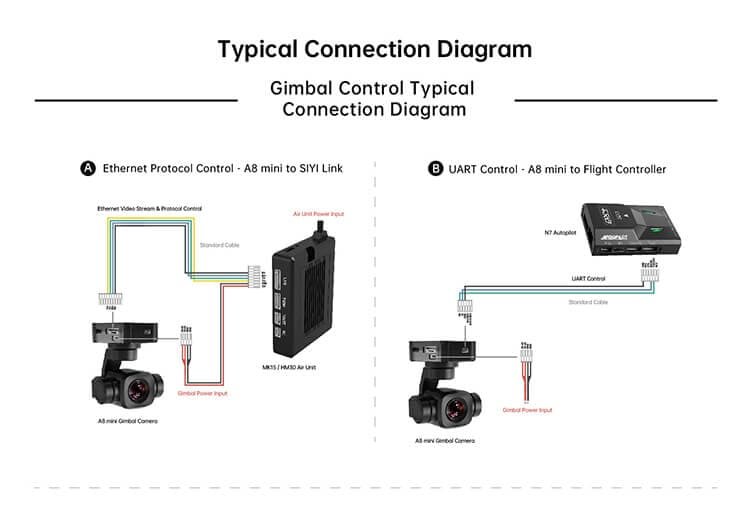

- Compatible with ArduPilot & PX4 (Mavlink)

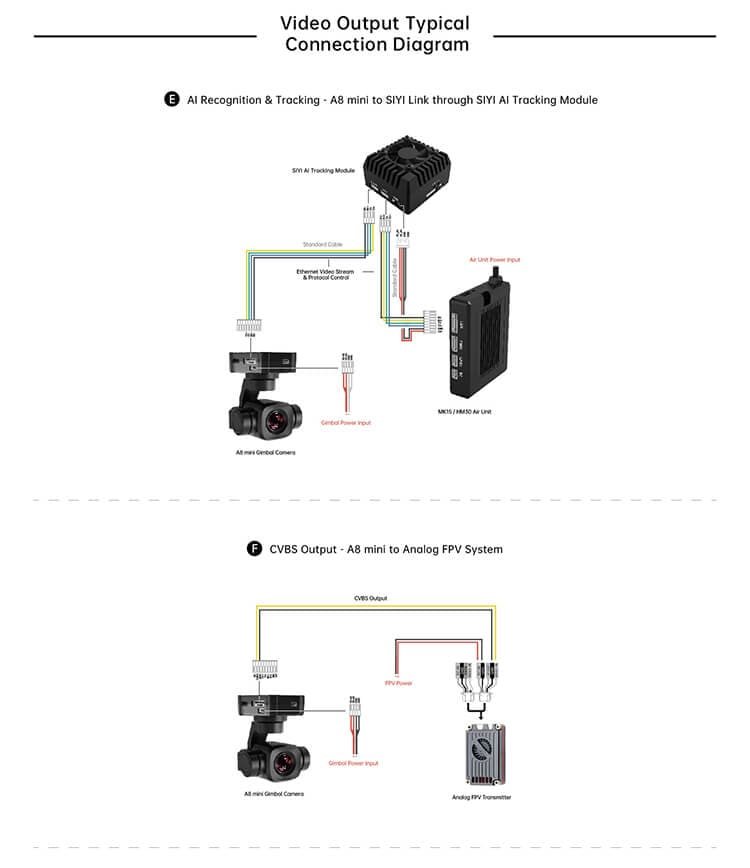

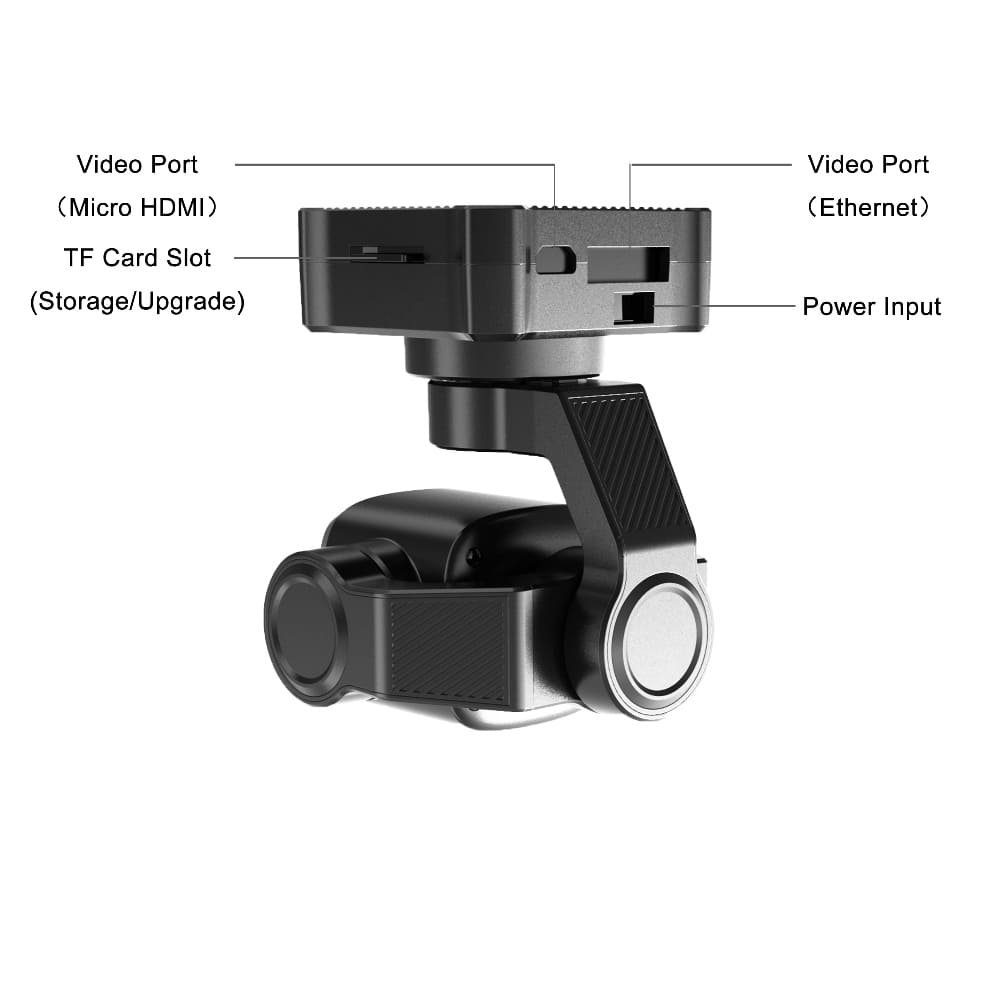

- Ethernet, HDMI, CVBS Video Output
- High Accuracy & High Collaboration Control Algorithm
$237.00
Share on:

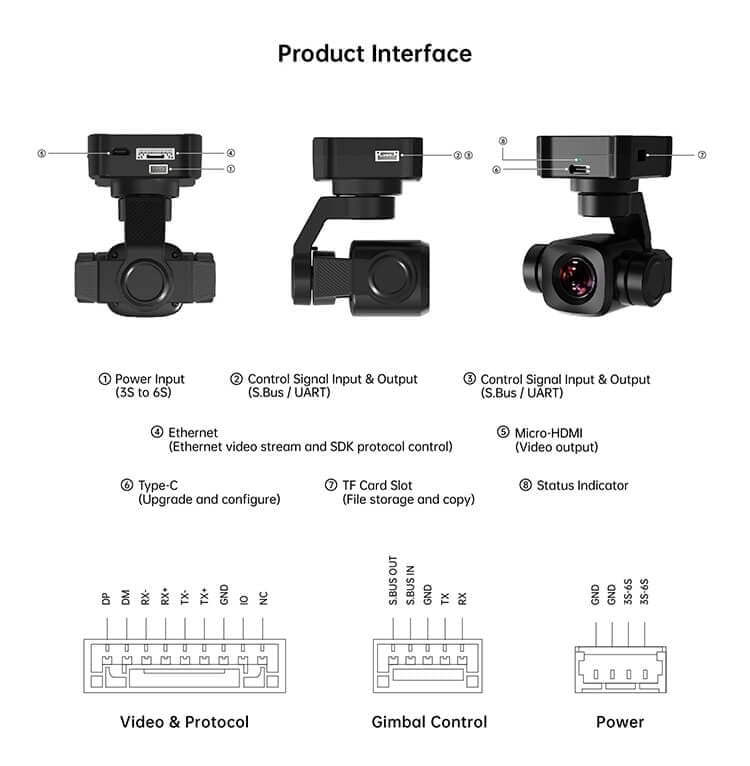

| Overall | |
| Video Output Port | Ethernet |
| CVBS | |
| Micro-HDMI | |

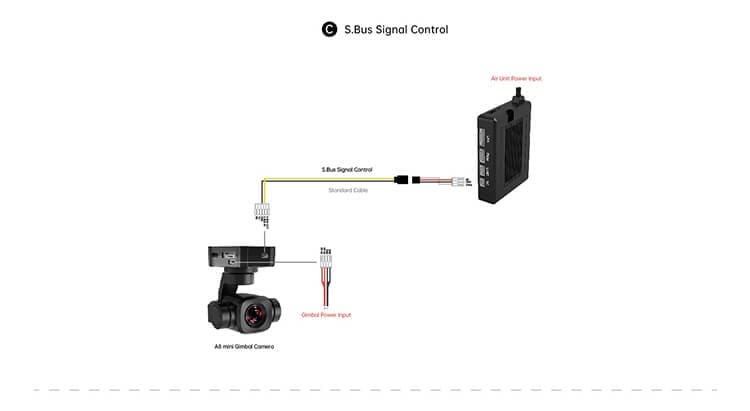

| Control Signal Input Port | S.Bus |
| UART | |
| Ethernet UDP/TCP | |

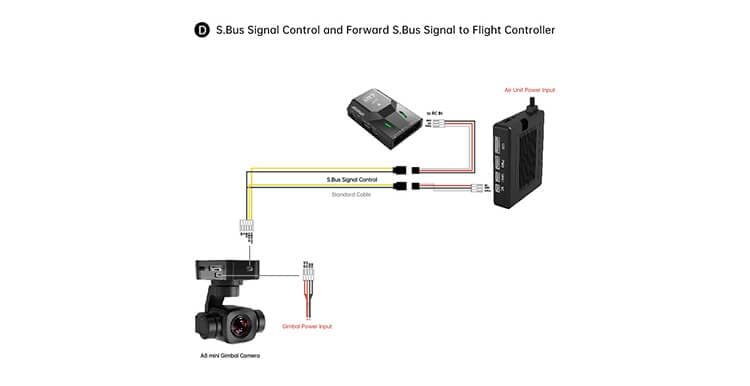

| Control Signal Output Port | S.Bus |
| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Working Voltage | 11 ~ 25.2 V (3S to 6S) |
| *Early manufacturing lots before June of 2023 may not support 25.2V, please carefully confirm | |
| Power Consumption | Average: 5W |
| Summit: 12W | |
| Waterproof Level | IP4X |
| Working Temperature | -10° ~ 50°C |
| Dimension | 55*55*70 mm |
| Weight | 95 g |
| Gimbal | |
| Angular Vibration Range | ± 0.01° |
| Controllable Pitch Angle | -135° ~ +45° |
| Controllable Yaw Angle | -160° ~ +160° |
| Roll Angle | -30° ~ +30° |
| Camera | |
| Lens | Fixed Focal Length |
| 6X Digital Zoom | |
| Equivalent Focal Length | 21 mm |
| Image Sensor | Sony 1/1.7-inch, 8 MP effective resolution |
| Aperture | F2.8 |
| FOV | Diagonal: 93°, Horizontal: 81° |
| Video Recording Resolution | 4K (4096 × 2160) @ 25 fps |
| 2K (2560 × 1440) @ 30 fps | |
| 1080p (1920 × 1080) @ 30 fps | |
| 720p (1280 × 720) @ 30 fps | |
| Video Storage Bitrate (H265 Codec) | 4K / 2K: 20 Mbps |
| 1080p / 720p: 15 Mbps | |
| File Storage Format | FAT32 |
| ExFAT | |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, max 256GB |
| Still Photography Mode | Single |
| White Balance | Auto |
