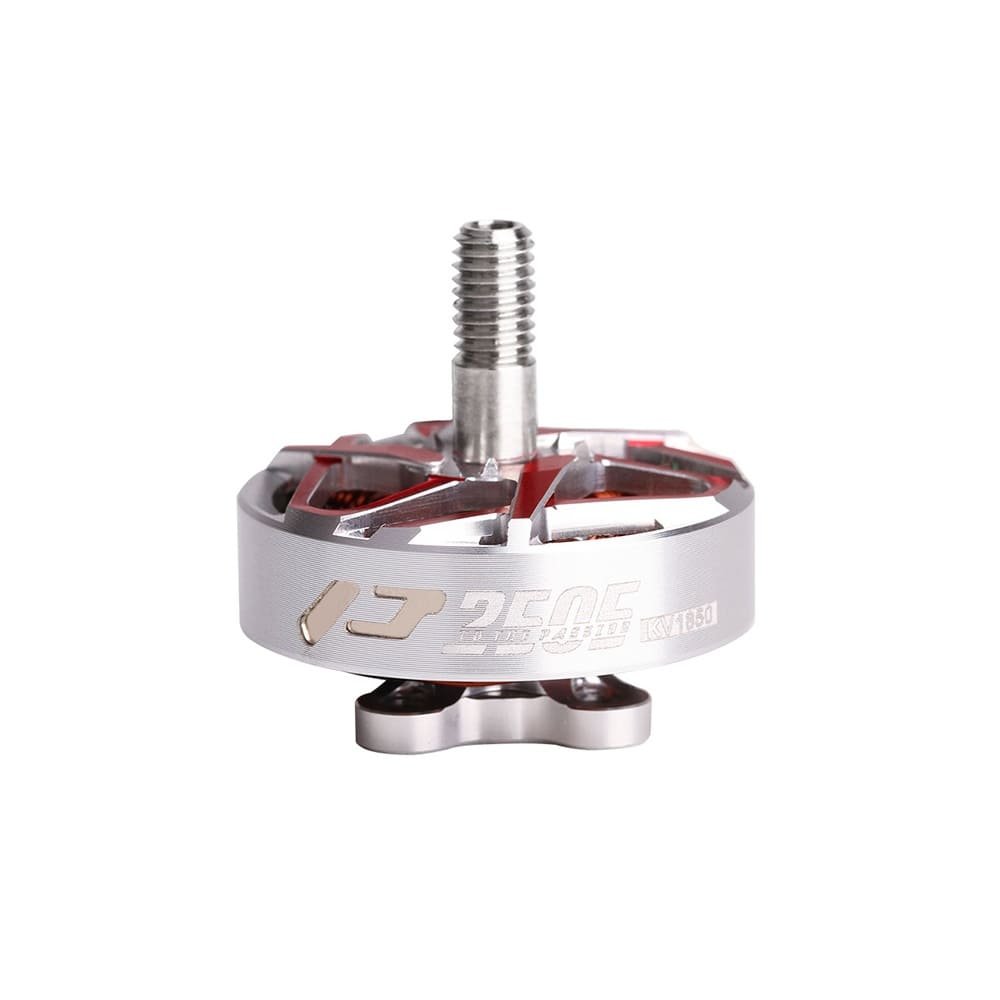

P2505 5inch FPV freestyle Drone Motor
- KV: KV1850
- Smooth
- Lightweight
- Higher Efficiency

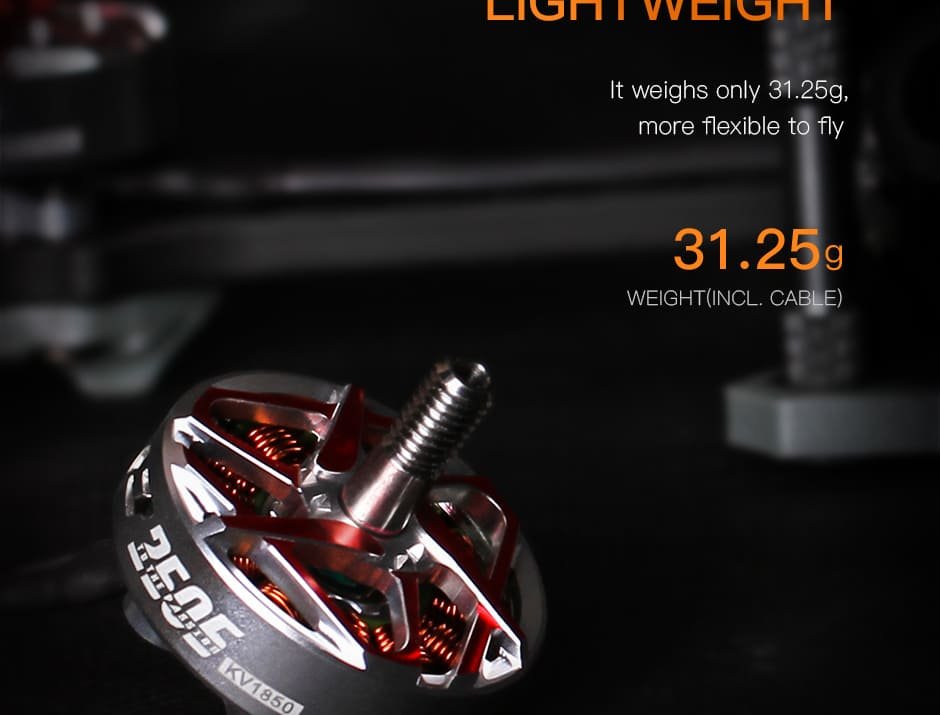

- Weights only 31.25g
- Made with high-quality material like N54 magnet

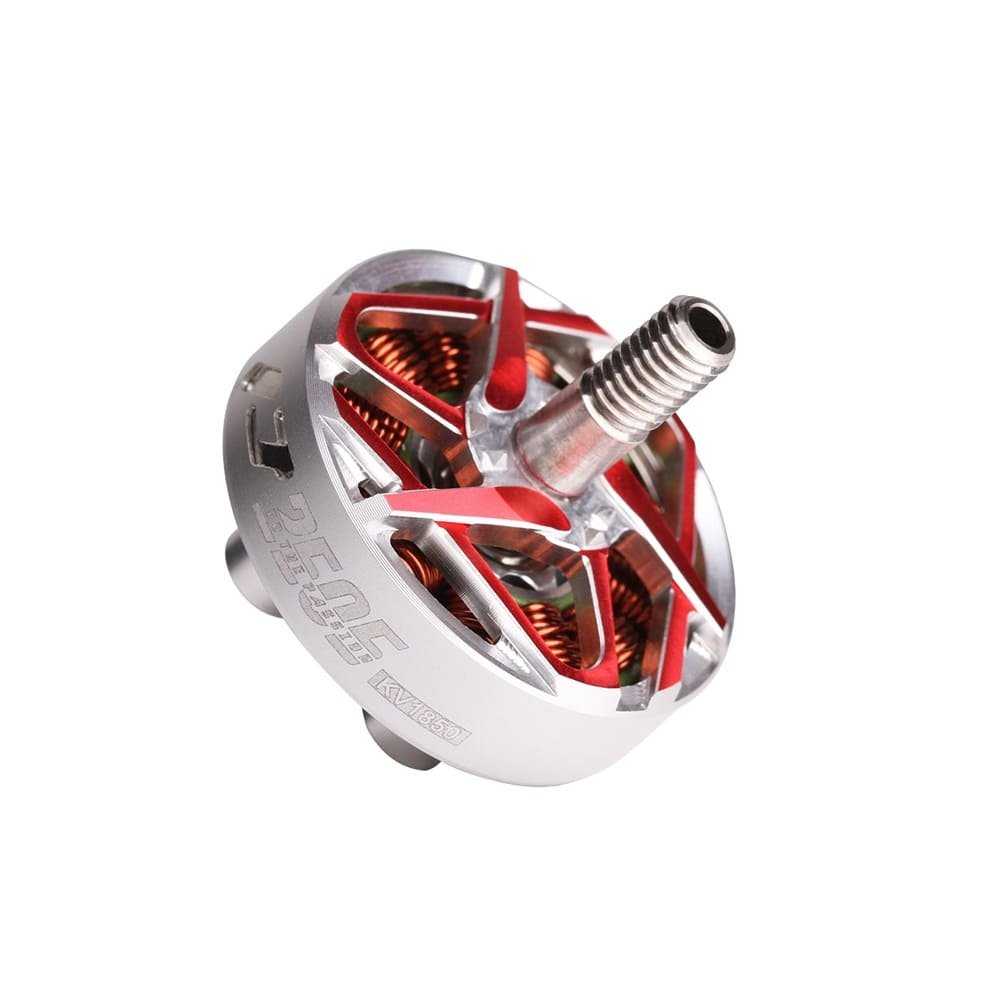

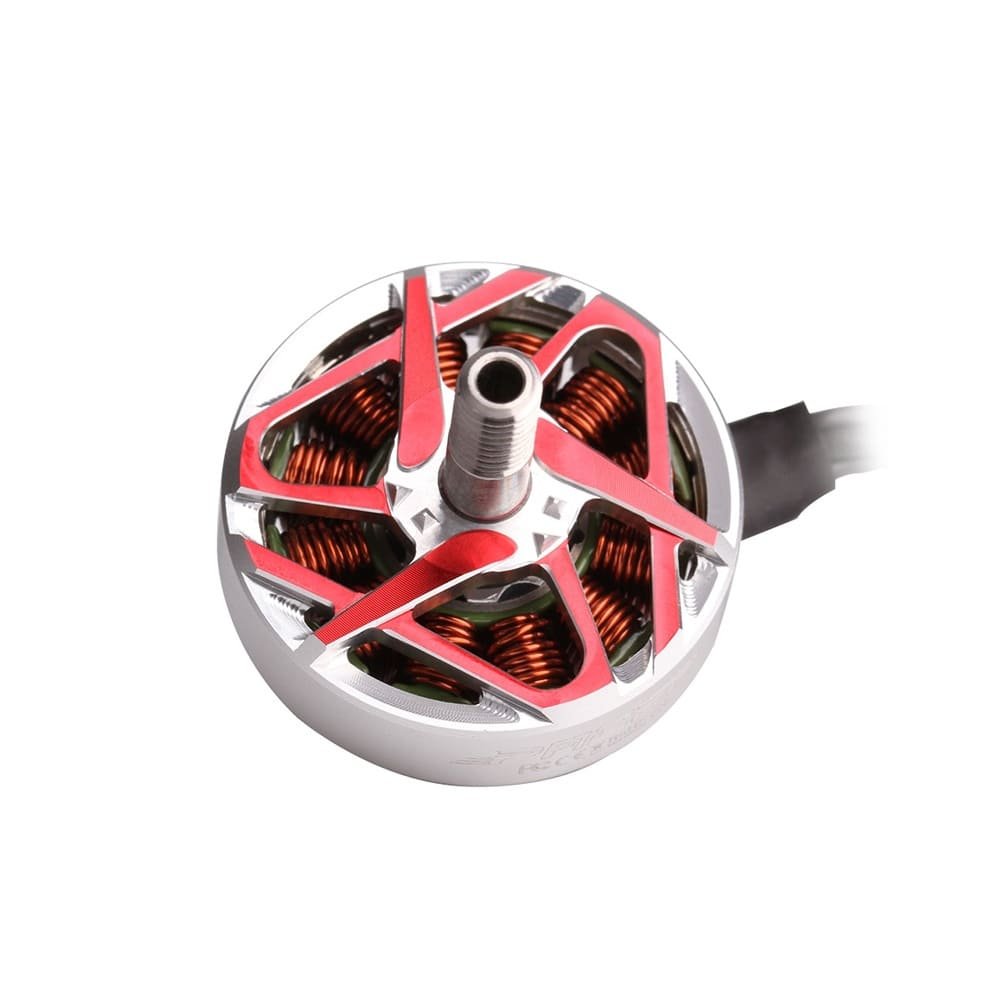

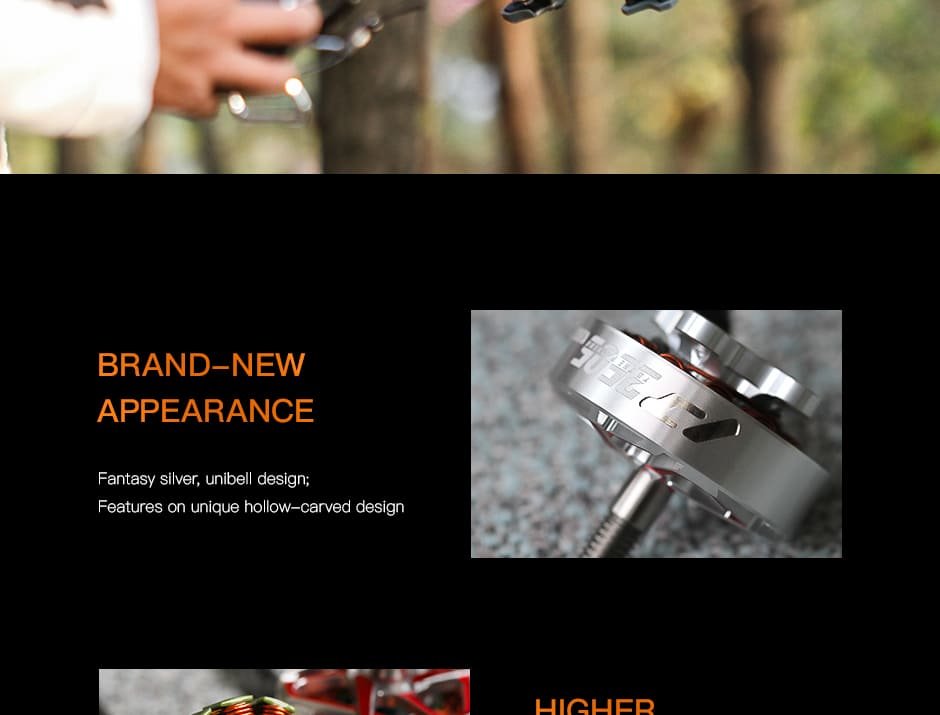

- Unique hollow-carved design
$24.90
Share on:
- About T-MOTOR P25056 5-inch Freestyle FPV Drone Motor

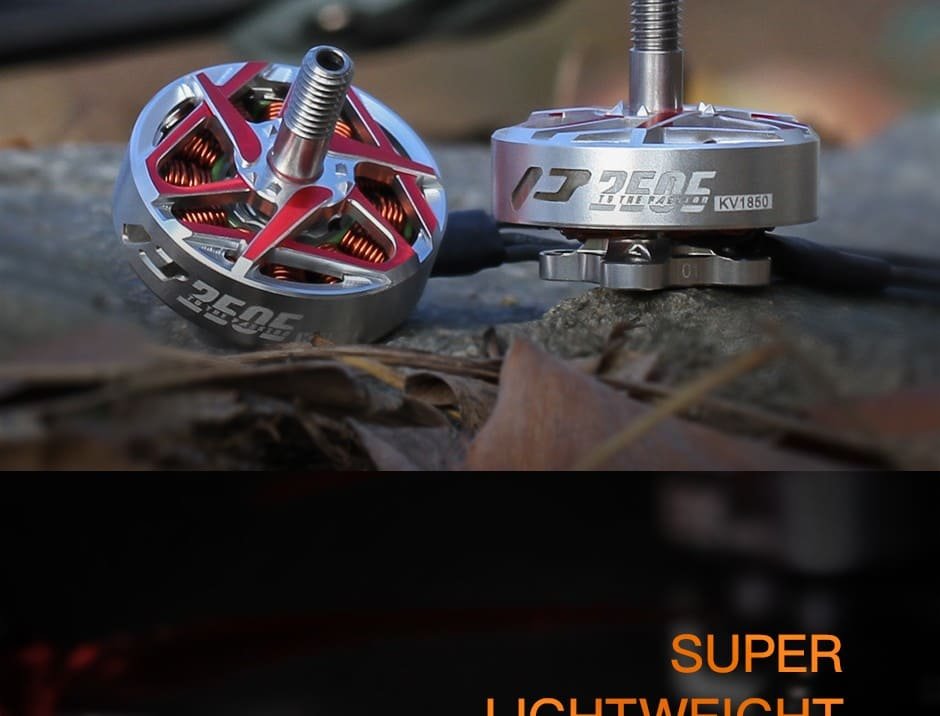

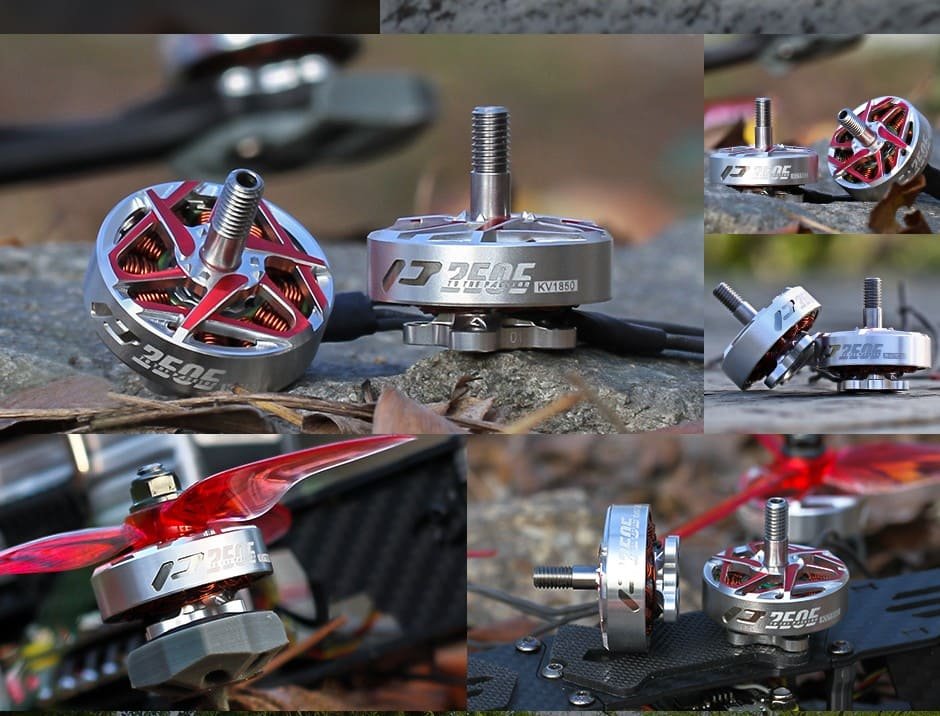

The T-Motor P2505 1850KV motor is a responsive, smooth, and super lightweight motor that only weighs 31.25g!
Made with high-quality components like an N54 magnets for better performance and a unique hollow-carved design to bring you smooth flying! - P2505 Highlights:
The Pacer 2505 brushless motor is suitable for 5″ heavy, 6″ freestyle and mid-range drones. Super lightweight, only 31.25g(Incl. cable).
More precise lock and stronger control of flight attitude, perfect for flow and juicy styles. Continuation of the Pacer series sliver unibell design, which is more durable.

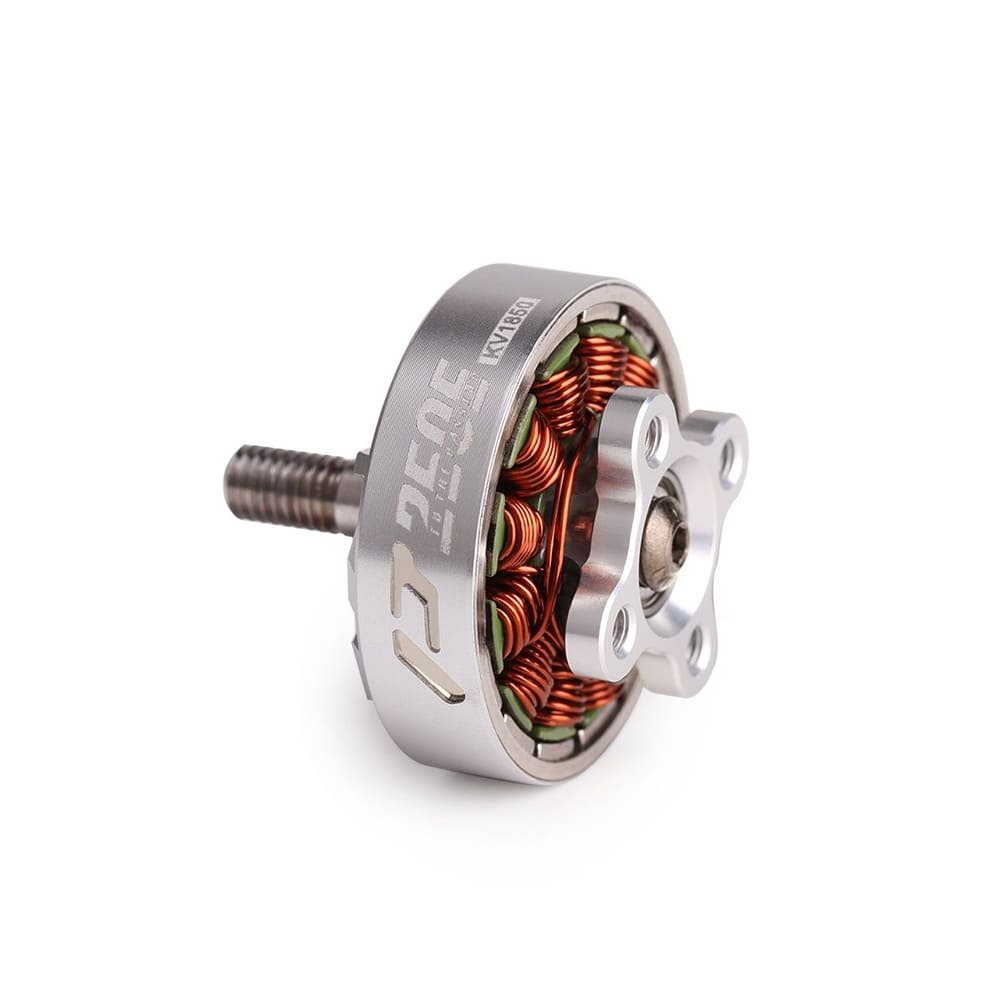

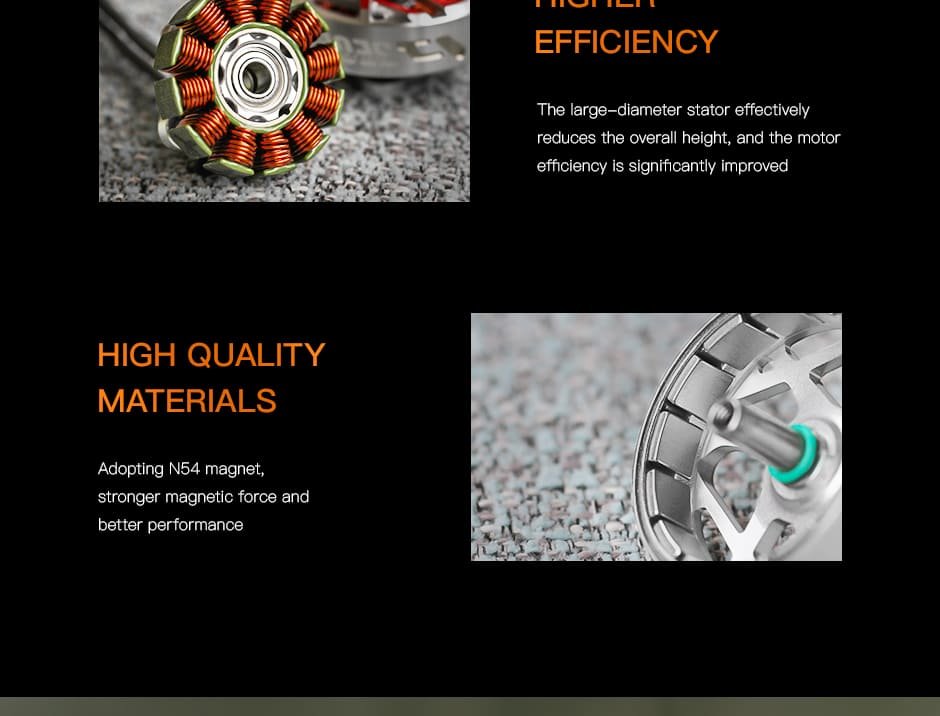

The large diameter stator effectively reduces the overall height, and the motor efficiency is significantly improved. - Packing List Includes:

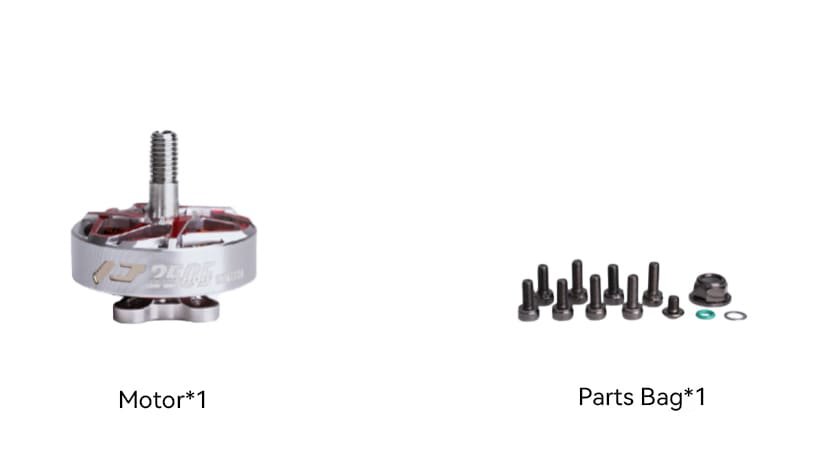

1 x T-Motor P2505 1850KV Motor – Pale Rose

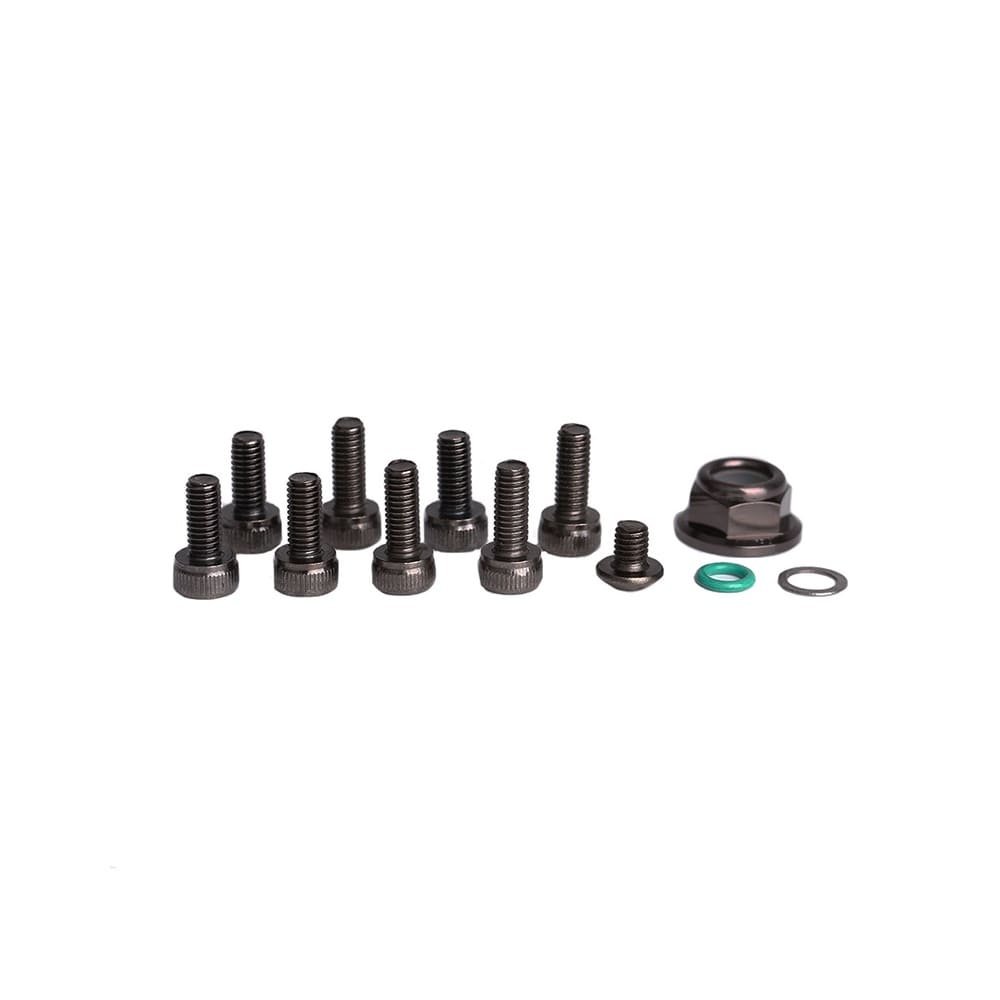

1 x Pack of screws - Matching Frame:
5 Inch
| Technical Drawing | |||
 |
|||
| Specification | |||
| KV | KV1850 | Weight(Incl. Cable) | 31.25g |
| Motor Dimensions | Φ30.4*28.8mm | Internal Resistance | 69mΩ |
| Lead | 20#AWG150mm | Configuration | 12N14P |
| Shaft Diameter | 4mm | Rated Voltage(Lipo) | 4-6S |
| Idle Current(10V) | 1.1A | Peak Current(60s) | 47A |
| Max. Power(60S) | 1217W | ||
| Test Data | |||||||||
| Type | Propeller | Throttle | Thrust (g) | Voltage (V) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (℃) |
| P2505 KV1850 | GF 7040-3 | 30% | 209.56 | 16.86 | 1.99 | 7754 | 33.60 | 6.24 | 18 (Ambient Temperature: 16℃) |
| 40% | 369.48 | 16.82 | 4.11 | 9871 | 69.03 | 5.35 | |||
| 50% | 560.13 | 16.75 | 7.43 | 11879 | 124.47 | 4.50 | |||
| 60% | 763.99 | 16.67 | 11.88 | 13651 | 198.09 | 3.86 | |||
| 70% | 950.19 | 16.57 | 16.98 | 15018 | 281.48 | 3.38 | |||
| 80% | 1118.30 | 16.48 | 22.26 | 16142 | 366.78 | 3.05 | |||
| 90% | 1263.19 | 16.36 | 28.54 | 17027 | 466.75 | 2.71 | |||
| 100% | 1384.39 | 16.22 | 35.09 | 17658 | 569.30 | 2.43 | |||
| T 6143-3 | 30% | 155.32 | 16.80 | 1.72 | 8214 | 28.84 | 5.39 | 77 (Ambient Temperature: 16℃) |
|
| 40% | 268.51 | 16.77 | 3.32 | 10414 | 55.59 | 4.83 | |||
| 50% | 424.93 | 16.72 | 5.82 | 12673 | 97.29 | 4.37 | |||
| 60% | 582.62 | 16.66 | 9.02 | 14731 | 150.36 | 3.87 | |||
| 70% | 739.23 | 16.59 | 12.73 | 16457 | 211.27 | 3.50 | |||
| 80% | 893.59 | 16.51 | 16.98 | 17963 | 280.37 | 3.19 | |||
| 90% | 1047.42 | 16.42 | 21.87 | 19394 | 359.19 | 2.92 | |||
| 100% | 1192.77 | 16.31 | 27.69 | 20605 | 451.59 | 2.64 | |||
| T 5143-3 | 30% | 176.84 | 21.08 | 1.72 | 10508 | 36.32 | 4.87 | 80 (Ambient Temperature: 16℃) |
|
| 40% | 312.55 | 21.05 | 3.43 | 13695 | 72.12 | 4.33 | |||
| 50% | 472.04 | 21.00 | 5.82 | 16524 | 122.14 | 3.86 | |||
| 60% | 624.70 | 20.94 | 8.78 | 18985 | 183.99 | 3.40 | |||
| 70% | 815.36 | 20.87 | 12.77 | 21493 | 266.40 | 3.06 | |||
| 80% | 992.00 | 20.78 | 17.36 | 23644 | 360.70 | 2.75 | |||
| 90% | 1153.74 | 20.69 | 22.16 | 25396 | 458.31 | 2.52 | |||
| 100% | 1330.36 | 20.57 | 28.29 | 27116 | 581.81 | 2.29 | |||
| T 6143-3 | 30% | 235.22 | 20.93 | 2.29 | 9761 | 47.90 | 4.91 | 85 (Ambient Temperature: 16℃) |
|
| 40% | 414.90 | 20.89 | 4.68 | 12575 | 97.72 | 4.25 | |||
| 50% | 627.73 | 20.82 | 8.16 | 15152 | 169.99 | 3.69 | |||
| 60% | 811.23 | 20.73 | 12.83 | 17233 | 266.07 | 3.05 | |||
| 70% | 1007.51 | 20.65 | 17.34 | 19048 | 357.98 | 2.81 | |||
| 80% | 1211.66 | 20.54 | 22.90 | 20718 | 470.42 | 2.58 | |||
| 90% | 1364.10 | 20.43 | 28.96 | 21934 | 591.62 | 2.31 | |||
| 100% | 1511.72 | 20.29 | 36.10 | 23013 | 732.64 | 2.06 | |||
| T 5143-3 | 30% | 256.33 | 25.25 | 2.30 | 12370 | 57.96 | 4.42 | 95 (Ambient Temperature: 16℃) |
|
| 40% | 438.83 | 25.21 | 4.53 | 15953 | 114.13 | 3.85 | |||
| 50% | 639.18 | 25.15 | 7.70 | 19210 | 193.67 | 3.30 | |||
| 60% | 870.18 | 25.06 | 12.11 | 22050 | 303.52 | 2.87 | |||
| 70% | 1093.04 | 24.96 | 17.29 | 24636 | 431.64 | 2.53 | |||
| 80% | 1278.38 | 24.86 | 22.82 | 26677 | 567.30 | 2.25 | |||
| 90% | 1595.62 | 24.60 | 36.01 | 30171 | 885.72 | 1.80 | |||
| 100% | 1912.61 | 25.36 | 47.02 | 30610 | 1192.22 | 1.60 | |||
| T 6143-3 | 30% | 341.60 | 25.14 | 3.04 | 11322 | 76.42 | 4.47 | 87 (Ambient Temperature: 16℃) |
|
| 40% | 581.43 | 25.07 | 6.38 | 14672 | 160.09 | 3.63 | |||
| 50% | 809.11 | 24.95 | 13.13 | 17007 | 327.59 | 2.47 | |||
| 60% | 993.79 | 24.84 | 18.89 | 18996 | 469.18 | 2.12 | |||
| 70% | 1236.59 | 24.79 | 21.34 | 21068 | 529.02 | 2.34 | |||
| 80% | 1463.84 | 24.66 | 28.37 | 22581 | 699.51 | 2.09 | |||
| 90% | 1550.32 | 24.54 | 34.50 | 23358 | 846.74 | 1.83 | |||
| 100% | 1627.58 | 24.41 | 41.60 | 23794 | 1015.29 | 1.60 | |||
| Packing List | |||||||||
 |
|||||||||
