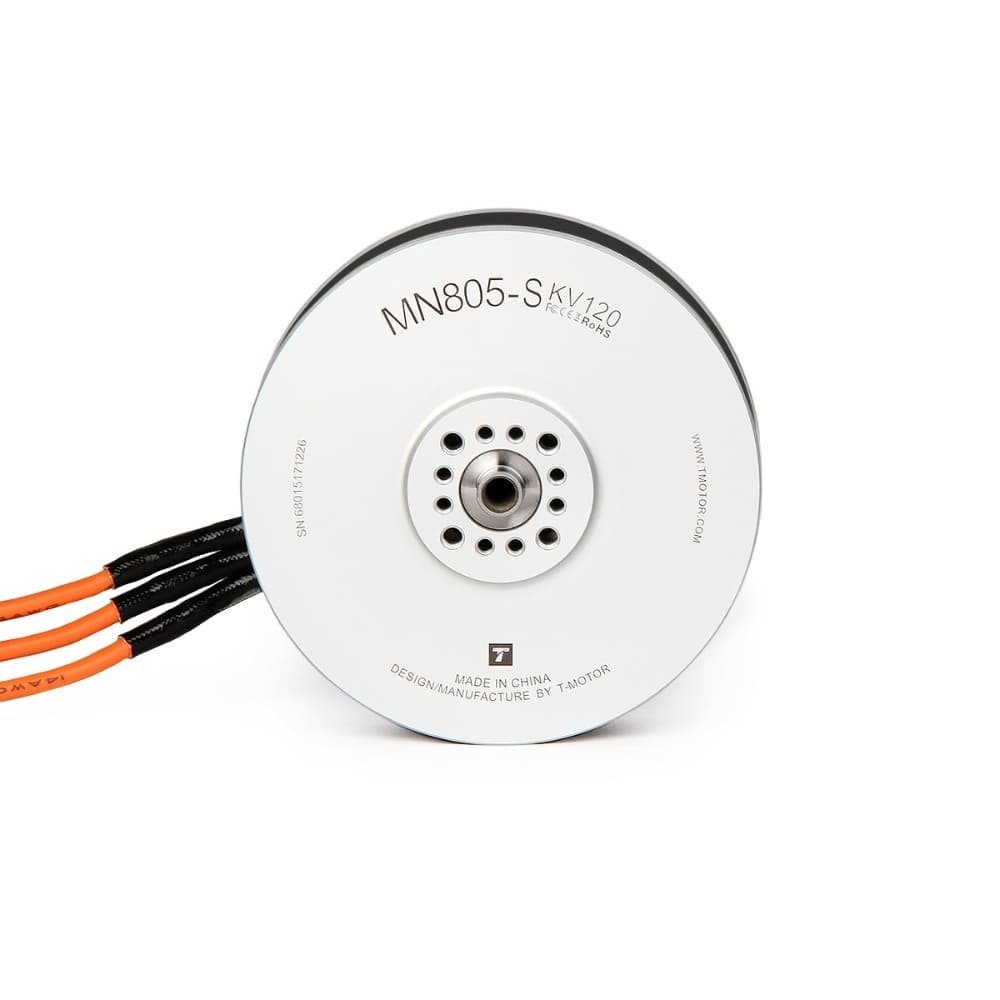

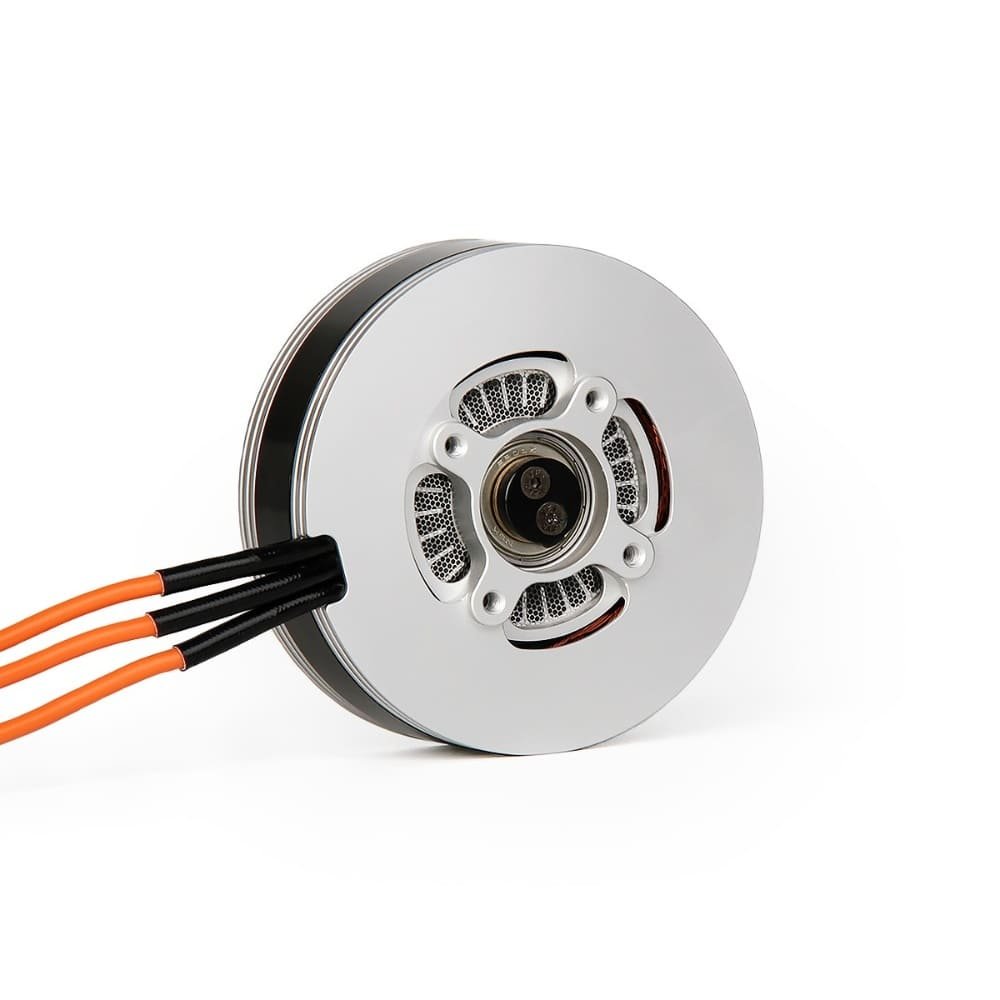

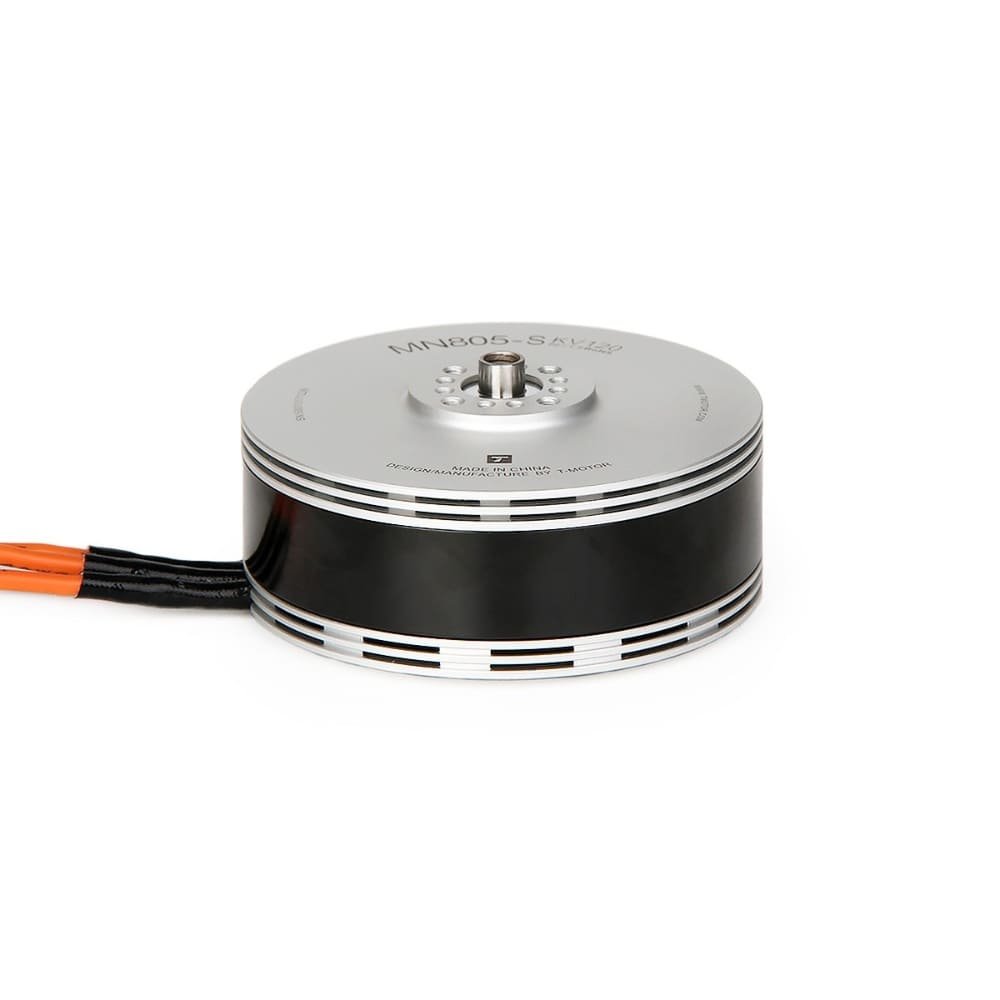

MN805-S IP45 Multirotor Fixed Wing UAV Motor
- KV: MN805S KV170
- Heavy load motor, born for VTOL
- Long service life

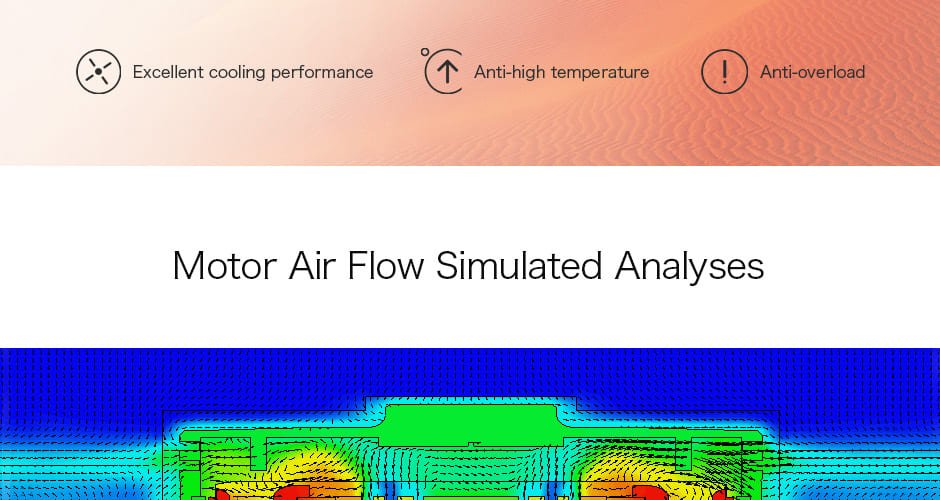

- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion
$269.99
Share on:
- About T-MOTOR Navigator MN805-S Multirotor Fixed Wing UAV Motor KV170
T-Motor MN805-S Navigator Series is a high-performance brushless motor designed for medium-sized VTOL UAVs, offering up to 21.5kg of thrust. Engineered for heavy payloads, it ensures stable, reliable flight with a long service life and exceptional cooling performance. Built with dust-resistance, waterproof, and anti-corrosion features, the MN805-S is perfect for demanding conditions. With a recommended prop size of T-Motor G32*11″ and an MTBF of 1000 hours, this motor is ideal for applications requiring long flight times and high reliability. Safe, impact-resistant, and IP45 rated, it’s the perfect choice for your next heavy-load UAV project. - Navigator MN805-S Highlights:
Max thrust: 16kg
MTBF: About 1000hours

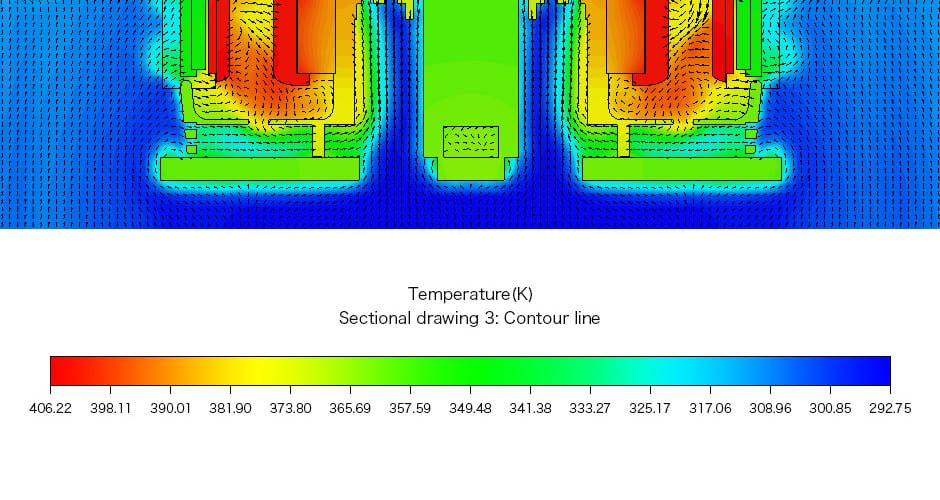

Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time
“Navigator” motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings. - Application Areas:

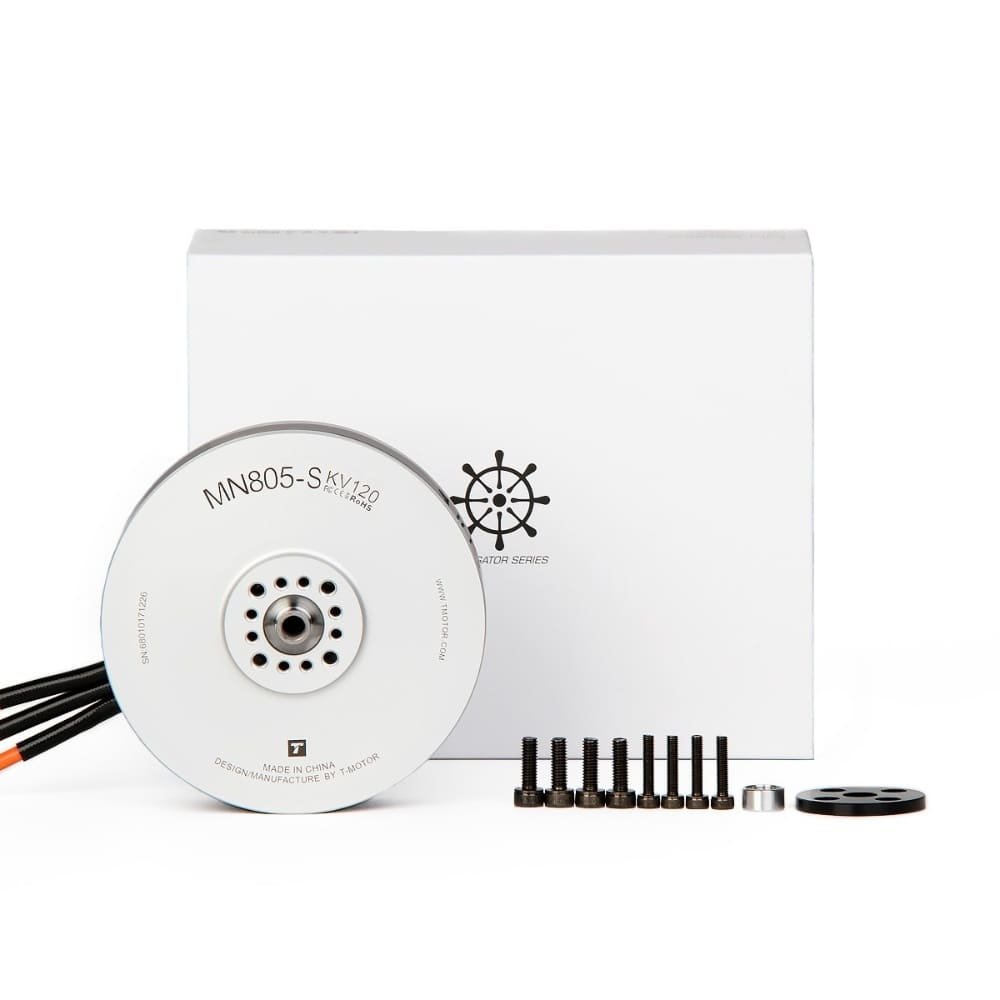

Cargo Drones, Tethered, Mapping and Inspection. - Packing List Includes:

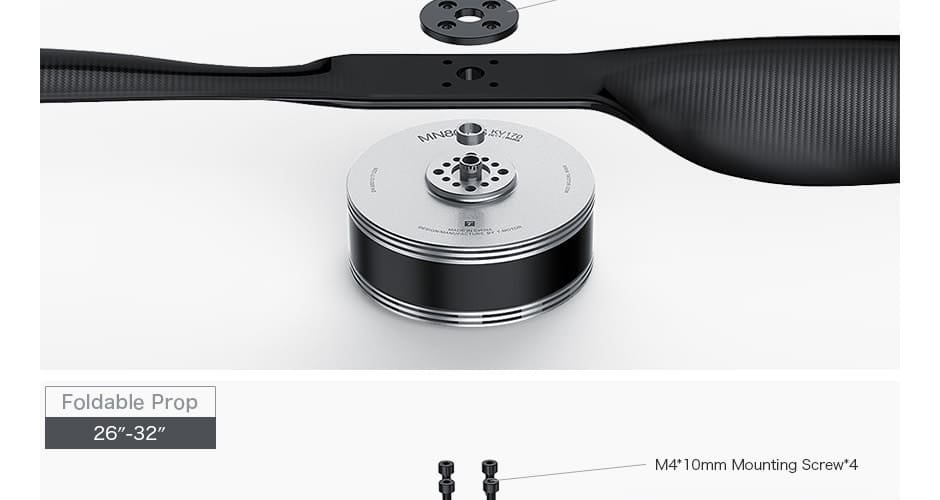

1x T-MOTOR MN805 Motor KV170
1x Hardware pack

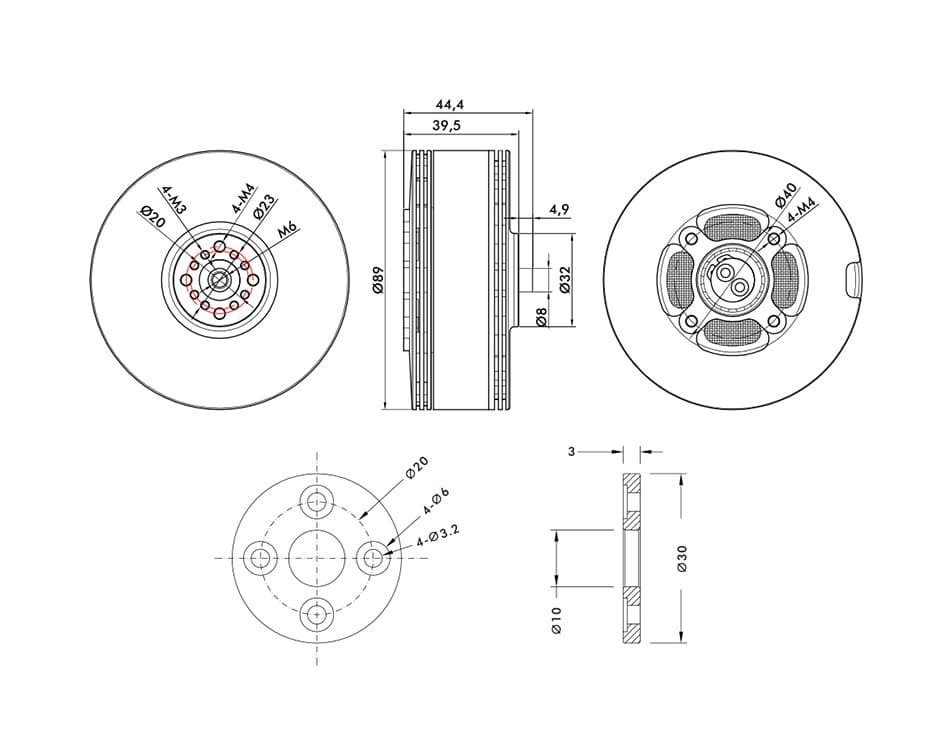

| Technical Drawing | |||
 |
|||
| Specification | |||
| Motor Size | Φ89*44.4mm | Copper Wire | 220℃ high temperature resistance: Level C |
| Stator | Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings | Coil Insulation Test | 500V |

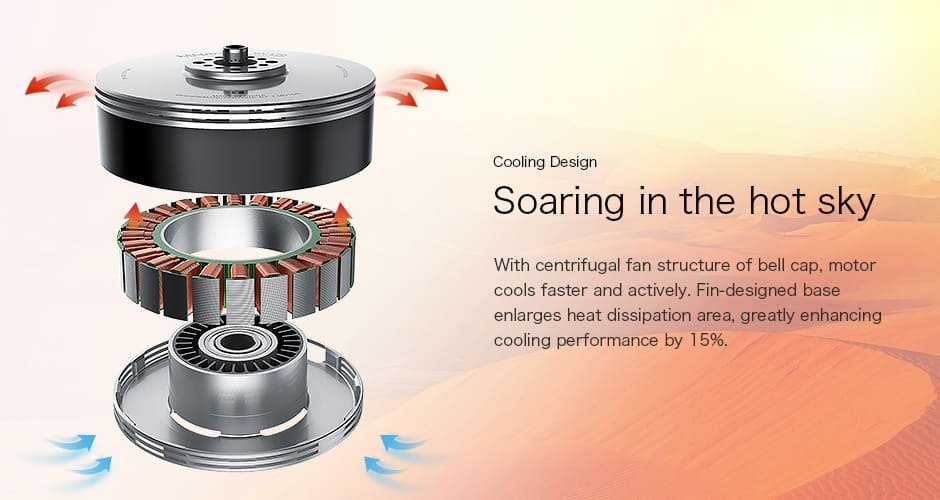

| Configuration | 24N28P | Centrifugal Cooling Design | YES |

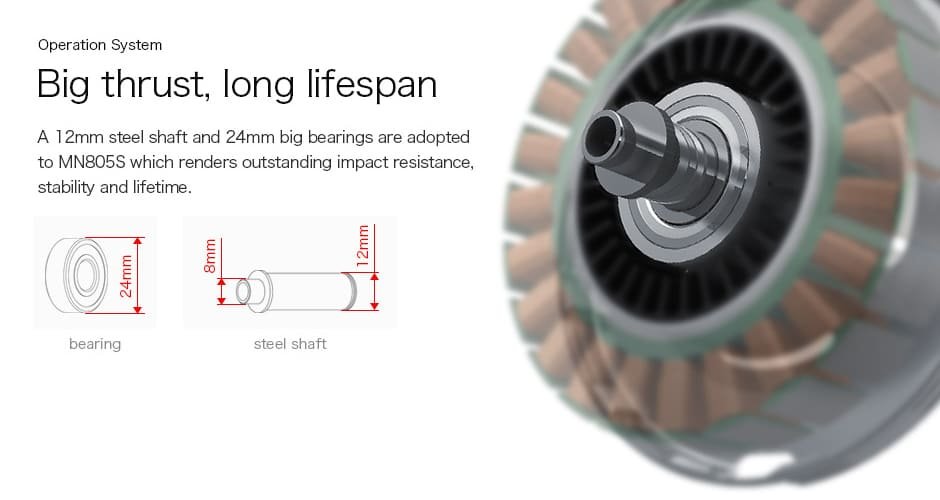

| Shaft Diameter | IN：12mm，OUT：8mm | Rotor Dynamic Balance Standard | ≤5Mg |
| Bearing | Imported 6901ZZ | Motor Dynamic Balance Standard | ≤10Mg |

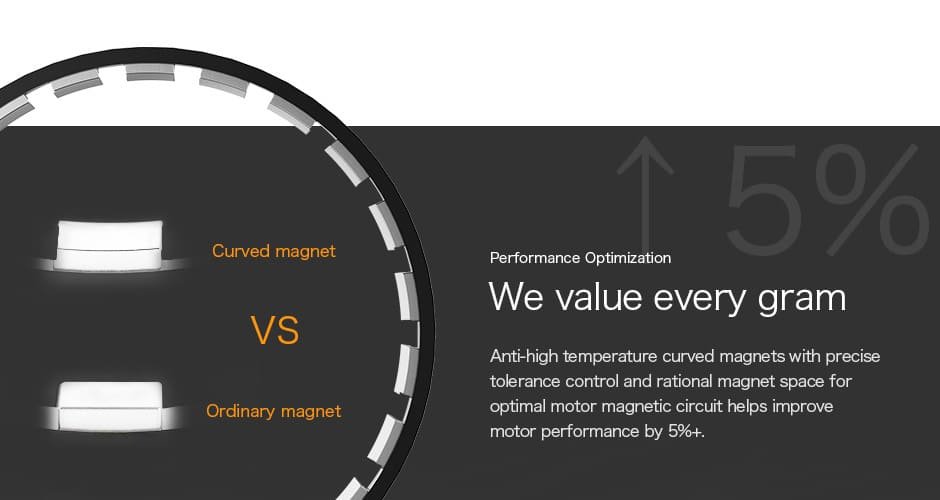

| Magnet Level | 180℃ high temperature resistance | IP | IP45 |
| Lead Cable | 14AWG*150mm | ||
| KV | 170 | Rated Voltage ( Lipo ) | 6-12S |
| Idle Current(15V) | 2.6A | ESC Recommendation | FLAME 100A 14S |
| Peak Current(180s) | 83A | Propeller Recommendation | 26-27″ |
| Max.Power(180s) | 4000W | Motor Weight (indl. Cable) | 625g |
| Internal Resistance | 28mΩ | Package Weight | 750g |

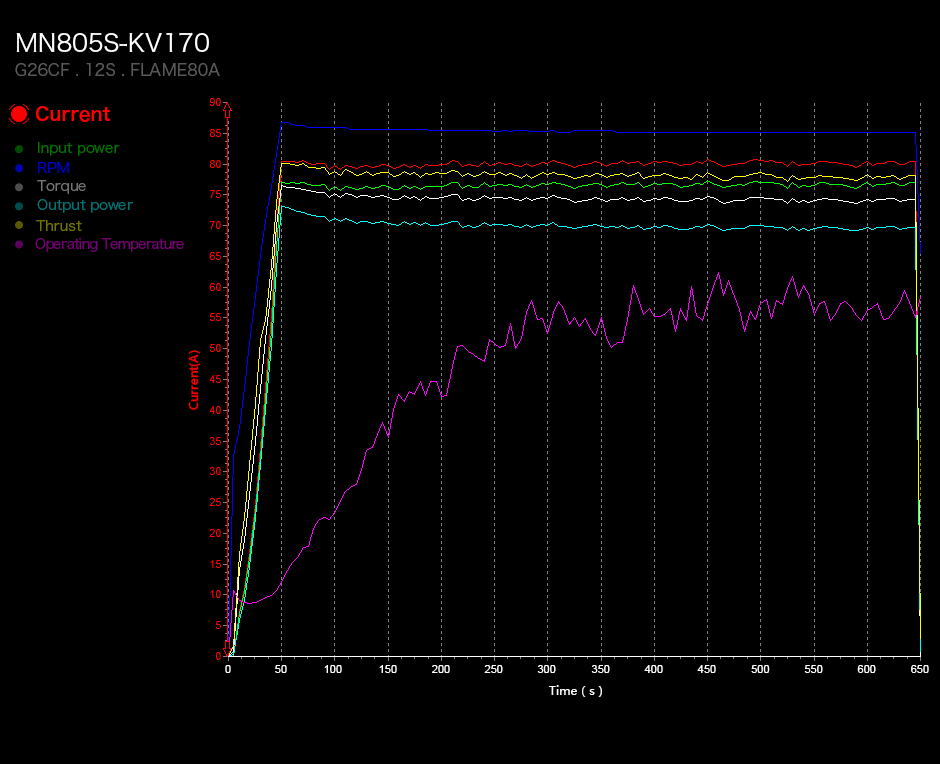

| Test Data | ||||||||||
| Type | Propeller | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) |
| MN805S KV170 | T-MOTOR G26*8.5 | 40% | 48.04 | 3608 | 0.95 | 7.83 | 2669 | 376 | 9.58 | 87.5 (Ambient Temperature :0℃) |
| 42% | 48.04 | 3860 | 1.02 | 8.63 | 2764 | 415 | 9.30 | |||
| 44% | 48.05 | 4202 | 1.11 | 9.64 | 2871 | 463 | 9.07 | |||
| 46% | 48.05 | 4518 | 1.19 | 10.66 | 2972 | 512 | 8.82 | |||
| 48% | 48.04 | 4900 | 1.31 | 11.90 | 3112 | 572 | 8.57 | |||
| 50% | 48.04 | 5198 | 1.41 | 13.06 | 3220 | 627 | 8.28 | |||
| 52% | 47.99 | 5697 | 1.55 | 14.70 | 3359 | 705 | 8.07 | |||
| 54% | 47.98 | 6174 | 1.68 | 16.34 | 3487 | 784 | 7.87 | |||
| 56% | 47.99 | 6691 | 1.84 | 18.36 | 3635 | 881 | 7.59 | |||
| 58% | 47.97 | 7083 | 1.97 | 19.99 | 3743 | 959 | 7.38 | |||
| 60% | 47.96 | 7541 | 2.10 | 21.78 | 3846 | 1045 | 7.21 | |||
| 62% | 47.96 | 8023 | 2.24 | 23.77 | 3969 | 1140 | 7.04 | |||
| 64% | 47.96 | 8563 | 2.38 | 25.84 | 4079 | 1239 | 6.91 | |||
| 66% | 47.95 | 9085 | 2.54 | 28.15 | 4198 | 1350 | 6.73 | |||
| 68% | 47.94 | 9480 | 2.69 | 30.78 | 4325 | 1475 | 6.43 | |||
| 70% | 47.94 | 9871 | 2.82 | 32.73 | 4414 | 1569 | 6.29 | |||
| 75% | 47.91 | 10724 | 3.16 | 39.06 | 4661 | 1871 | 5.73 | |||
| 80% | 47.93 | 11590 | 3.52 | 45.76 | 4903 | 2193 | 5.28 | |||
| 90% | 47.88 | 13542 | 4.30 | 61.64 | 5342 | 2951 | 4.59 | |||
| 100% | 47.84 | 15993 | 5.07 | 80.37 | 5758 | 3845 | 4.16 | |||

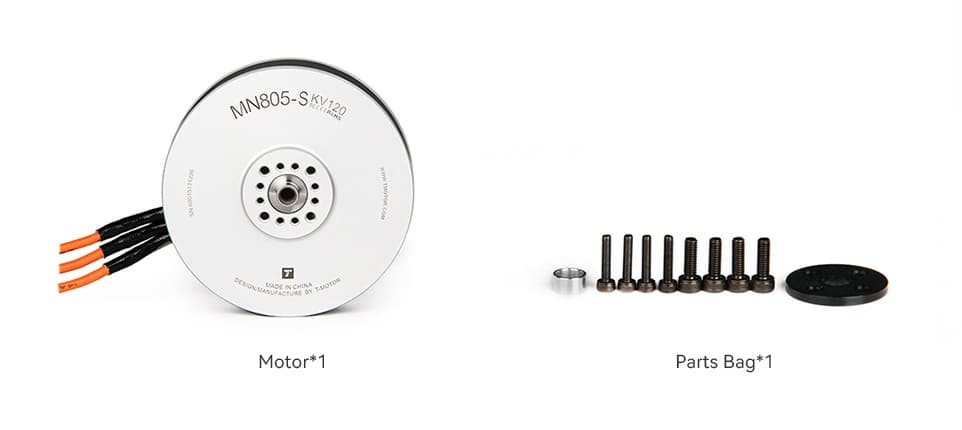

| Packing List | ||||||||||
 |
||||||||||
