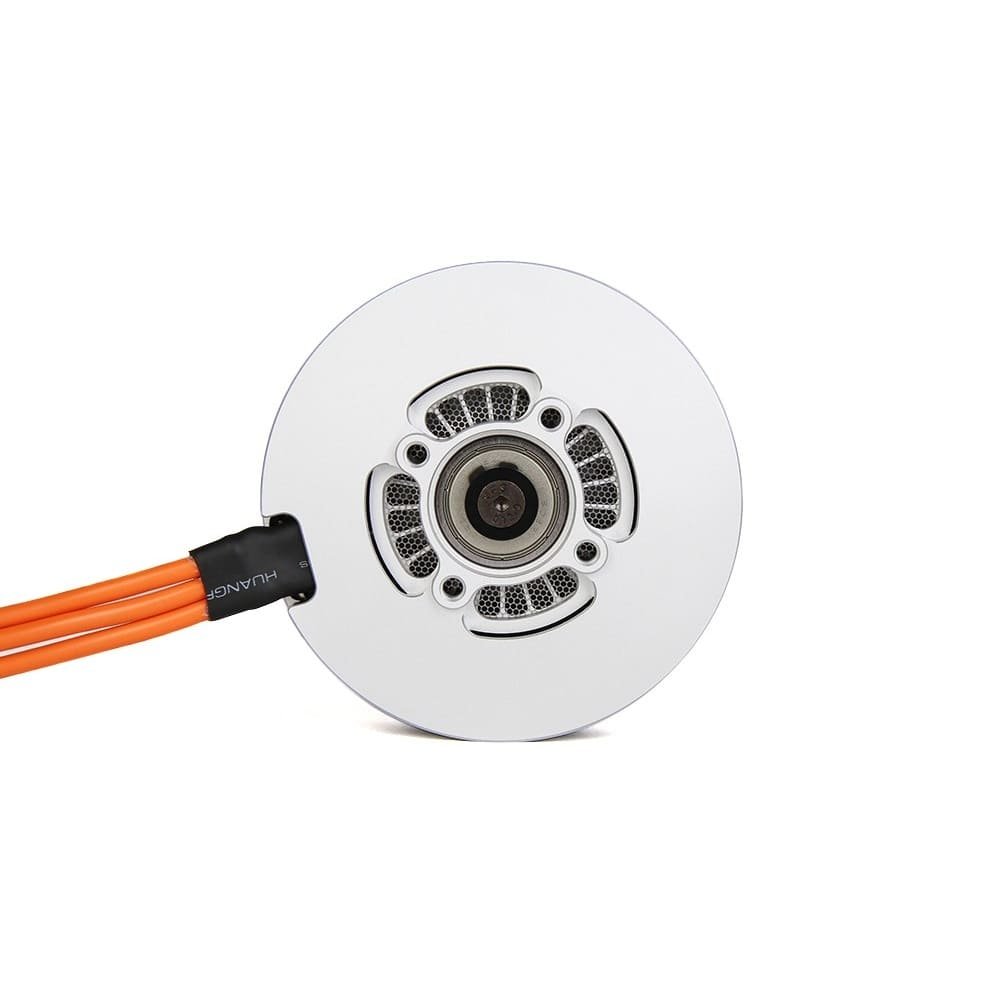

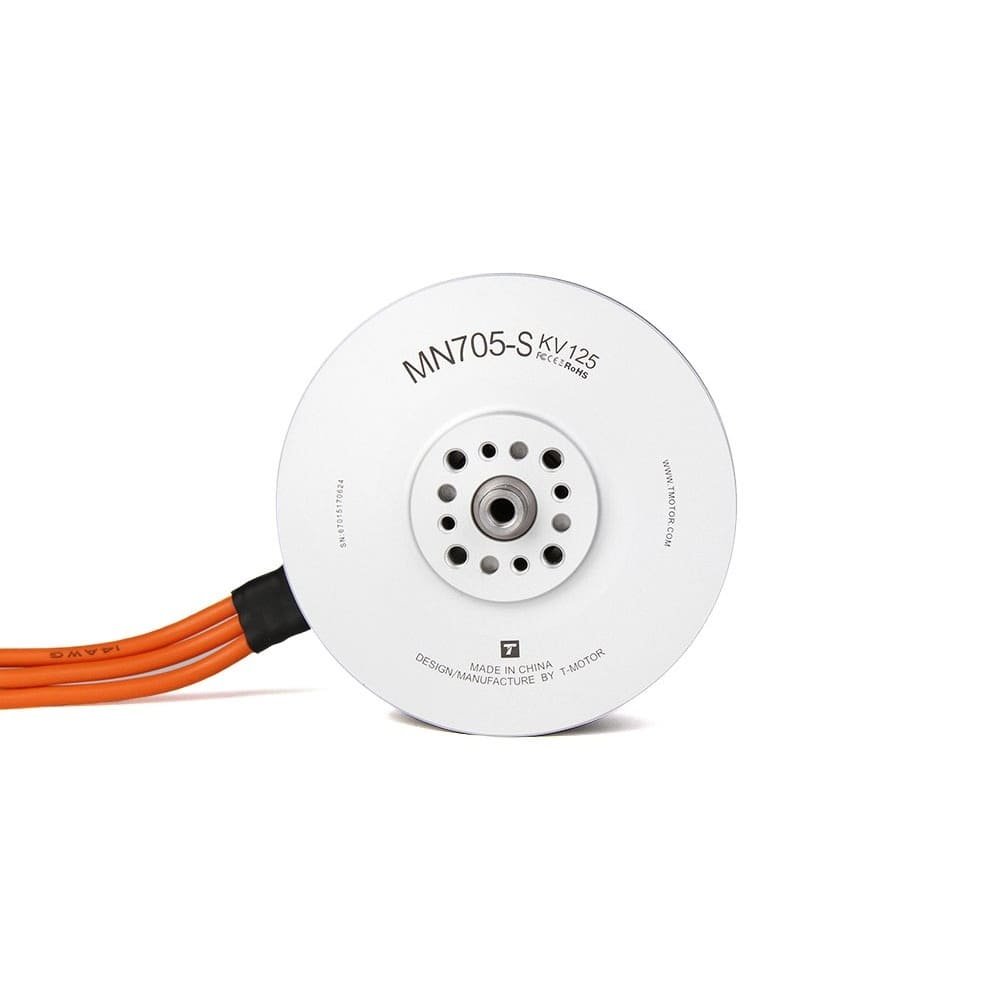

MN705-S IP45 Multirotor Fixed Wing UAV Motor KV125 2PCS/SET
- KV: KV125
- Strong power ,long service life
- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion
$479.98
Share on:
- About T-MOTOR Navigator MN705-S Multirotor Fixed Wing UAV Motor KV125
T-MOTOR MN705-S is a high-performance brushless motor designed for demanding industrial applications. Featuring a robust, enclosed design with IP45 water resistance, it excels in harsh environments.

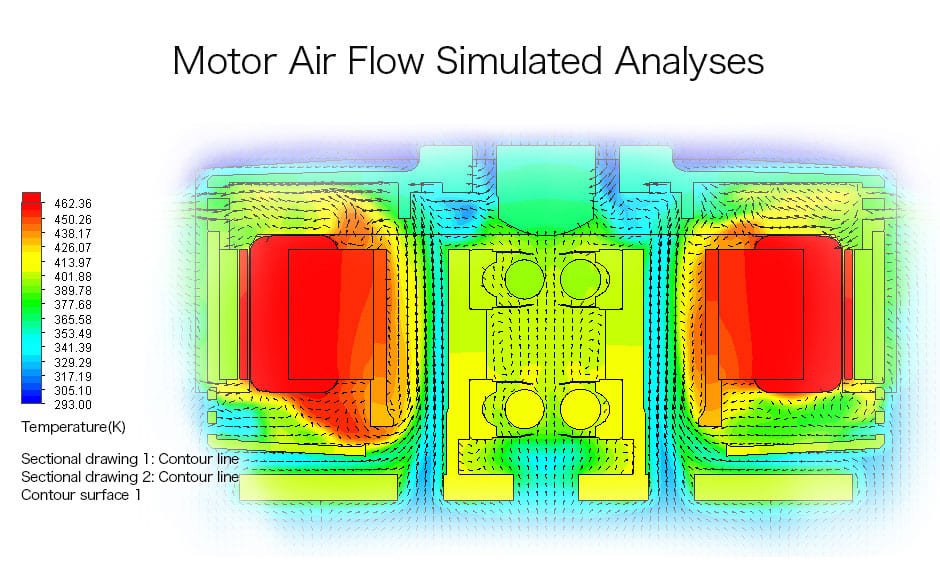

Its advanced cooling system, including a centrifugal fan and optimized heat dissipation, ensures reliable operation under heavy loads.
With a maximum thrust of 13.4kg and a long MTBF, the MN705-S is the ideal choice for a wide range of UAV applications, from aerial photography to heavy-lift operations. - Navigator MN705-S Highlights:
Max thrust: 13.4kg
MTBF: About 1000hours
Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time
“Navigator” motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings. - Application Areas:
Cargo Drones, Tethered, Mapping and Inspection. - Packing List Includes:
1x T-MOTOR MN705 Motor KV125

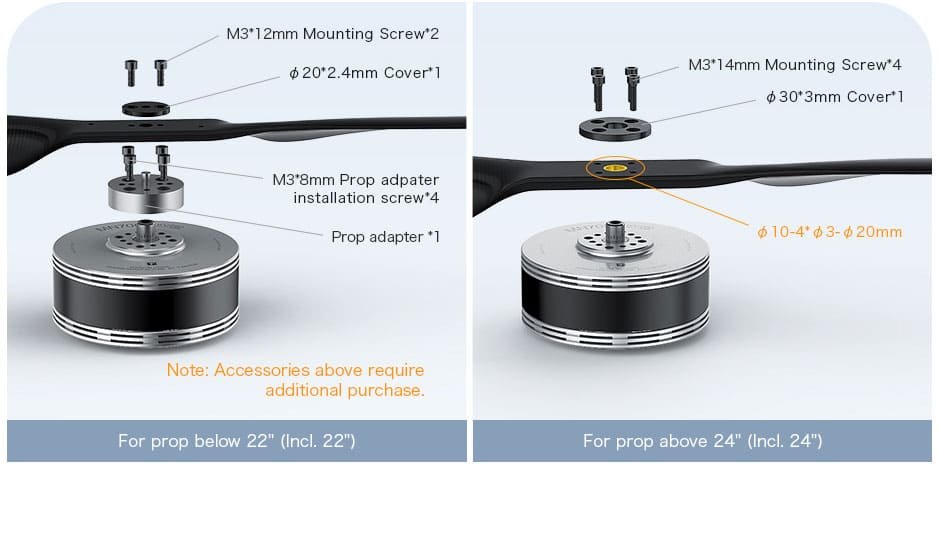

1x Hardware pack
| Technical Drawing | |||
 |
|||
| Specification | |||
| Motor Size | Φ79.2*42.4mm | Copper Wire | 220℃ high temperature resistance: Level C |
| Stator | Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings | Coil Insulation Test | 500V |
| Configuration | 24N28P | Centrifugal Cooling Design | YES |
| Shaft Diameter | IN：8mm，OUT：8mm | Rotor Dynamic Balance Standard | ≤5Mg |
| Bearing | Imported 608ZZ | Motor Dynamic Balance Standard | ≤10Mg |
| Magnet Level | 150℃ high temperature resistance | IP | IP45 |
| Lead Cable | 14AWG*150mm | ||
| KV | 125 | Rated Voltage ( Lipo ) | 12S |
| Idle Current(22V) | 1.4A | ESC Recommendation | FLAME 60A 12S FLAME 80A 12S V2.0 |
| Peak Current(180s) | 45A | Propeller Recommendation | 26-27″ |
| Max.Power(180s) | 2200W | Motor Weight (indl. Cable) | 450g |
| Internal Resistance | 63mΩ | Package Weight | 1250g(2PCS/SET) |
| Test Data | ||||||||||
| Type | Propeller | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Effciency (g/W) | Operating Temperature (℃) |
| MN705S KV125 | T-MOTOR G26*8.5 | 40% | 47.83 | 2452 | 0.86 | 4.50 | 2271 | 215 | 11.39 | 74 (Ambient Temperature: 34.5℃) |
| 42% | 47.81 | 2646 | 0.92 | 4.90 | 2355 | 234 | 11.29 | |||
| 44% | 47.78 | 2814 | 0.98 | 5.30 | 2426 | 253 | 11.11 | |||
| 46% | 47.77 | 3100 | 1.05 | 6.00 | 2529 | 287 | 10.82 | |||
| 48% | 47.74 | 3254 | 1.13 | 6.50 | 2588 | 310 | 10.49 | |||
| 50% | 47.72 | 3538 | 1.20 | 7.30 | 2694 | 348 | 10.16 | |||
| 52% | 47.69 | 3757 | 1.26 | 7.90 | 2798 | 377 | 9.97 | |||
| 54% | 47.67 | 3925 | 1.34 | 8.50 | 2857 | 405 | 9.69 | |||
| 56% | 47.64 | 4271 | 1.42 | 9.50 | 2957 | 453 | 9.44 | |||
| 58% | 47.60 | 4471 | 1.52 | 10.30 | 3030 | 490 | 9.12 | |||
| 60% | 47.58 | 4835 | 1.59 | 11.70 | 3156 | 557 | 8.69 | |||
| 62% | 47.55 | 5049 | 1.67 | 12.40 | 3212 | 590 | 8.56 | |||
| 64% | 47.51 | 5222 | 1.76 | 13.10 | 3284 | 622 | 8.39 | |||
| 66% | 47.48 | 5460 | 1.84 | 13.90 | 3357 | 660 | 8.27 | |||
| 68% | 47.45 | 5672 | 1.91 | 14.80 | 3431 | 702 | 8.08 | |||
| 70% | 47.41 | 5851 | 2.02 | 15.60 | 3504 | 740 | 7.91 | |||
| 75% | 47.33 | 6472 | 2.16 | 18.30 | 3684 | 866 | 7.47 | |||
| 80% | 47.21 | 7103 | 2.41 | 20.60 | 3841 | 973 | 7.30 | |||
| 90% | 46.97 | 8361 | 2.87 | 26.80 | 4118 | 1259 | 6.64 | |||
| 100% | 46.72 | 10251 | 3.29 | 36.40 | 4518 | 1701 | 6.03 | |||
| T-MOTOR G27*8.8 | 40% | 47.81 | 2639 | 0.97 | 4.70 | 2238 | 225 | 11.74 | 85 (Ambient Temperature: 34.5℃) |
|
| 42% | 47.79 | 2871 | 1.03 | 5.30 | 2326 | 253 | 11.33 | |||
| 44% | 47.76 | 2980 | 1.09 | 5.80 | 2400 | 277 | 10.76 | |||
| 46% | 47.74 | 3167 | 1.16 | 6.20 | 2466 | 296 | 10.70 | |||
| 48% | 47.71 | 3452 | 1.25 | 6.90 | 2512 | 329 | 10.49 | |||
| 50% | 47.69 | 3610 | 1.30 | 7.50 | 2644 | 358 | 10.09 | |||
| 52% | 47.66 | 3940 | 1.38 | 8.50 | 2746 | 405 | 9.73 | |||
| 54% | 47.64 | 4224 | 1.46 | 9.40 | 2840 | 448 | 9.43 | |||
| 56% | 47.61 | 4401 | 1.54 | 10.10 | 2907 | 481 | 9.15 | |||
| 58% | 47.57 | 4700 | 1.63 | 10.90 | 2998 | 519 | 9.06 | |||
| 60% | 47.53 | 4932 | 1.74 | 11.70 | 3059 | 556 | 8.87 | |||
| 62% | 47.50 | 5300 | 1.83 | 13.20 | 3119 | 627 | 8.45 | |||
| 64% | 47.47 | 5502 | 1.91 | 13.90 | 3232 | 660 | 8.34 | |||
| 66% | 47.43 | 5788 | 2.00 | 15.00 | 3306 | 711 | 8.14 | |||
| 68% | 47.39 | 6106 | 2.08 | 16.20 | 3397 | 768 | 7.95 | |||
| 70% | 47.34 | 6275 | 2.18 | 17.00 | 3445 | 805 | 7.80 | |||
| 75% | 47.24 | 7066 | 2.42 | 19.90 | 3615 | 940 | 7.52 | |||
| 80% | 47.12 | 7710 | 2.65 | 22.80 | 3772 | 1074 | 7.18 | |||
| 90% | 46.88 | 9247 | 3.08 | 30.10 | 4107 | 1411 | 6.55 | |||
| 100% | 46.60 | 10977 | 3.53 | 40.00 | 4480 | 1864 | 5.89 | |||

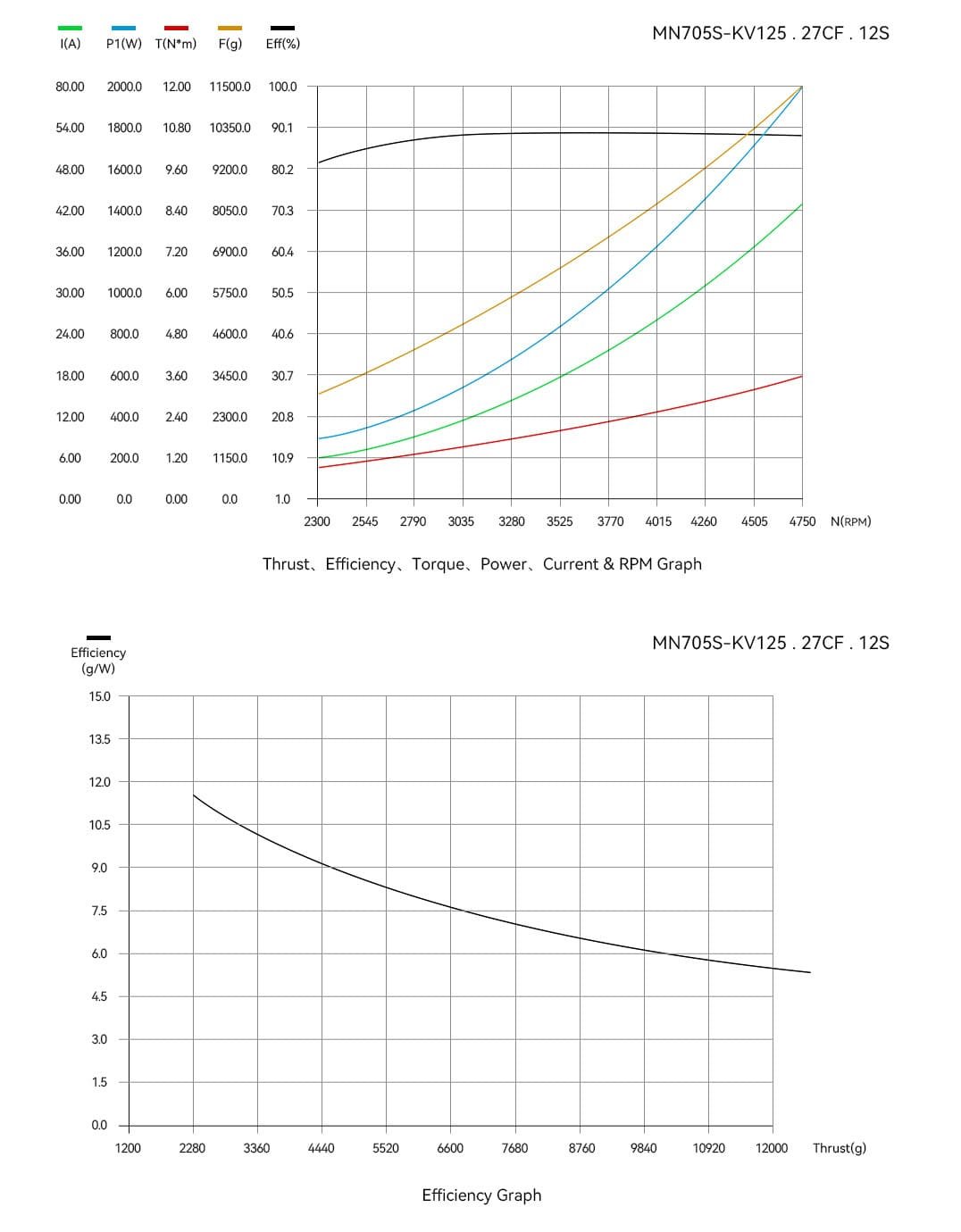

| Analysis Chart | ||||||||||
 |
||||||||||
| Packing List | ||||||||||
 |
||||||||||
Related products
-

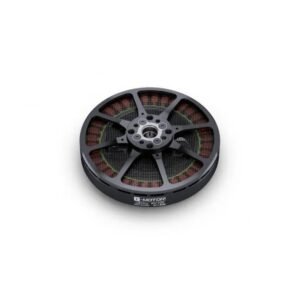

U8Ⅱ Lite Efficiency Type Multirotor UAV Motor
