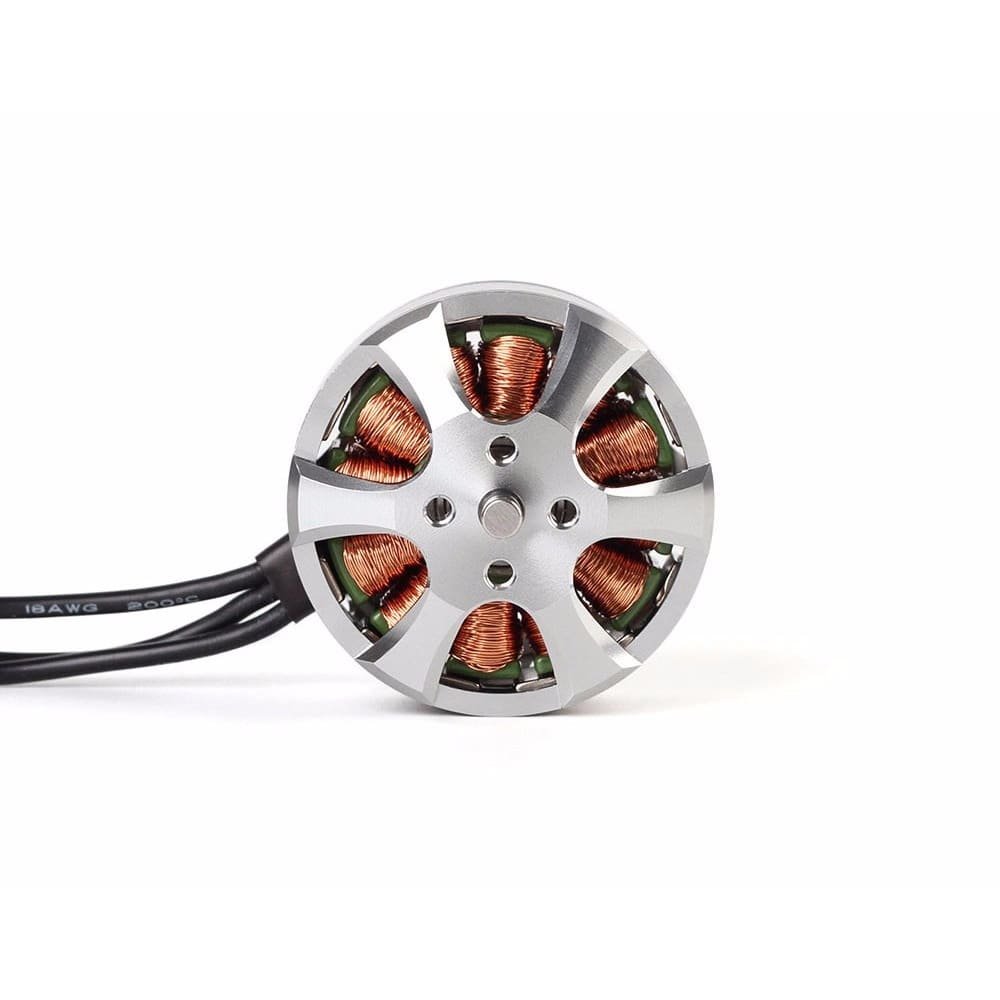

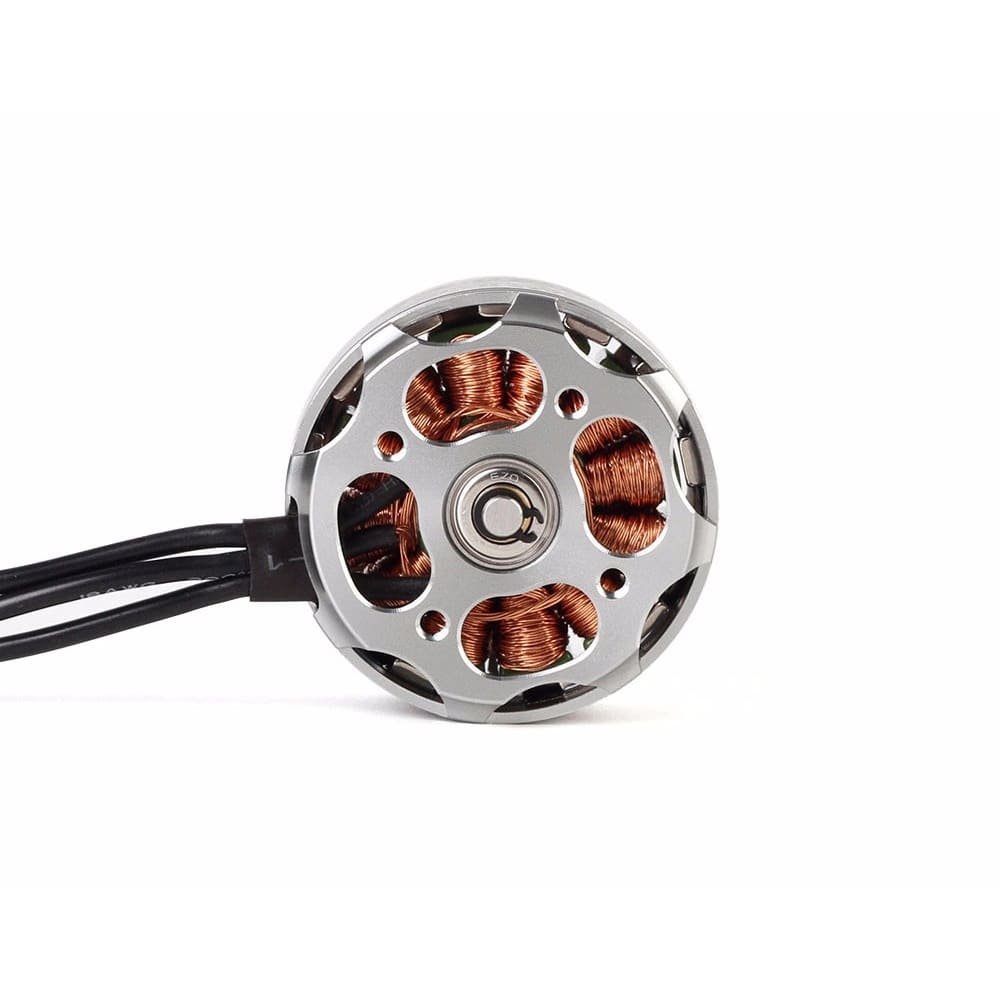

MN3510 Multirotor Fixed Wing UAV Motor

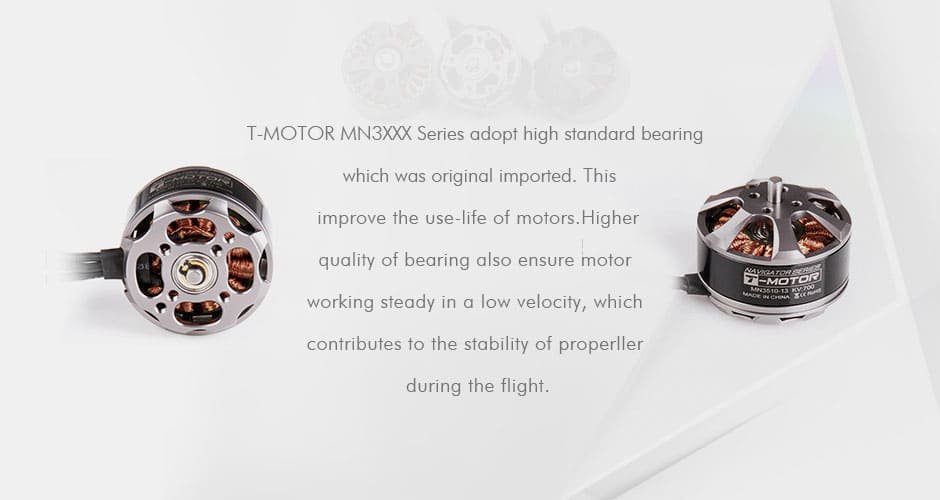

  • Qualified EZO bearing

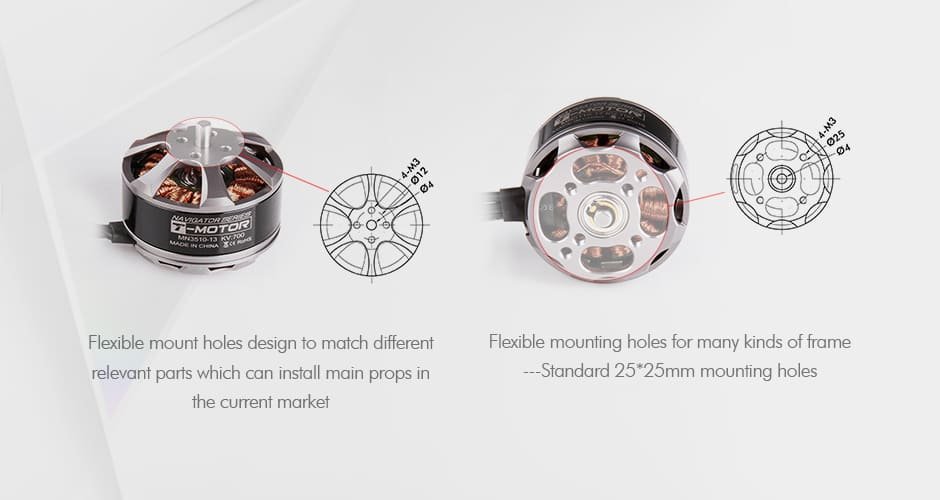

  • Flexible Mounting Holes

$79.90

Get a quote

Share on:

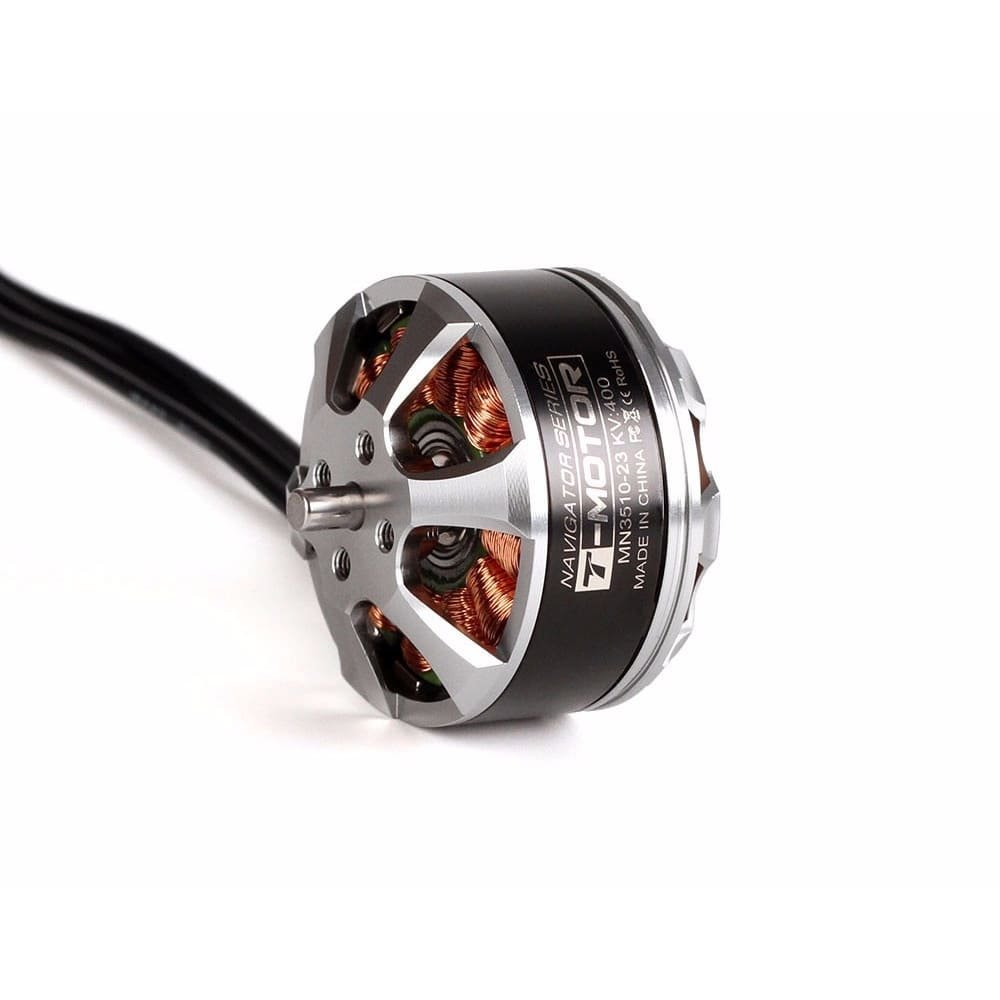

  • About T-MOTOR MN3510 Multirotor Fixed Wing UAV Motor KV360/KV630/KV700
    T-Motor MN3510 KV360/KV630/KV/700 Navigator Series brushless motor is designed for superior performance in UAV applications. With oversized high-quality ball bearings, it ensures smooth, stable operation at low speeds and withstands pressure for enhanced frame stability. Featuring a maximum thrust of 2.2kg and an MTBF of about 1000 hours, the MN3510 offers exceptional balance and durability. Ideal for multi-rotors, VTOL, and fixed-wing UAVs, it combines precision engineering with high-strength construction for reliable, long-lasting performance.
  • Navigator MN3510 Highlights:
    Max. thrust:2.2kg
    MTBF：About1000hours
    Features：Super Balance; High Strength Construction
  • Application Areas:
    Multi-rotors, VTOL, and Fixed-wing UAVs.

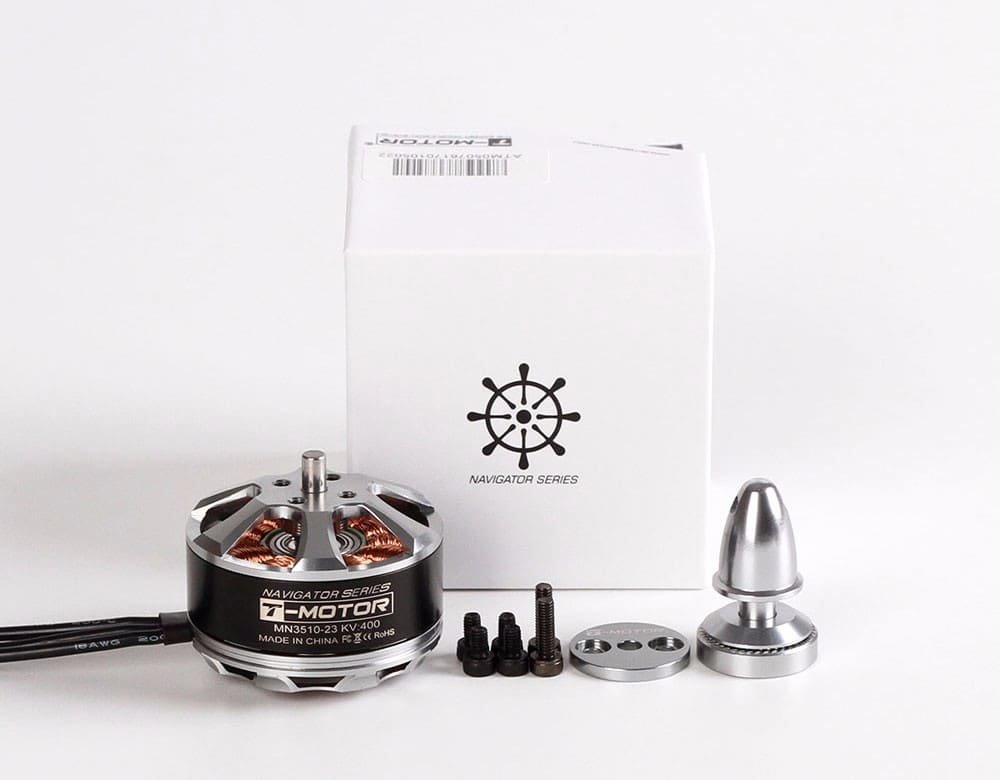

  • Packing List Includes:
    1x T-MOTOR MN3510 Motor KV360/KV630/KV700( kv which you choose)

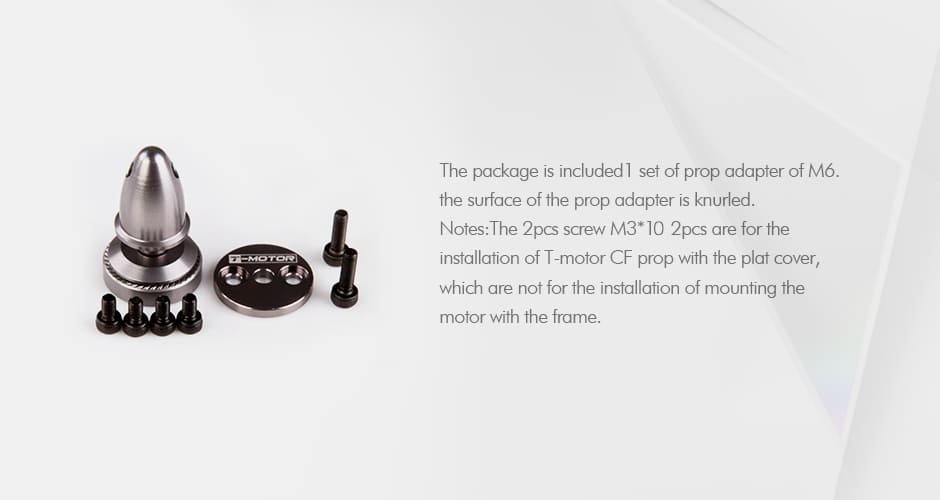

    1x Hardware pack

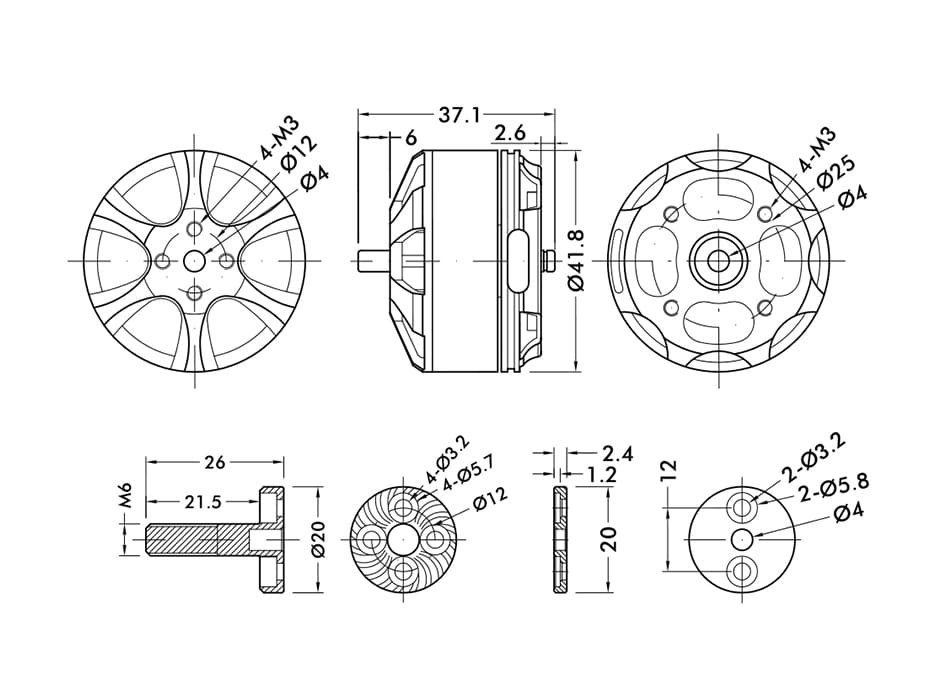

Technical Drawing
Specification
Test ItemMN3510 KV360Configuration12N14P
Internal Resistance188mΩMotor DimensionsΦ41.8×28.5mm
Shaft Diameter4mmStator Height10mm
Stator Diameter35mmCable Length600mm
AWG18#Weight Excluding Cables97g
Weight Including Cables117gIdle Current@10v0.4A
No.of Cells(Lipo)3-6SMax Continuous Current 180S15A
Max Power (180S)330W
Test ItemMN3510 KV630Configuration12N14P
Internal Resistance65mΩMotor DimensionsΦ41.8×28.5mm
Shaft Diameter4mmStator Height10mm
Stator Diameter35mmCable Length600mm
AWG18#Weight Excluding Cables97g
Weight Including Cables119gIdle Current@10v0.5A
No.of Cells(Lipo)3-4SMax Continuous Current 180S22A
Max Power (180S)495W
Test ItemMN3510 KV700Configuration12N14P
Internal Resistance50mΩMotor DimensionsΦ41.8×28.5mm
Shaft Diameter4mmStator Height10mm
Stator Diameter35mmCable Length600mm
AWG18#Weight Excluding Cables97g
Weight Including Cables118gIdle Current@10v0.5A
No.of Cells(Lipo)3-4SMax Continuous Current 180S25A
Max Power (180S)555W
Test Data

Item No.		Voltage
(V)		PropThrottleCurrent
(A)		Power
(W)		Thrust
(G)		RPMEfficiency
(G/W)		Operating
Temperature
(℃)
MN3510

KV360		14.8T-MOTOR

14*4.8CF		50%1.217.76280260015.7740
65%2.537.00500340013.51
75%3.551.80620380011.97
85%4.972.52760430010.48
100%5.784.36870460010.31
T-MOTOR

15*5CF		50%1.522.20340260015.3242
65%344.40580330013.06
75%4.566.60760380011.41
85%5.885.84900410010.48
100%6.8100.64100044009.94
T-MOTOR

16*5.4CF		50%1.7325.60380245014.8440
65%3.653.28630320011.82
75%5.378.44800370010.20
85%6.9102.12100040009.79
100%8.1119.88110043009.18
22.2T-MOTOR

12*4CF		50%1.635.5235043009.8543
65%2.759.9456053009.34
75%488.8076060008.56
85%5.5122.1093066007.62
100%6.4142.08106070007.46
T-MOTOR

13*4.4CF		50%1.839.96460420011.5143
65%3.475.4873053009.67
75%4.8106.5690059008.45
85%6.2137.64110065007.99
100%7.5166.50130069007.81
T-MOTOR

14*4.8CF		50%2.555.50660400011.8950
65%4.7104.34100049009.58
75%6.8150.96128055008.48
85%8.8195.36150060007.68
100%10.6235.32170065007.22
T-MOTOR

15*5CF		50%366.60780380011.7160
65%5.6124.32118045009.49
75%7.7170.94146053008.54
85%10.6235.32170057207.22
100%12.5277.50190060406.85
MN3510

KV630		14.8T-MOTOR

12*4CF		50%2.841.44440450010.6243
65%5.378.4475057009.56
75%7.6112.4891065008.09
85%10148.00110070007.43
100%12.3182.04126075006.92
T-MOTOR

13*4.4CF		50%3.450.32540450010.7344
65%6.190.2886055009.53
75%8.8130.24110063008.45
85%11.8174.64130068007.44
100%14207.20150073007.24
T-MOTOR

14*4.8CF		50%4.668.08700410010.2853
65%8.7128.76111053008.62
75%11.8174.64136057007.79
85%16.4242.72170063007.00
100%20296.00185066006.25
MN3510

KV700		11.1T-MOTOR

12*4CF		50%2.527.75350400012.6140
65%4.853.28550490010.32
75%6.673.2670055009.56
85%9.1101.0187063008.61
100%11.1123.21100066008.12
T-MOTOR

13*4.4CF		50%2.932.19400380012.4342
65%5.662.16650490010.46
75%7.987.6983053009.47
85%10.5116.55100060008.58
100%12.6139.86110064007.87
T-MOTOR

14*4.8CF		50%4.145.51550350012.0943
65%7.785.47890450010.41
75%10.7118.77106049008.92
85%14.5160.95130055008.08
100%17.3192.03146058007.60
14.8T-MOTOR

11*3.7CF		50%3.247.3646053009.7143
65%688.8071065008.00
75%8.2121.3687075007.17
85%11162.80108082006.63
100%13192.40123087006.39
T-MOTOR

12*4CF		50%3.856.24580500010.3143
65%7.4109.5288063008.04
75%10.3152.44110073007.22
85%14207.20136077006.56
100%16.8248.64160083006.44
T-MOTOR

13*4.4CF		50%4.769.56730490010.4947
65%9133.20112061008.41
75%12.3182.04140068007.69
85%16236.80160074006.76
100%19.4287.12180078506.27

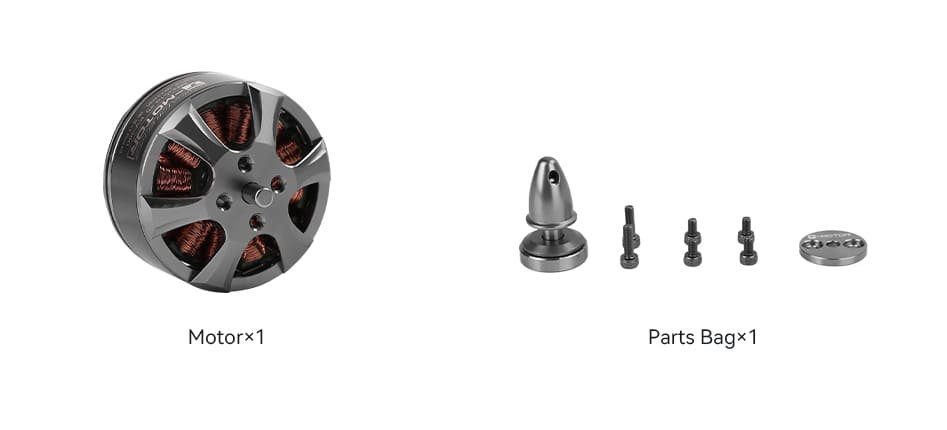

Packing List
