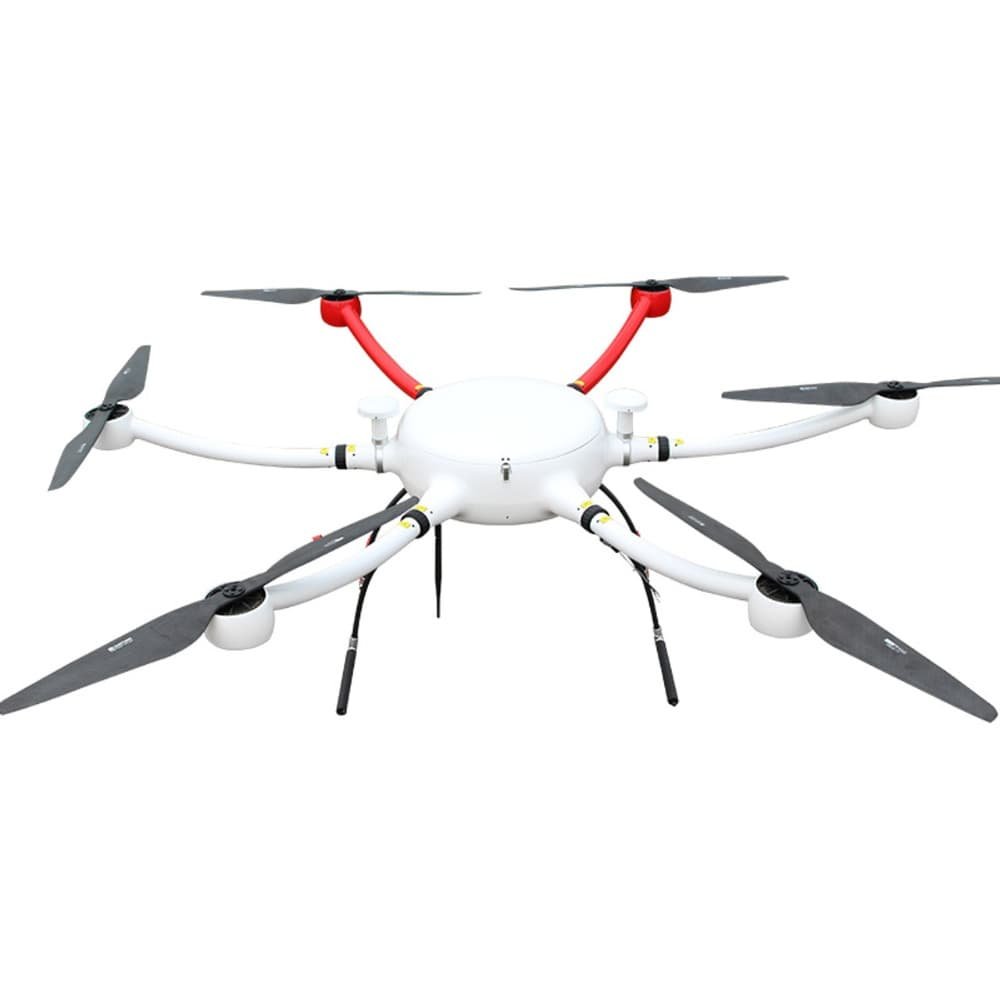

Luminix1600L Heavy Lift Hexacopter for Mapping & Surveying Solutions
The Luminix 1600L RTF hexacopter is a powerful and versatile flight platform designed for mapping, surveying, and search and rescue applications.
$0.00
Share on:
- Introduction. The Monocoque carbon fiber waterproof structure, along with the latest redundant electronic systems and HD video transmission, ensures this camera drone performs reliably in any weather, including rain and extreme temperatures, even below freezing.
- Long flying time. Thanks to its lightweight design and powerful propulsion system, the Luminix YD6-1600L RTF drone can fly for 61 minutes with a 2kg payload and 47 minutes with a 5kg payload.
- Good for drone customization. The 1600L frame features a large center frame that can accommodate more devices, making it an ideal platform for customizing your drone.
- Waterproof. The 1600L RTF quadcopter has an IP43 rating, which allows it to carry out missions in harsh conditions.
- Hight-performance and stable propulsion system. The 1600L RTF camera drone uses the T-Motor propulsion system, which has been proven to be of high quality and stability.
- Easy for transportation, quick to set up. The 1600L frame has detachable arms, making the drone easy to transport. The setup of the drone can be completed in just 5 minutes.
- Multiple payload options. The 1600L RTF flight platform is compatible with Luminix drone gimbals, cameras, and other payloads such as a drone megaphone.
- No piloting skills needed. The LAUNCH ground control software used by the 1600L drone is designed for beginners, allowing pilots without any flight experience to fly the drone easily. Click here for more details.
What is included
RTF combo with T-Motor propulsion system (RC with 10KM range control and telemetry)
1 x YD6-1600L carbon fiber quadcopter frame
6 x T-Motor motor
6 x T-Motor ESC
3 x Falcon 29*8.7 inch propeller
1 x CUAV V5+ Flight Controller with NEO V2 GPS module
1 x YR16S 16 Channel Radio Controller
2 x Tattu 6S 32000mAh 22.8V high voltage lipo
1 x Assemble and test service
1 x LAUNCH ground control software
Options
Flight controller: Pixhawk Cube Orange, DJI N3, DJI A3, DJI A3 Pro, AheadX Taurus 2, AheadX LEO 2
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)
| Wheelbase | 1600mm |
| Wingspan | 2350mm |
| Endurance | 61min / 2kg payload, 47min /5 kg payload. Drone batteries are excluded from the payload. |
| MTOW | 25KG |
| Suggested max payload (battery excluded) | 10KG |
| Max Cruise Speed | 72km/h |
| Anti Wind Capability | Max 12m/s |
