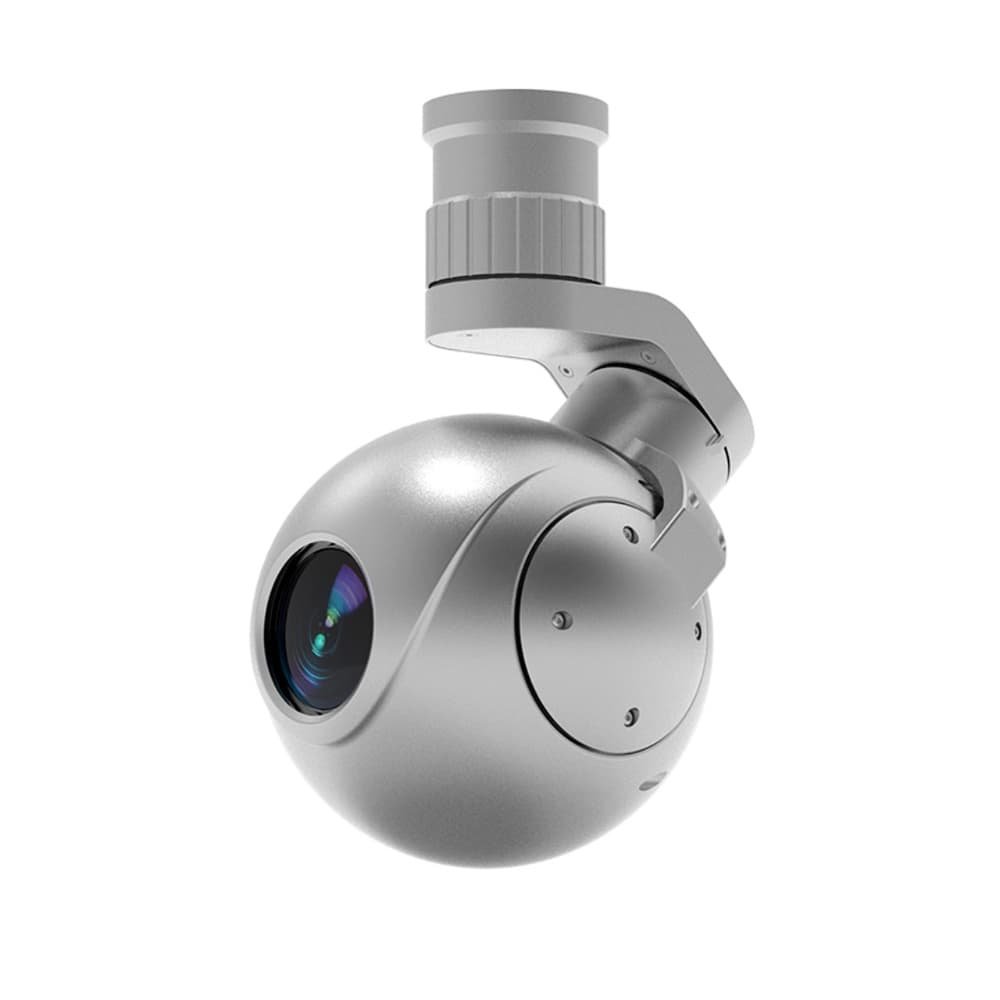

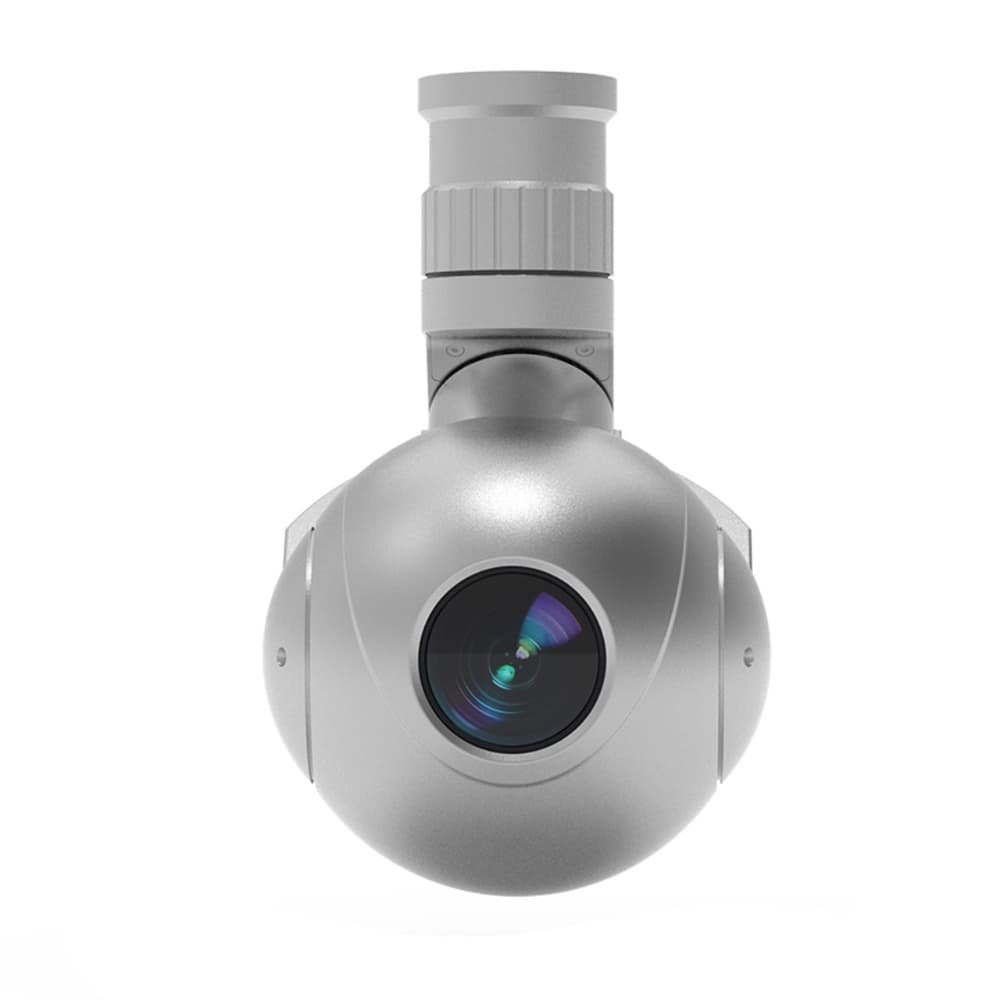

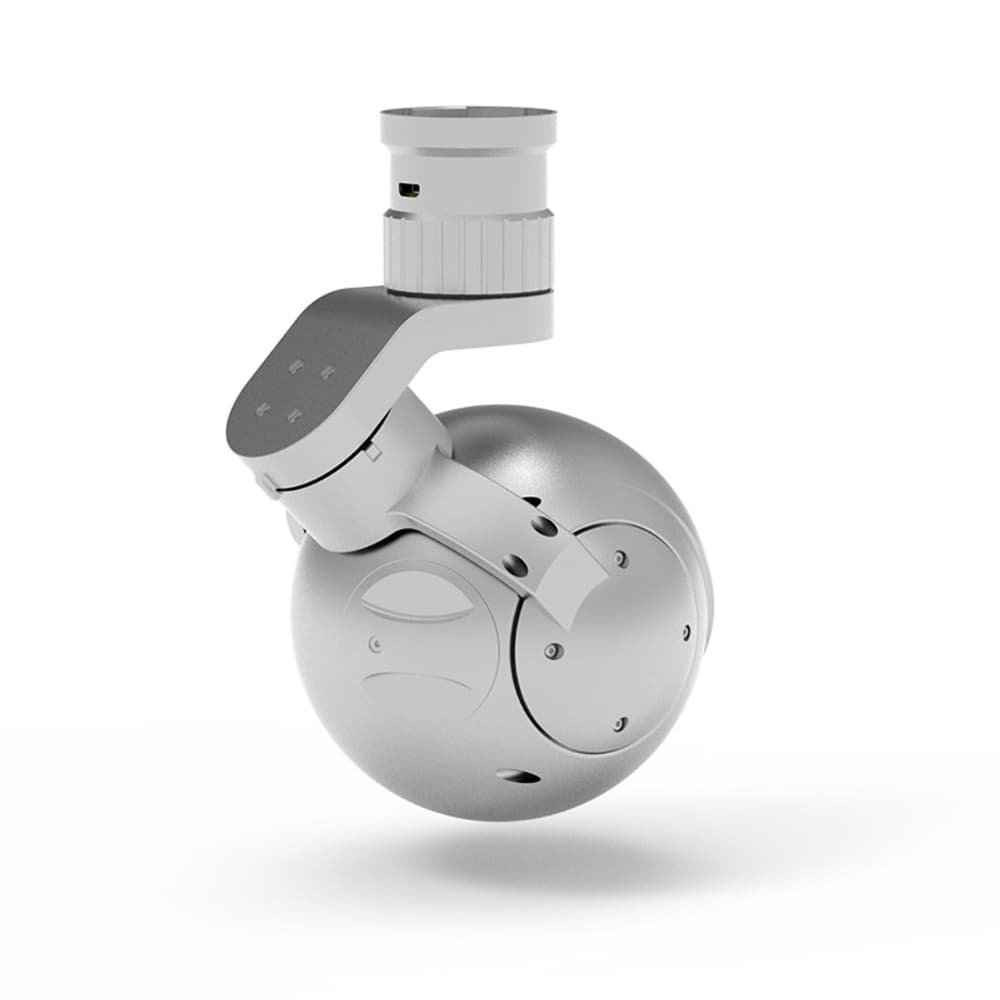

Luminix Sky Eye 30Hz 1080P 30X Zoom Camera for Drone
The Sky Eye-30HZ-S is a 3-axis highly stabilized gimbal with a 1080P 30X zoom camera designed for drone inspection, surveillance, search, and rescue applications. The camera block is the SONY FCB-EV9520L, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability, allowing you to see every detail from the air even when you are far from the object.
$0.00
Share on:
The Sky Eye-30HZ-S is a 3-axis highly stabilized gimbal with a 1080P 30X zoom camera designed for drone inspection, surveillance, search, and rescue applications. The camera block is the SONY FCB-EV9520L, which provides 1080P 60FPS full HD video streaming and up to 360X zoom capability, allowing you to see every detail from the air even when you are far from the object.

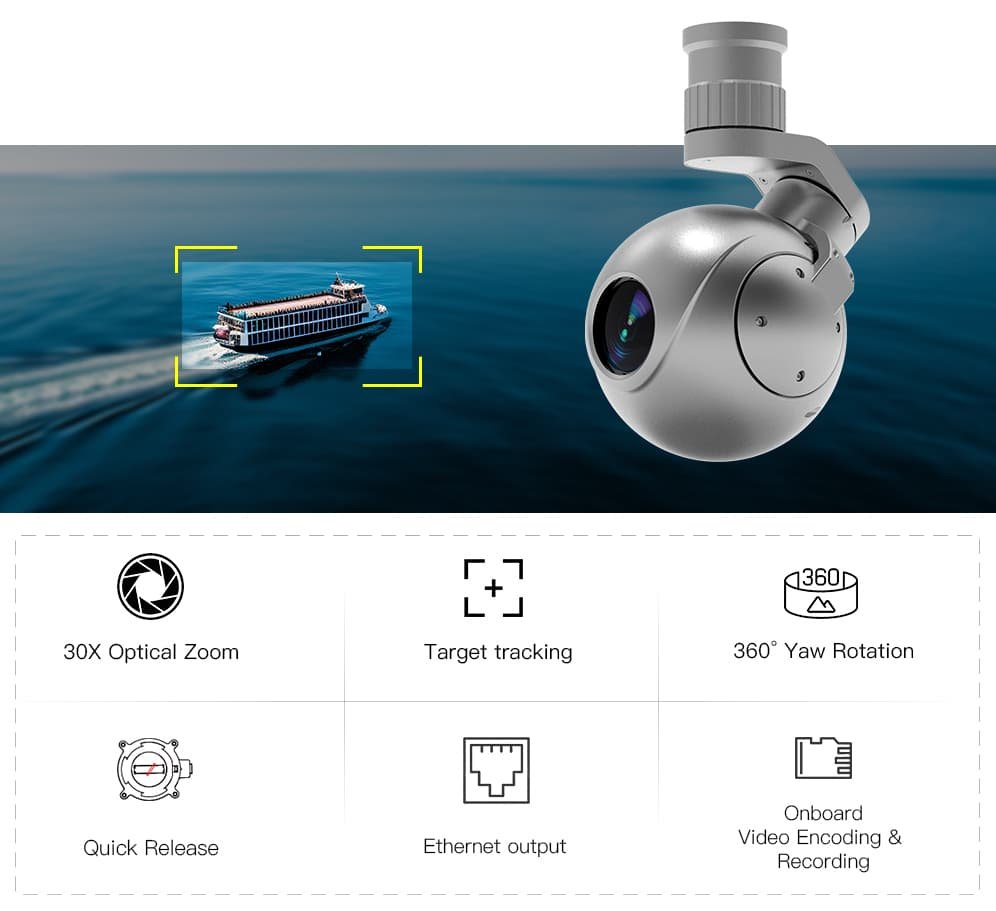

Powerful zoom capability
30x optical zoom, 12x digital zoom, 1080P 30fps video streaming.

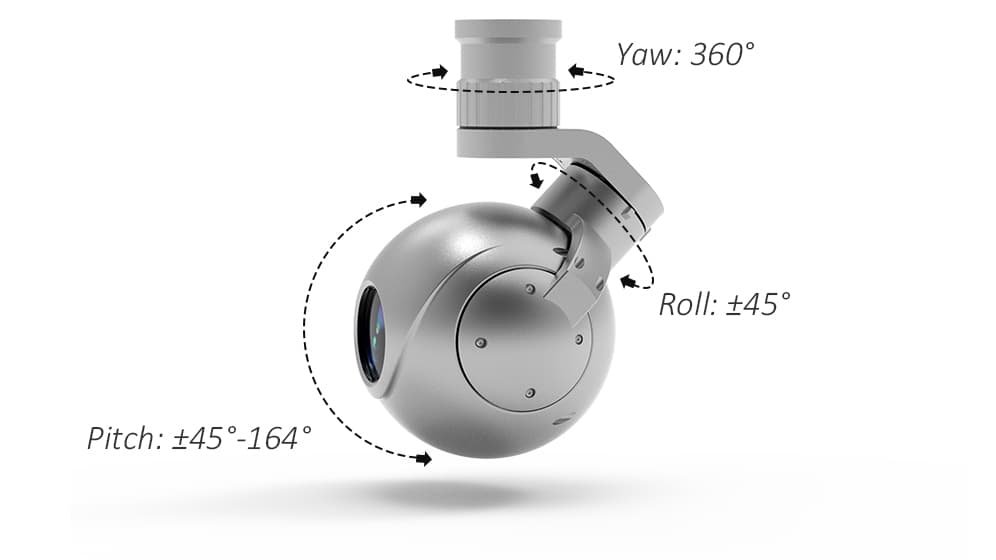

High-precise 3-axis gimbal with 360-degree rotation
Powered by a dedicated sensor, the high-performance 3-axis gimbal has a control accuracy of ±0.02°, ensuring crystal clear video footage.

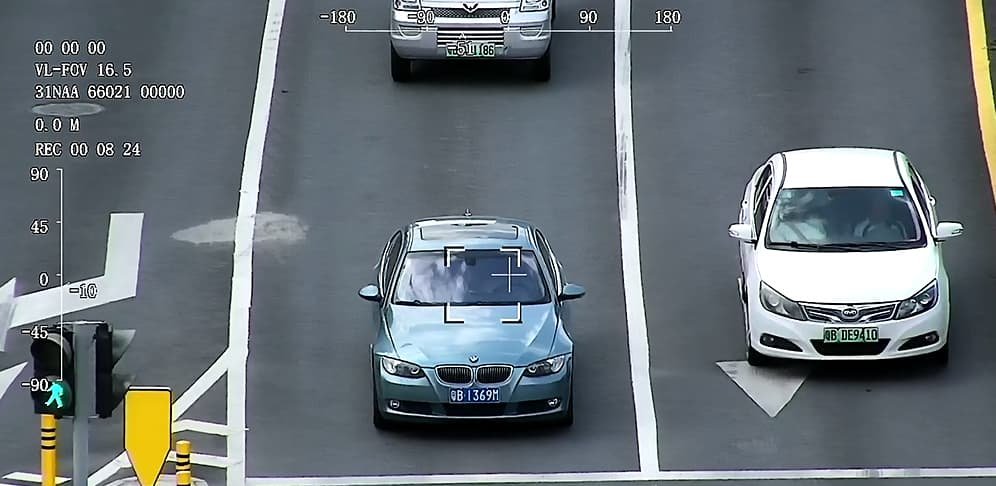

Auto object tracking
Based on cross-correlation, tracking, and object miss recapturing algorithms, the Sky Eye-30HZ-S 30X daylight zoom camera can achieve continuous and stable tracking.

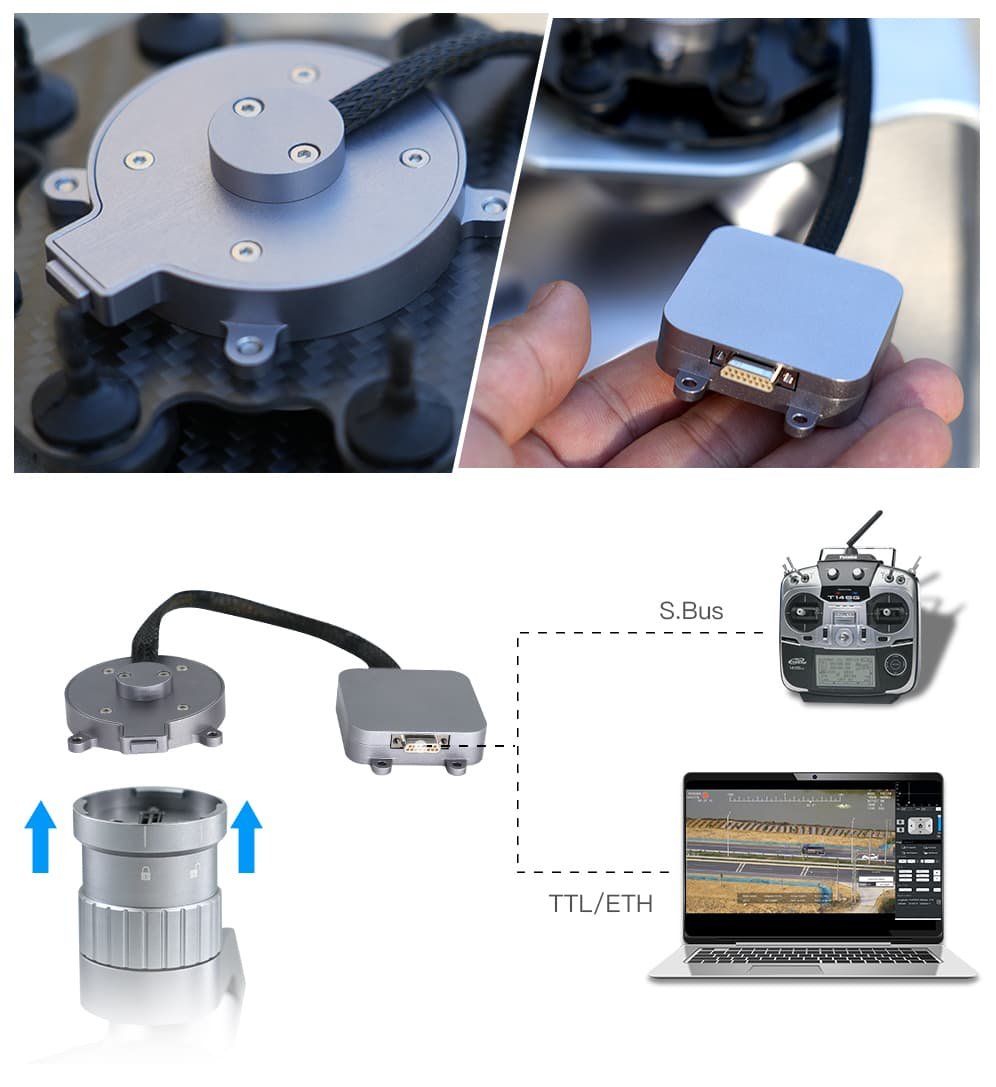

Simple gimbal control
The 3-axis drone gimbal supports S.bus, TTL serial port, and Ethernet. With the help of YDlink gimbal control software, controlling the gimbal is simple and easy.

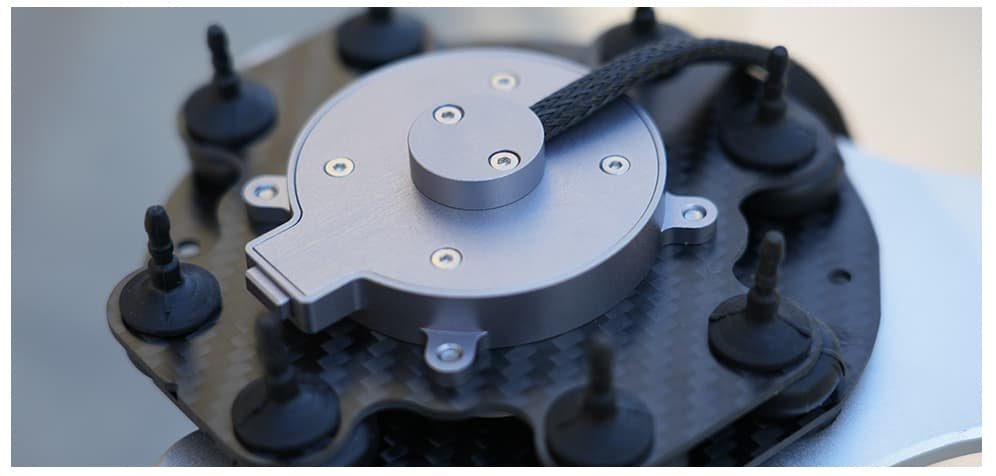

Clean wiring
The 30X daylight drone zoom camera uses only one cable for data and video transmission, making your internal wiring simple and clean.

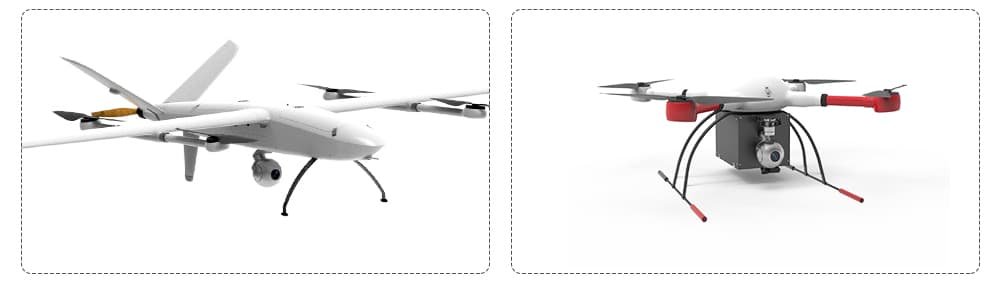

Born for multiple flight platforms
The streamlined aerodynamic design of the gimbal helps significantly reduce air drag during flight, making it an ideal fit for multicopter and VTOL fixed-wing flight platforms.
MAVLINK compatible
The Sky Eye-30HZ-S drone gimbal is compatible with drones powered by PX4 and Ardupilot, making integration relatively easy.

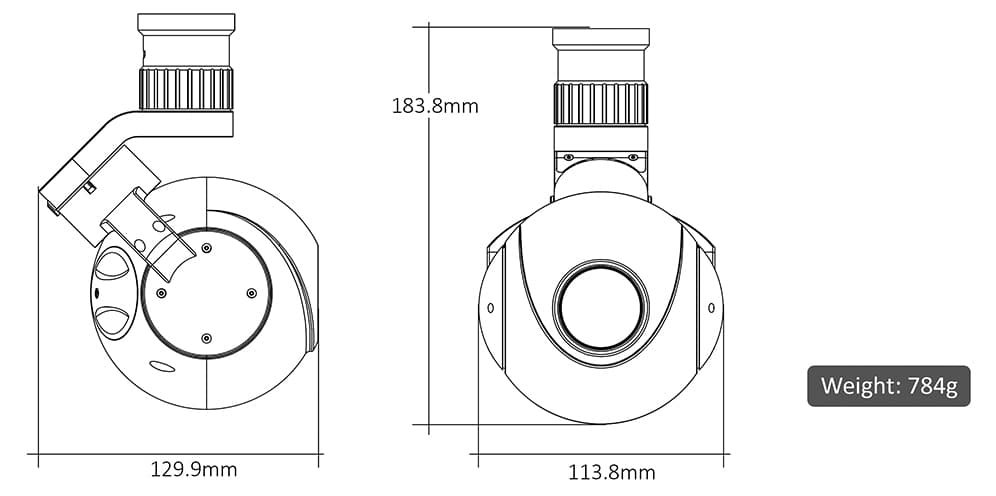

Dimension and weight

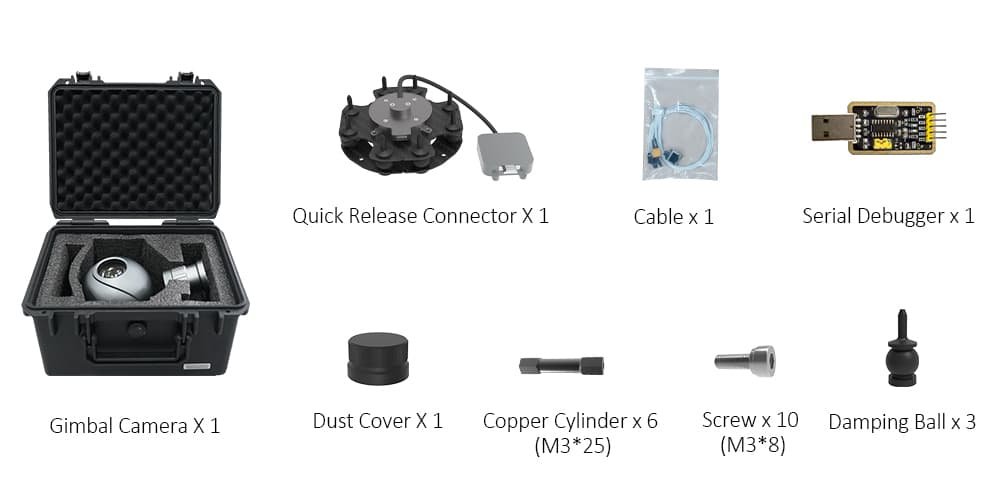

Packing list
| 30X zoom camera(SONY FCB-EV9520L) | |
| Sensor | 1/2.8 inch 2.13MP CMOS SENSOR |
| Video Output | 1080P/60 HDMI and Ethernet |
| Video recorded | 1080P/30 MP4 |
| Focal length | 30X optical focal zoom, 4.3-129mm |
| Digital zoom | 12X(360X with optical zoom) |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) |
|
| Wide Dynamic | Up to 105dB |
| Auto focus | Less than 1S |
| Low illumination | 0.05lux@F1.6 |
| Aperture | Φ 16.0 |
| Gimbal system | |
| Input voltage | 12V |
| Rotate range | Pitch: ±90° Roll: ±45° Yaw: ±150° |
| Angle amount of jitter | Pitch and roll: ±0.02° Yaw: ±0.03° |
| Control interface | PWM, S.Bus, serial command, and software control via Ethernet |
| Working Current | Static current: 650mA(@12V) |
| Dynamic current: 850mA(@12V) | |
| Mechanical feature |
|
| Total weight (gimbal and camera) | 779±5g |
| Working temperature | -10° ~ +50° |
