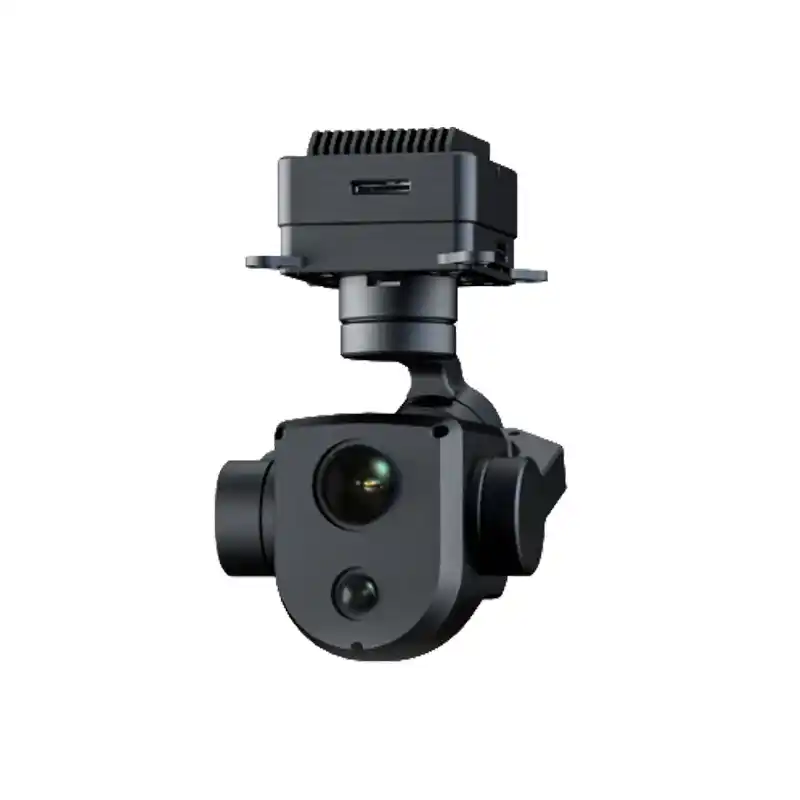

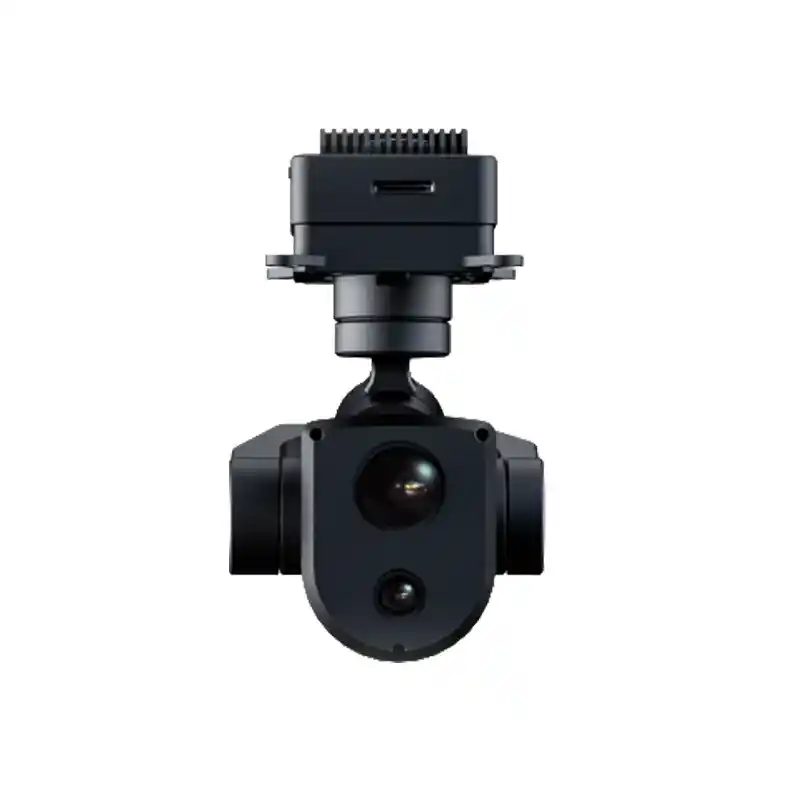

K11 Dual-Sensor Tracking Gimbal Camera
The K11 is a dual-light gimbal camera specially designed for unmanned platforms. Equipped with dual 48MP visible light lenses, it delivers stable and clear imaging, supporting up to 16x hybrid zoom to observe long-distance targets and capture rich detail. It significantly improves operational efficiency in inspection, mapping, security and other missions. The K11 integrates a 3-axis stabilization system and supports forward, downward, and manual angle adjustment. Combined with intelligent image processing algorithms, it ensures consistent image quality and clarity across various flight conditions. Its compact design and lightweight structure make it suitable for fixed-wing UAVs, multi-rotor UAVs, and VTOL platforms, providing an efficient and reliable visual solution for various aerial observation tasks.
You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.
3-Axis Gimbal System
- Gimbal Type: 3-Axis Mechanical Stabilized Gimbal
- Weight: 195g ± 5g
- Operating Voltage: 12V–18V
Software Limit Angle
- Pitch: -90° to +30°
- Yaw: -120° to +120°
Mechanical Range
- Pitch: -135° to +45°
- Roll: -45° to +45°
- Yaw: -135° to +135°
- Maximum Control Speed: 180°/s
- Angular Vibration Accuracy: ±0.005°
- Interface: Network Interface / TTL / SBUS
- Gimbal Modes: Recognition, Auto-Tracking
- Operating Temperature: -40°C to +65°C
- Communication Protocol: HEQ Proprietary Protocol
- Protection Rating: IP54
- Power Consumption: 12W
Wide-Angle Camera
- Sensor Size: 1/2″
- Effective Pixels: 48MP
- Focal Length: 4.49mm
- Aperture: F2.8
Field of View
- Horizontal: 71°
- Vertical: 56°
- Diagonal: 84° ± 1°
Telephoto Camera
- Sensor Size: 1/2″
- Effective Pixels: 48MP
- Focal Length: 15.2–50mm
- Aperture: F3.7–F4.6
Field of View
- Horizontal: 7.4°
- Vertical: 5.6°
- Diagonal: 9.3°
Video & Imaging
- Hybrid Zoom: 160×
- Optical Zoom: 11×
- Visible-Light Resolution: 48MP (Wide-Angle + Telephoto)
- Video Resolution: 4K @ 30fps
- Photo Format: JPG
- Video Format: MP4
- Encoding Format: H.264 / H.265
- AI Recognition & Tracking: Supported
Packing List: K11 Dual-Sensor Gimbal Camera
