HEQ H50T Penta-Sensor AI Gimbal Camera

$9,699.00

- +

Share on:

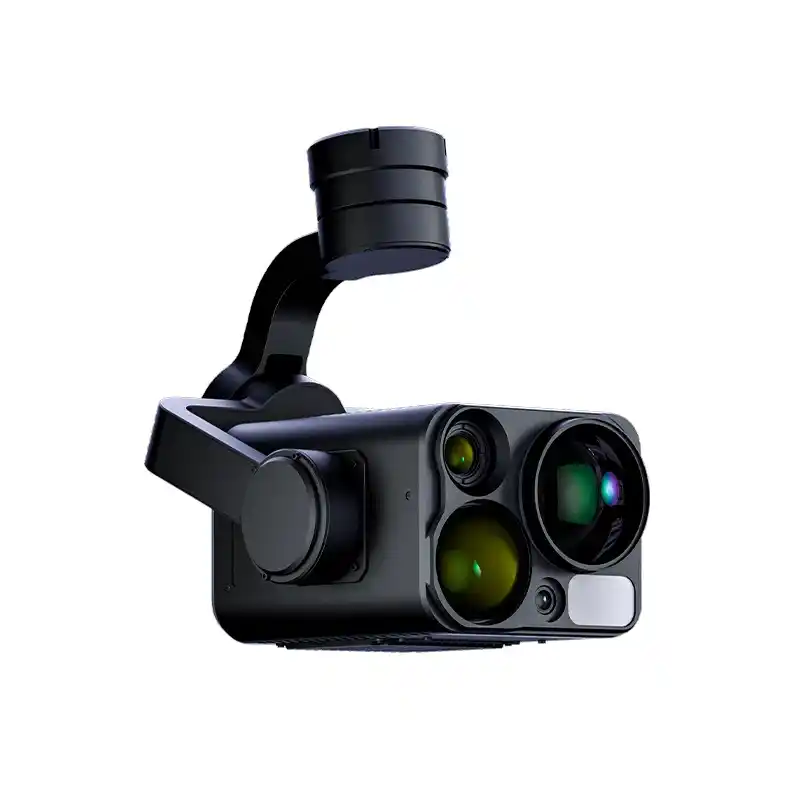

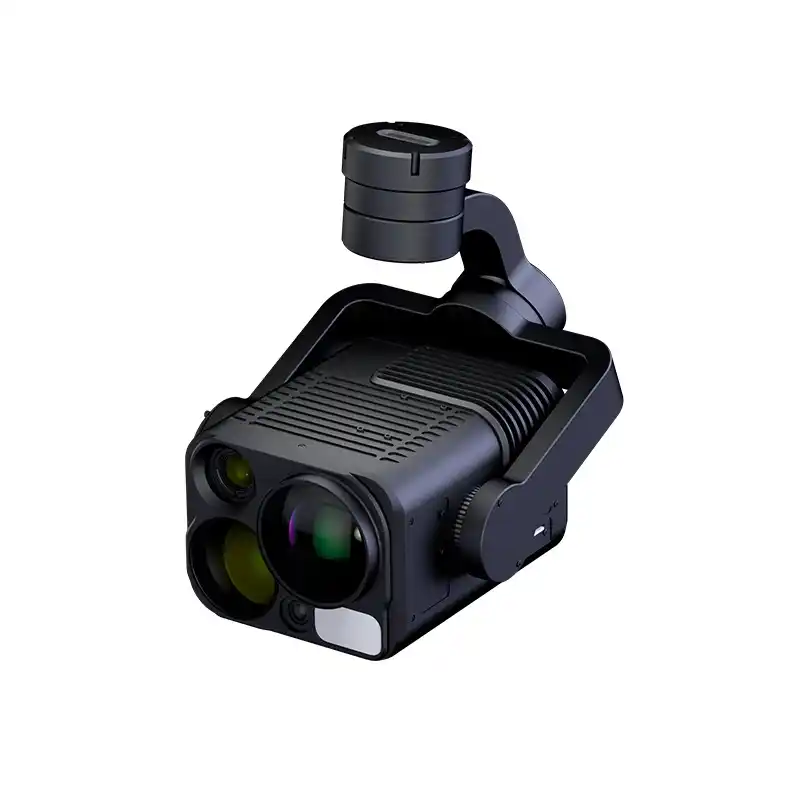

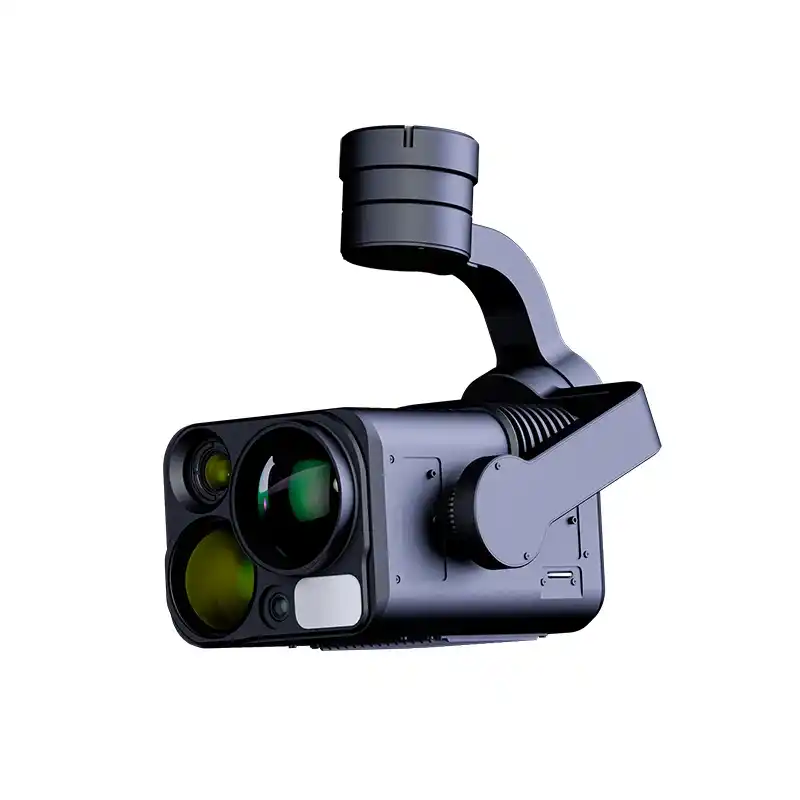

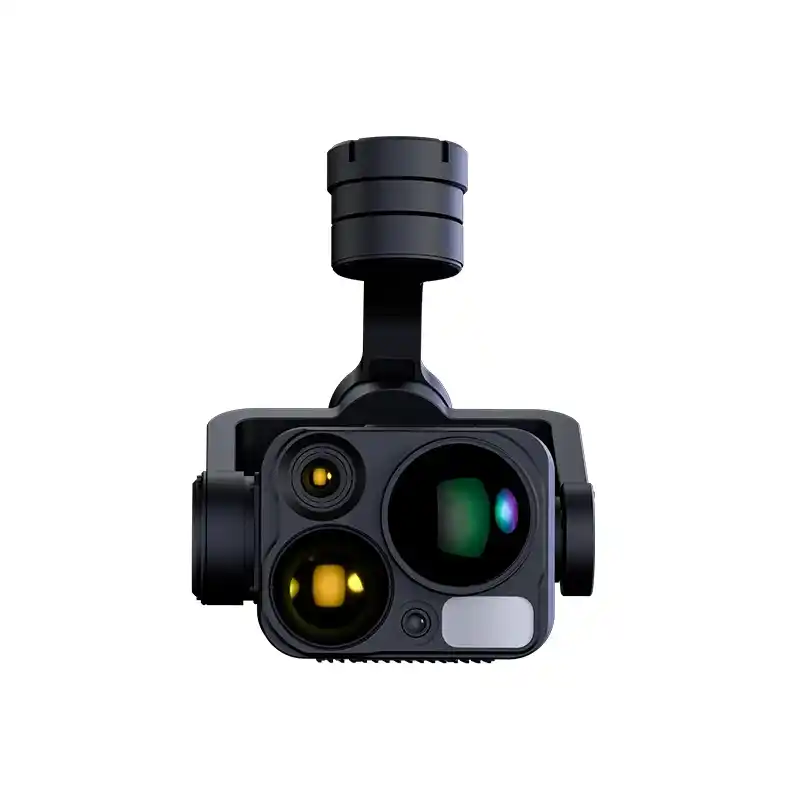

H50T Penta-Sensor AI Gimbal Camera

H50T is a powerful three-axis AI five-optical gimbal camera, featuring high stability, high precision, and high sensitivity. The device integrates five sensors: an optical wide-angle camera with 4800w resolution, a 27× optical zoom camera with 4800w resolution, a wide-angle thermal imager with a 13mm focal length (13mm, 640×512 resolution), a long-focus thermal imager with a 45mm focal length (45mm, 640×512 resolution), and a 3km laser rangefinder.

The dual visible-light cameras can achieve 42× hybrid optical zoom, 84× FHD hybrid zoom, and 400× digital zoom. The dual thermal imagers can achieve 32× hybrid zoom, capable of detecting vehicles up to 1600 meters and humans up to 1000 meters. It supports user-defined split-screen display and storage/streaming of multiple video/photo formats, adaptable to different applications for each independent stream.

Most importantly, the H50T incorporates an open AI model conversion and deployment platform based on 6 TOPS computing power. It provides edge-computing capabilities on the gimbal camera for multiple recognition tasks (person/vehicle/vessel), target tracking, fire detection, and face/license plate recognition, while also offering various customized models for different mission requirements.

You can go to our HEQUAVTECH official website to download the Assistant software and Manuals.

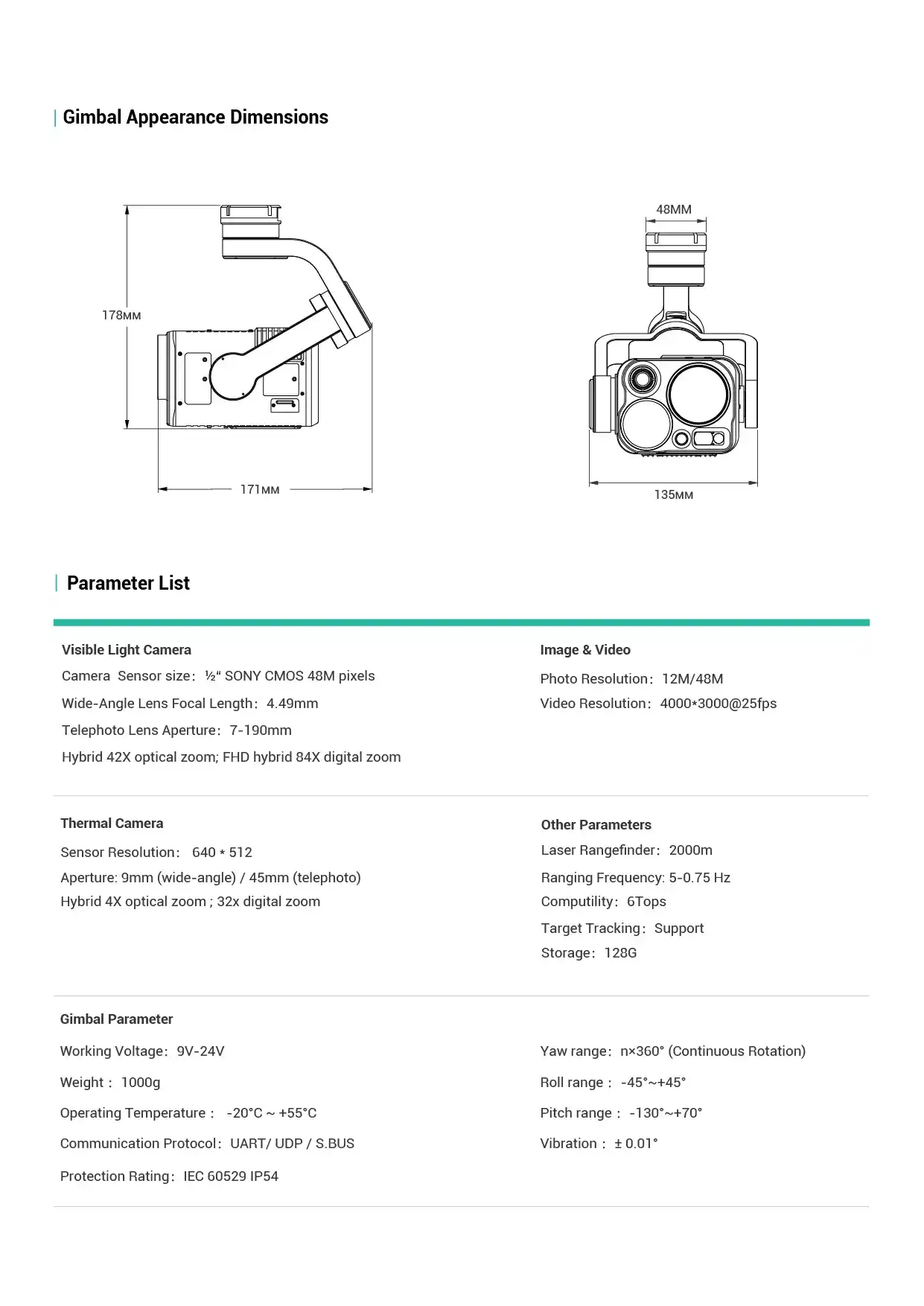

Visible Light Camera

  • Camera Sensor: 1/2″ SONY CMOS, 48MP
  • Wide-Angle Lens Focal Length: 4.49mm
  • Telephoto Lens Focal Length: 7–190mm
  • Zoom Capability: 42× Hybrid Optical Zoom, 84× FHD Hybrid Digital Zoom

Image & Video

  • Photo Resolution: 12MP / 48MP
  • Video Resolution: 4000 × 3000 @ 25fps

Thermal Camera

  • Sensor Resolution: 640 × 512
  • Aperture: 9mm (Wide-Angle) / 45mm (Telephoto)
  • Zoom Capability: 4× Hybrid Optical Zoom, 32× Digital Zoom

Other Parameters

  • Laser Rangefinder: 2000m
  • Ranging Frequency: 5–0.75Hz
  • AI Computing Power: 6 TOPS
  • Target Tracking: Supported
  • Storage Capacity: 128GB

Gimbal Parameters

  • Working Voltage: 9V–24V
  • Weight: 1000g
  • Operating Temperature: -20°C to +55°C
  • Communication Protocol: UART / UDP / S.BUS
  • Protection Rating: IEC 60529 IP54
  • Yaw Range: n × 360° (Continuous Rotation)
  • Roll Range: -45° to +45°
  • Pitch Range: -130° to +70°
  • Stabilization Accuracy: ±0.01°

Packing List: H50T Penta-Sensor AI Gimbal Camera *1
