H16 2.4GHz Long Range Portable Ground Control Station

Weight: 1.00 KGS
Version: H16, H16pro
MIPI Camera

$859.00

Share on:

The H16 is a portable, cost-effective ground control station that integrates video link, data link, RC, and Android system into one device, offering low latency, strong anti-interference performance, and long transmission range.

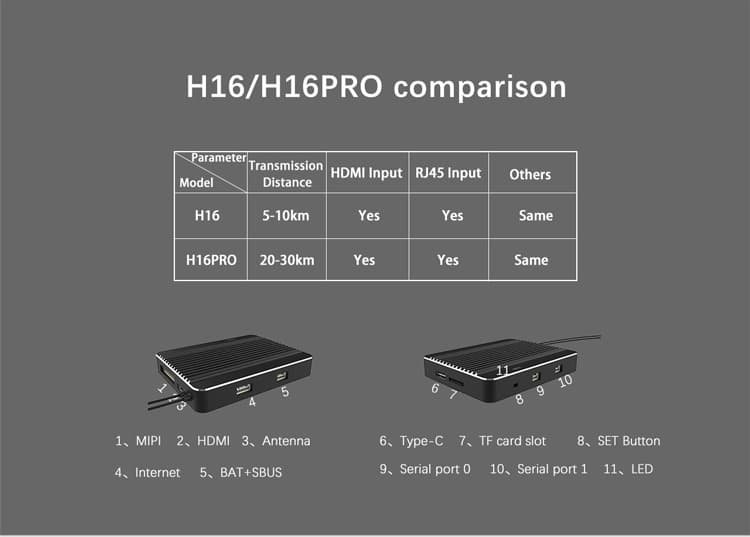

The H16 series comes in two versions: H16 and H16 Pro. The H16 has a maximum transmission range of 10 km, while the H16 Pro can reach up to 30 km.
The H16 series GCS features a 7-inch FHD high-brightness screen with a resolution of 1920*1200 and a maximum brightness of 2000nit, making it fully usable in direct sunlight.
Running on Android, the H16 series supports mainstream ground station software like QGC and features functions such as route planning, real-time flight status feedback, and more. It also supports video pause and wireless RTSP video streaming.

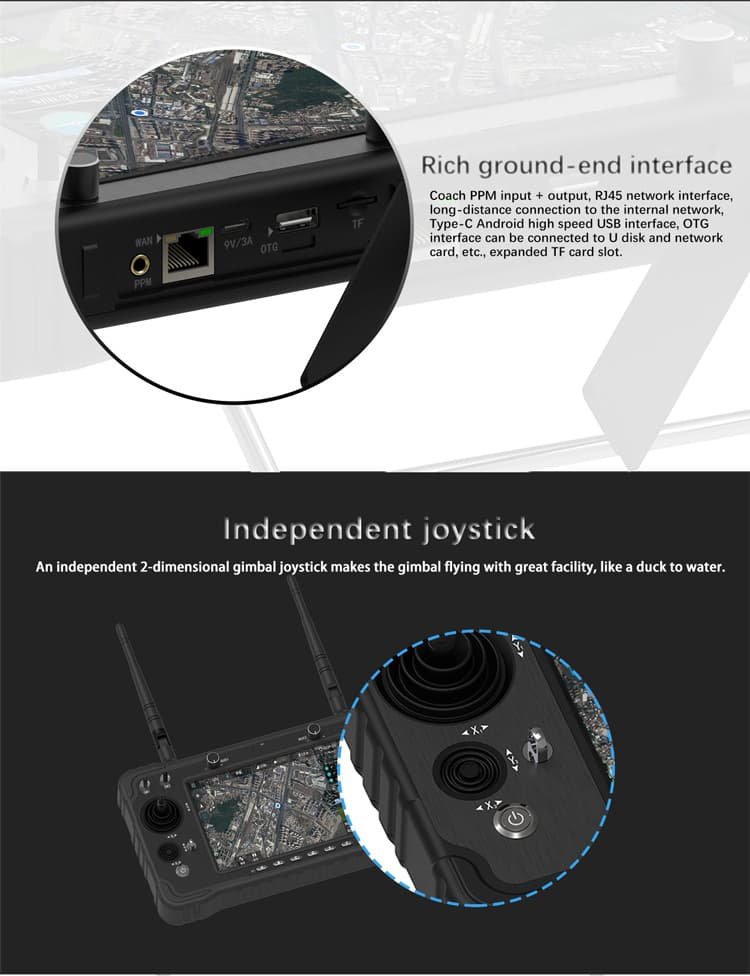

The H16 series offers high expandability with multiple interfaces including HDMI, RJ45, SBUS, PPM, sensor interfaces, UART, USB, etc.

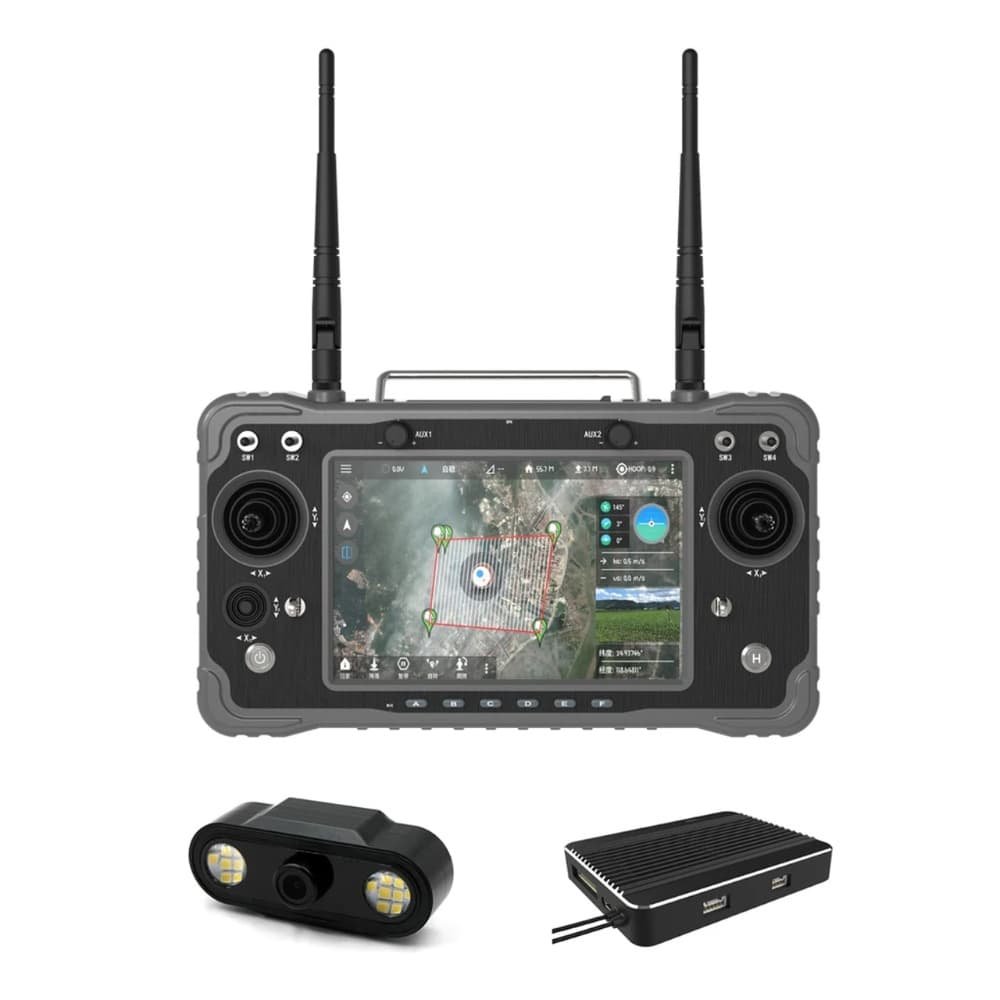

An optional 1080P MIPI camera is available for the H16.
The body, control switches, and all peripheral interfaces are designed with dustproof and waterproof features to ensure reliable performance in harsh environments.

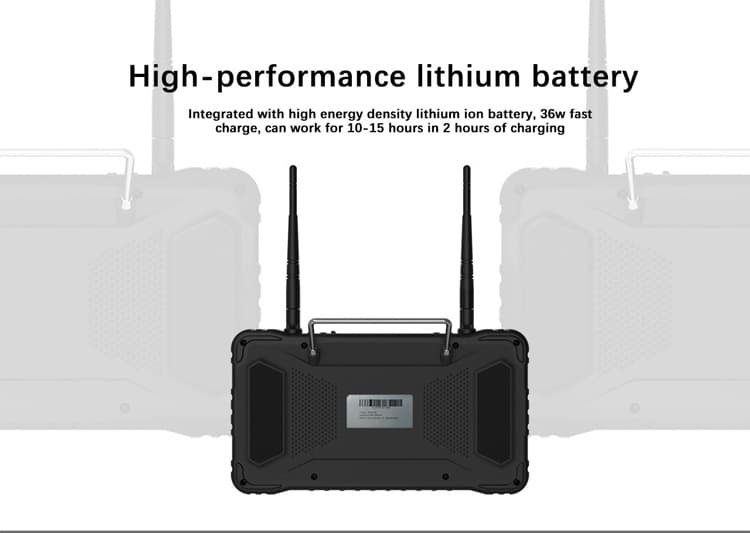

With a built-in 20000mAh lithium battery, the H16 offers up to 8 hours of operation on a full charge and supports 18W fast charging.
The H16 series is compatible with most drones and is ideal for applications like powerline inspections, police patrols, search and rescue, and more.

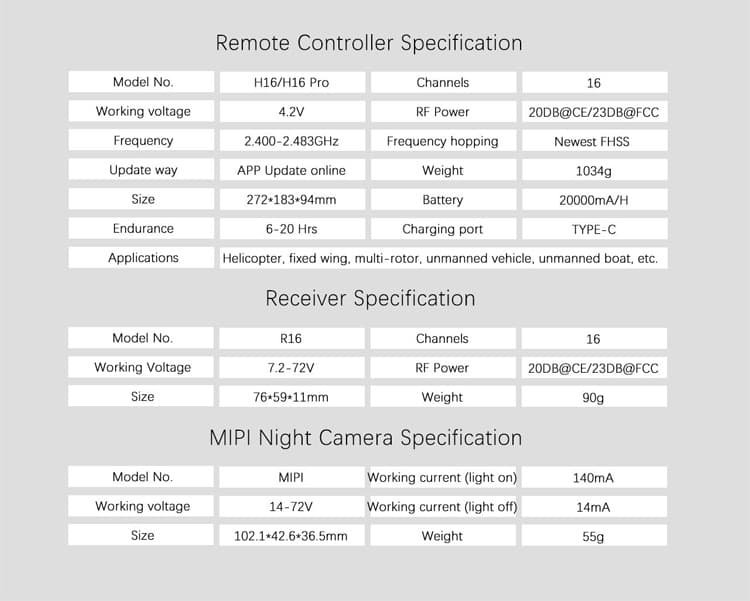

Specification
Weight: 1034g(controller)
Channel: 16
Working voltage: 4.2V
Frequency: 2.400GHz-2.483GHz
Battery Capacity: 20000mAh
Endurance: 8hours
Communication technology: FHSS
Transmission Distance: 10km; 30km (Video/data)

Receiver
Working Voltage:7.2-72V
Size:76*59*11mm
Weight:90g

MIPI Camera (optional)
Working Current: 14mA;140mA(with the light on)
Working Voltage:14-72V
Size:102.1*42.6*36.5mm
Weight:55g

Your Purchase Includes
1x H16 Ground Control Station
1x H16 Air Unit
2x Antenna for Ground Control Station
1x Charger for Ground Control Station
1x Type-C to HDMI Conversion Module
1x Neck Strap
1x Cable Package
