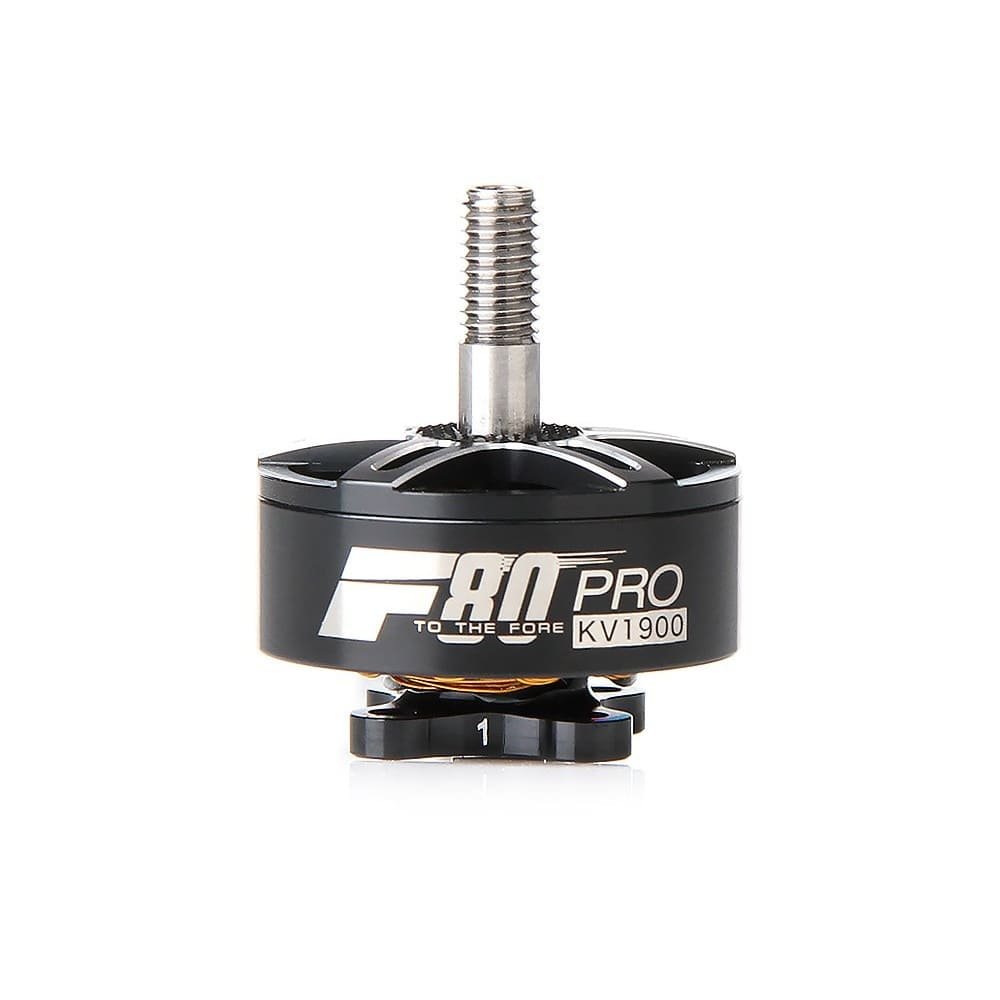

F80 PRO 3-6S FPV Racing Drone Motor
- Only 36.4g
- The max trust 2kg+
- Perfect for big frame as 300MM
- KV1900/KV2200 high efficient for long range ,KV2500 for Freestyle&Racing
$26.90
Share on:

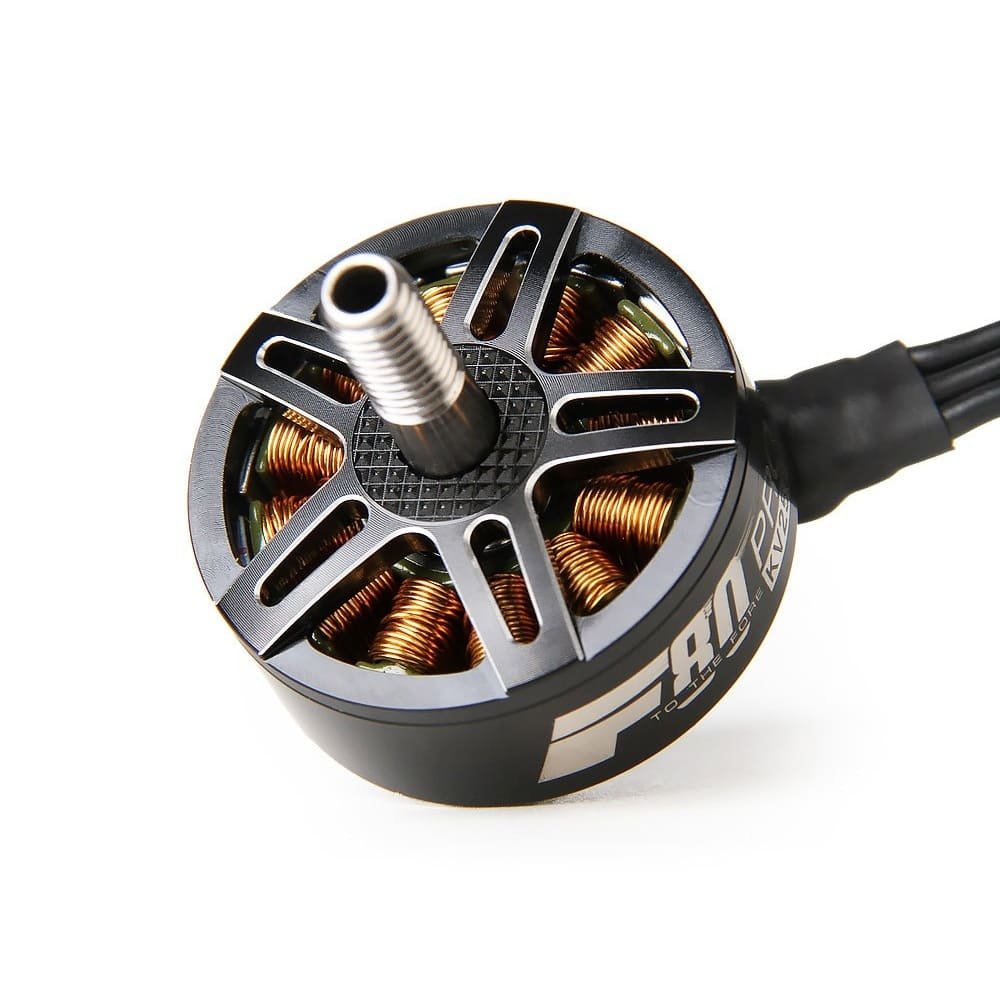

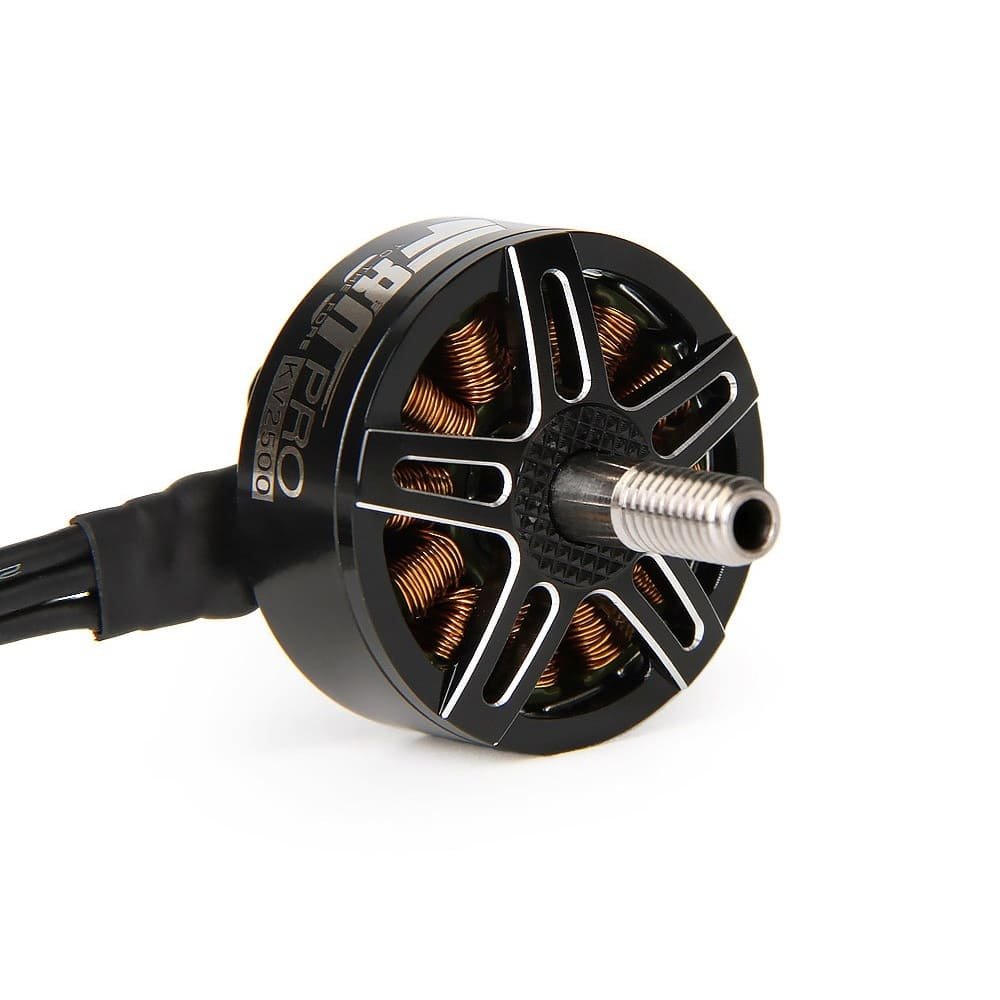

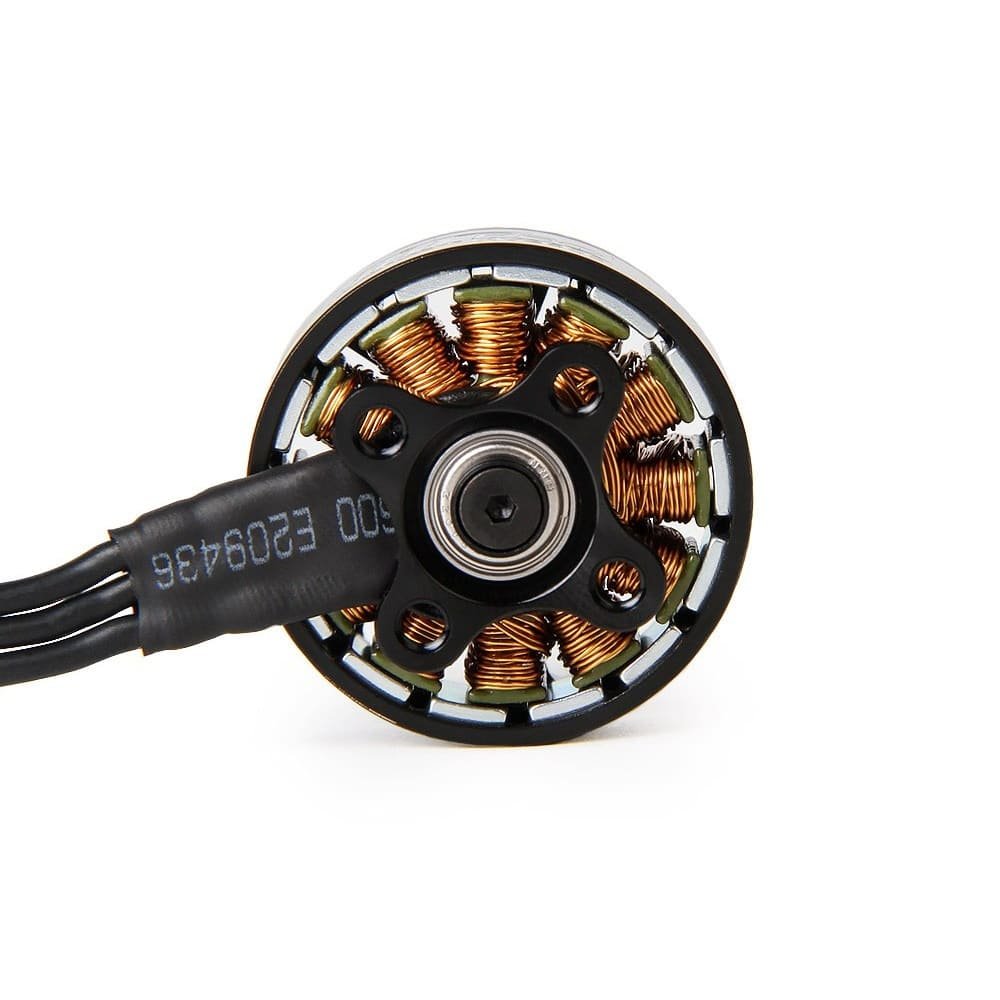

- About T-MOTOR F80 PRO 5-6 Inch Racing Motor
T-Motor F80 Pro 2408 fpv motors. These brushless motors are mean and put out insane power! Designed for long range, racing and freestyle builds. - F80 PRO Highlights:

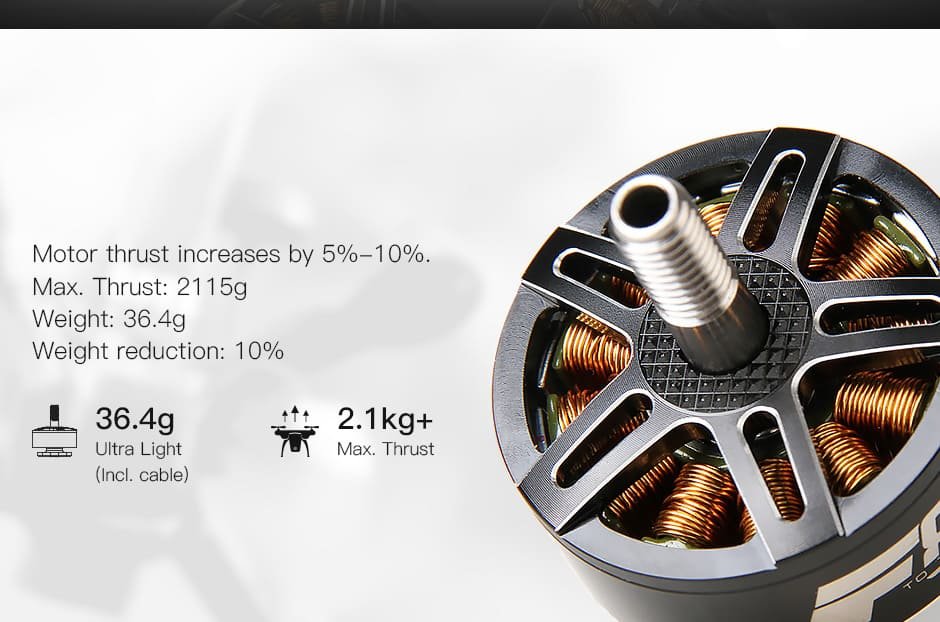

F80 FPV motor, weight 36.4g, maximum pulling force up to 2kg+, suitable for 5-6 inch FPV drone. Using high-temperature resistant silver wire.
The temperature resistance is increased by 33%, reaching 240°C, and the operation is more stable under high power. Bearings imported from Japan have low noise and low friction coefficient.

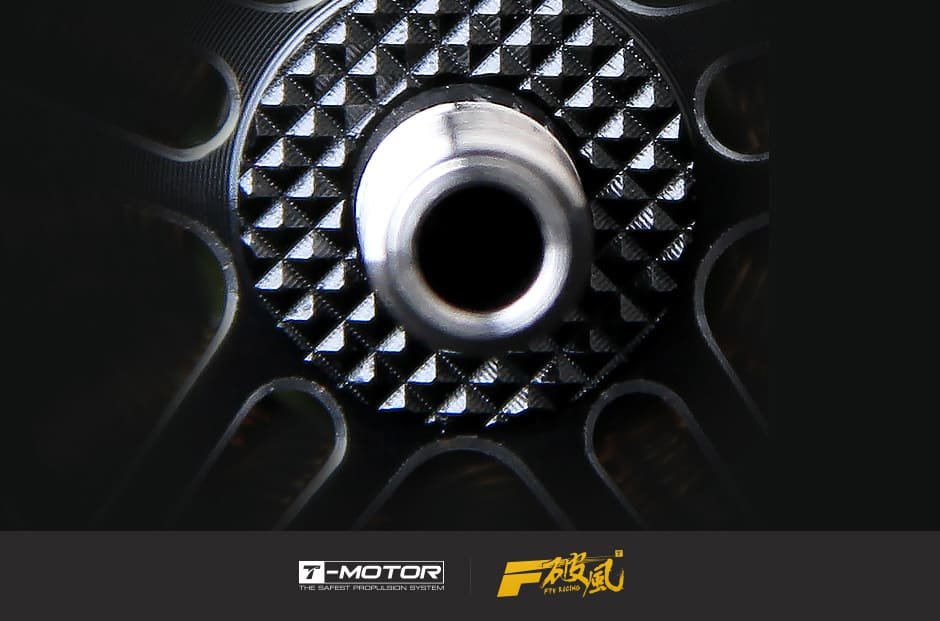

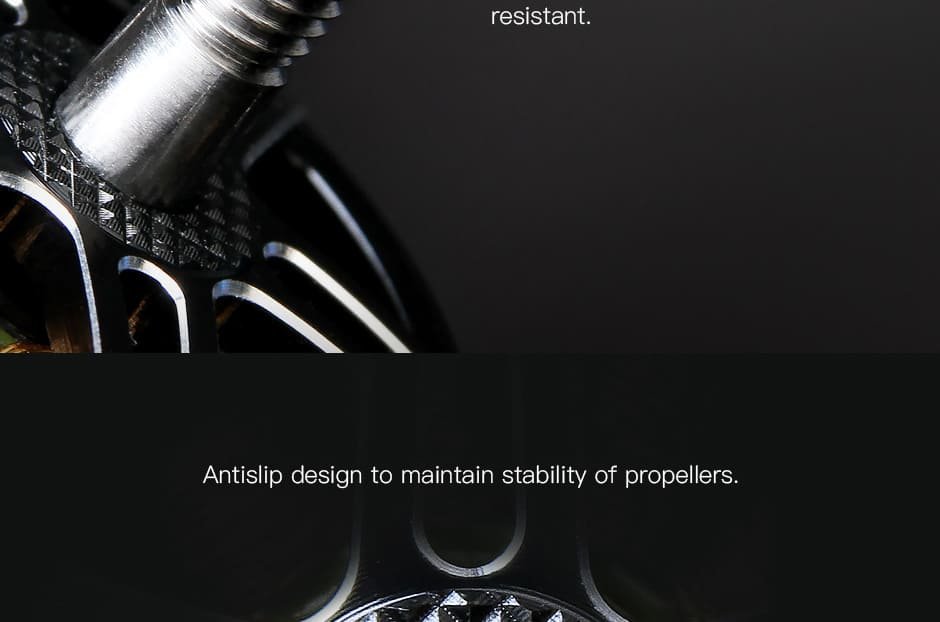

Which can reduce motor heating. Titanium alloy bearings are tougher and impact-resistant, and the cogging anti-slip design prevents the propeller from slipping.
1900KV/2200KV for efficient long-range flight, and 2500KV for freestyle and racing. - Packing List Includes:
1x F80 Pro 1900kv Motor

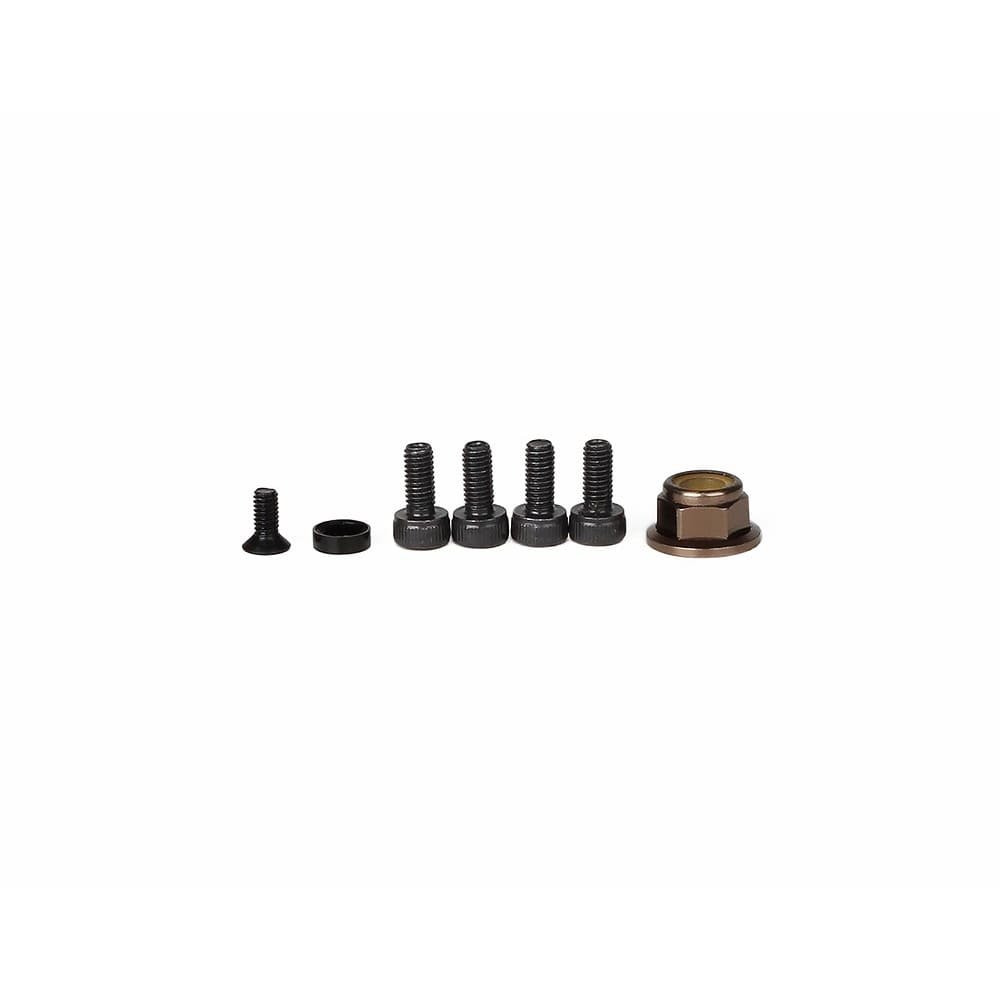

1x Parts Bag

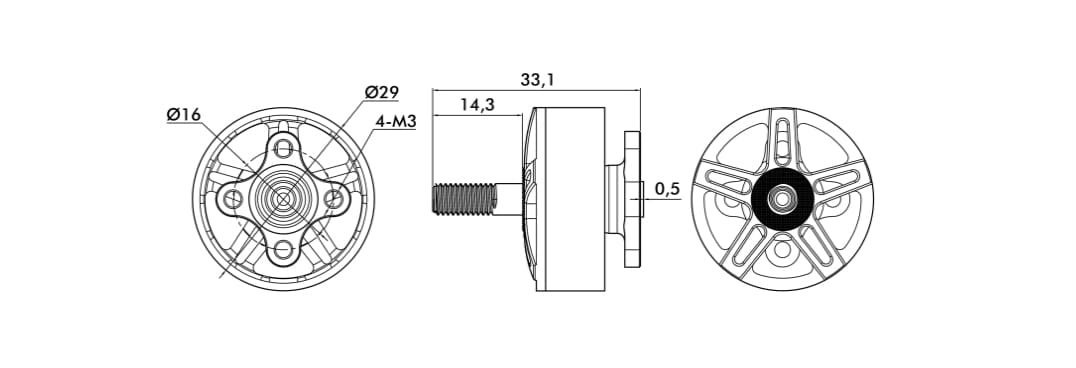

| Technical Drawing | |||
 |
|||
| Specification | |||
| KV | KV1900 | Weight(Incl. Cable) | 39.7g |
| Motor Dimensions | Φ29*33.6mm | Internal Resistance | 42mΩ |
| Lead | 20AWG 150mm | Configuration | 12N14P |
| Shaft Diameter | 4mm | Rated Voltage(Lipo) | 3-6S |
| Idle Current(10V) | 1.7A | Peak Current(180s) | 49.2A |
| Max. Power | 1122W | ||
| KV | KV2200 | Weight(Incl. Cable) | 39.7g |
| Motor Dimensions | Φ29*33.6mm | Internal Resistance | 35mΩ |
| Lead | 20AWG 150mm | Configuration | 12N14P |
| Shaft Diameter | 4mm | Rated Voltage(Lipo) | 3-5S |
| Idle Current(10V) | 1.9A | Peak Current(180s) | 49.4A |
| Max. Power | 928W | ||
| KV | KV2500 | Weight(Incl. Cable) | 39.7g |
| Motor Dimensions | Φ29*33.6mm | Internal Resistance | 32mΩ |
| Lead | 20AWG 150mm | Configuration | 12N14P |
| Shaft Diameter | 4mm | Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 2.5A | Peak Current(180s) | 47.6A |
| Max. Power | 706W | ||

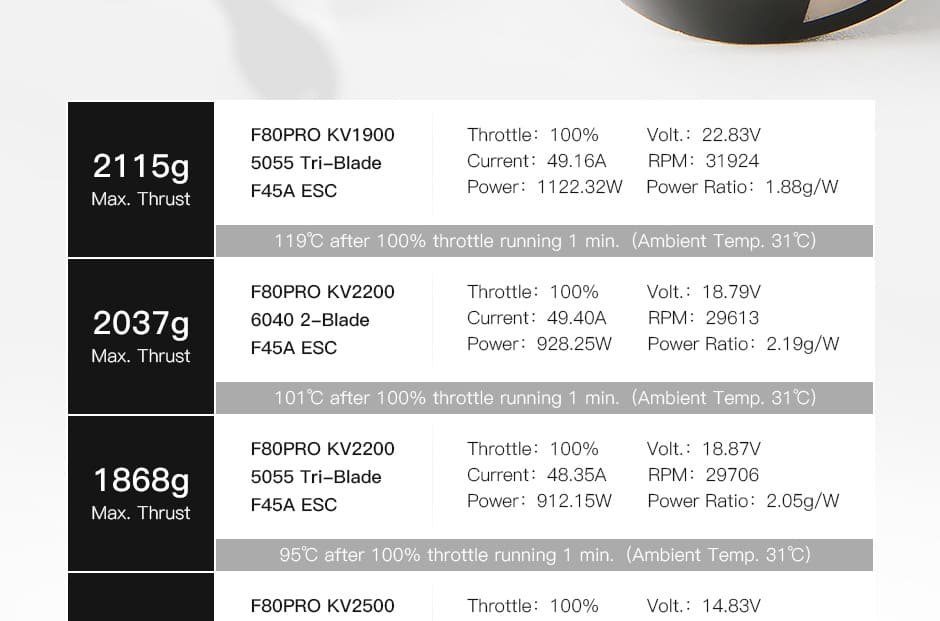

| Test Data | |||||||||
| Type | Propeller | Throttle | Thrust (g) | Voltage (V) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (℃) |
| F80 Pro KV1900 | 5055 Tri-Blade | 50% | 790.04 | 23.89 | 11.11 | 19932 | 265.36 | 2.98 | 119 (Ambient Temperature: 31℃) |
| 55% | 908.12 | 23.84 | 13.67 | 21379 | 326.01 | 2.79 | |||
| 60% | 1042.01 | 23.78 | 16.61 | 22752 | 395.05 | 2.64 | |||
| 65% | 1182.98 | 23.71 | 19.67 | 24172 | 466.49 | 2.54 | |||
| 70% | 1323.01 | 23.63 | 23.04 | 25353 | 544.56 | 2.43 | |||
| 75% | 1418.16 | 23.54 | 26.09 | 26680 | 614.28 | 2.31 | |||
| 80% | 1555.57 | 23.41 | 29.91 | 27697 | 700.37 | 2.22 | |||
| 85% | 1683.97 | 23.28 | 33.90 | 28525 | 789.23 | 2.13 | |||
| 90% | 1793.47 | 23.14 | 38.02 | 29579 | 879.73 | 2.04 | |||
| 95% | 1896.57 | 22.99 | 42.09 | 30357 | 967.77 | 1.96 | |||
| 100% | 2114.78 | 22.83 | 49.16 | 31924 | 1122.32 | 1.88 | |||
| F80 Pro KV2200 | 5055 Tri-Blade | 50% | 704.65 | 19.89 | 11.16 | 18832 | 221.95 | 3.17 | 95 (Ambient Temperature: 31℃) |
| 55% | 818.27 | 19.84 | 13.79 | 20104 | 273.51 | 2.99 | |||
| 60% | 907.14 | 19.79 | 16.47 | 21492 | 325.87 | 2.78 | |||
| 65% | 1031.42 | 19.72 | 19.73 | 22710 | 389.04 | 2.65 | |||
| 70% | 1154.17 | 19.64 | 23.00 | 23980 | 451.81 | 2.55 | |||
| 75% | 1287.66 | 19.53 | 26.77 | 24983 | 522.90 | 2.46 | |||
| 80% | 1388.59 | 19.42 | 30.22 | 26014 | 586.76 | 2.37 | |||
| 85% | 1492.02 | 19.29 | 34.01 | 26950 | 656.15 | 2.27 | |||
| 90% | 1589.63 | 19.16 | 37.84 | 27796 | 724.97 | 2.19 | |||
| 95% | 1661.82 | 19.01 | 41.77 | 28554 | 794.20 | 2.09 | |||
| 100% | 1867.94 | 18.87 | 48.35 | 29706 | 912.15 | 2.05 | |||
| 6040 2-Blade | 50% | 736.57 | 19.89 | 11.18 | 18754 | 222.46 | 3.31 | 101 (Ambient Temperature: 31℃) |
|
| 55% | 847.93 | 19.84 | 13.69 | 20131 | 271.77 | 3.12 | |||
| 60% | 993.47 | 19.78 | 16.85 | 21330 | 333.29 | 2.98 | |||
| 65% | 1110.80 | 19.71 | 19.96 | 22574 | 393.52 | 2.82 | |||
| 70% | 1239.35 | 19.64 | 23.09 | 23884 | 453.43 | 2.73 | |||
| 75% | 1396.62 | 19.53 | 26.93 | 24790 | 525.83 | 2.66 | |||
| 80% | 1540.87 | 19.40 | 30.77 | 25715 | 596.89 | 2.58 | |||
| 85% | 1661.79 | 19.27 | 34.76 | 26640 | 669.79 | 2.48 | |||
| 90% | 1741.02 | 19.14 | 38.47 | 27495 | 736.30 | 2.36 | |||
| 95% | 1851.99 | 18.98 | 42.95 | 28202 | 815.02 | 2.27 | |||
| 100% | 2037.30 | 18.79 | 49.40 | 29613 | 928.25 | 2.19 | |||
| F80 Pro KV2500 | 5055 Tri-Blade | 50% | 591.73 | 15.85 | 11.10 | 17325 | 175.99 | 3.36 | 74 (Ambient Temperature: 31℃) |
| 55% | 676.24 | 15.79 | 13.56 | 18568 | 214.09 | 3.16 | |||
| 60% | 751.15 | 15.73 | 16.09 | 19781 | 253.24 | 2.97 | |||
| 65% | 843.19 | 15.67 | 19.01 | 20809 | 297.95 | 2.83 | |||
| 70% | 945.44 | 15.61 | 22.30 | 21783 | 348.03 | 2.72 | |||
| 75% | 1010.05 | 15.52 | 25.57 | 22951 | 397.01 | 2.54 | |||
| 80% | 1120.09 | 15.42 | 29.13 | 23807 | 449.12 | 2.49 | |||
| 85% | 1222.90 | 15.29 | 33.01 | 24520 | 504.80 | 2.42 | |||
| 90% | 1304.56 | 15.17 | 36.80 | 25256 | 558.15 | 2.34 | |||
| 95% | 1363.42 | 15.04 | 40.40 | 25960 | 607.82 | 2.24 | |||
| 100% | 1516.82 | 14.88 | 46.67 | 27110 | 694.45 | 2.18 | |||
| 6040 2-Blade | 50% | 625.57 | 15.87 | 11.27 | 17282 | 178.91 | 3.50 | 80 (Ambient Temperature: 31℃) |
|
| 55% | 719.71 | 15.81 | 13.76 | 18554 | 217.53 | 3.31 | |||
| 60% | 816.18 | 15.70 | 16.46 | 19641 | 258.31 | 3.16 | |||
| 65% | 917.09 | 15.65 | 19.45 | 20632 | 304.29 | 3.01 | |||
| 70% | 1004.55 | 15.59 | 22.49 | 21763 | 350.72 | 2.86 | |||
| 75% | 1106.85 | 15.52 | 25.91 | 22791 | 402.14 | 2.75 | |||
| 80% | 1228.74 | 15.40 | 29.81 | 23566 | 459.04 | 2.68 | |||
| 85% | 1320.52 | 15.28 | 33.42 | 24389 | 510.73 | 2.59 | |||
| 90% | 1419.87 | 15.15 | 37.29 | 25078 | 565.15 | 2.51 | |||
| 95% | 1527.30 | 15.02 | 41.45 | 25597 | 622.61 | 2.45 | |||
| 100% | 1700.76 | 14.83 | 47.62 | 26793 | 706.20 | 2.41 | |||

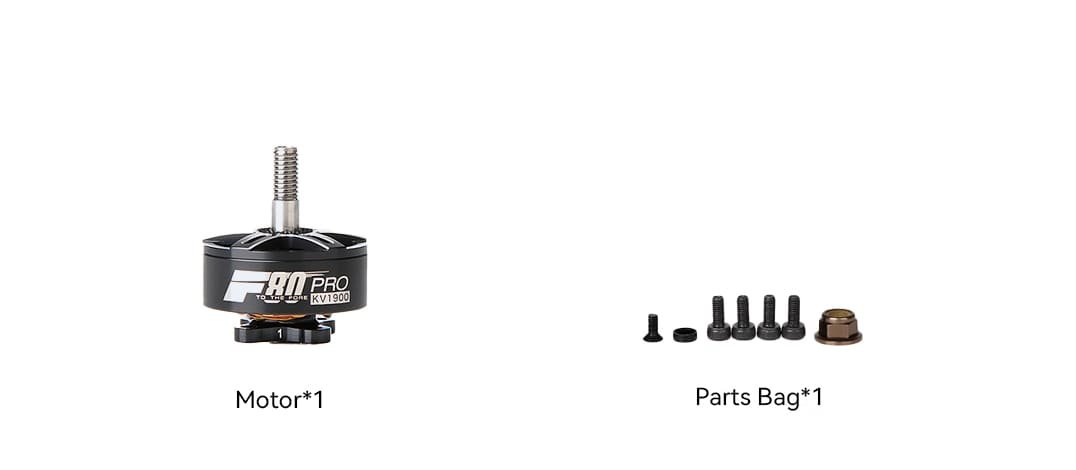

| Packing List | |||||||||
 | |||||||||
