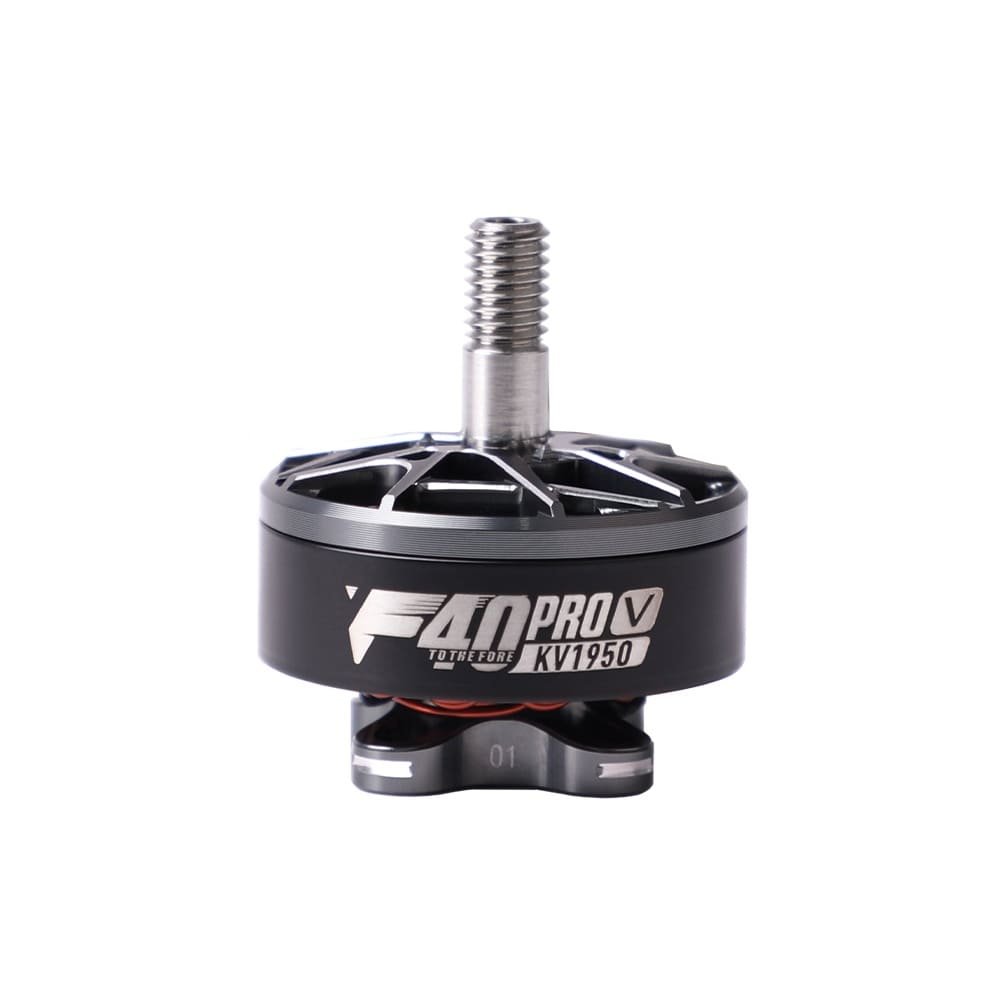

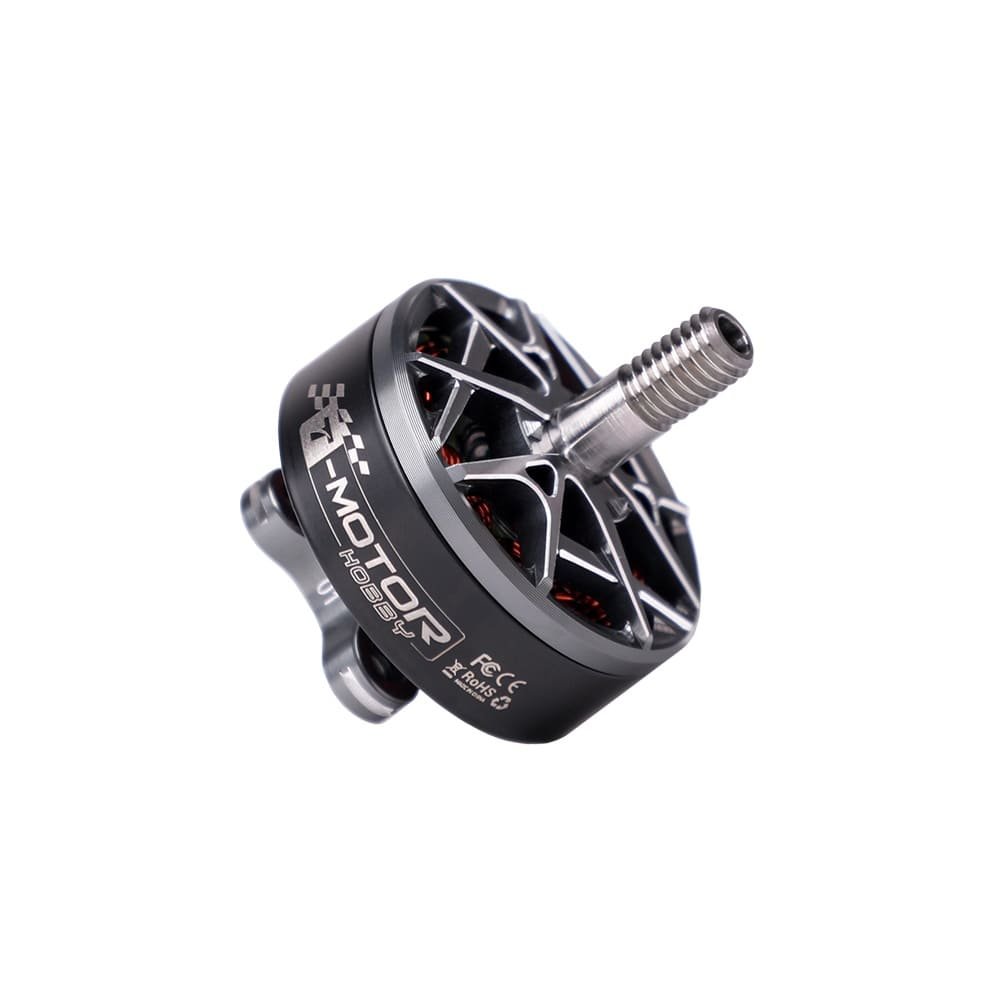

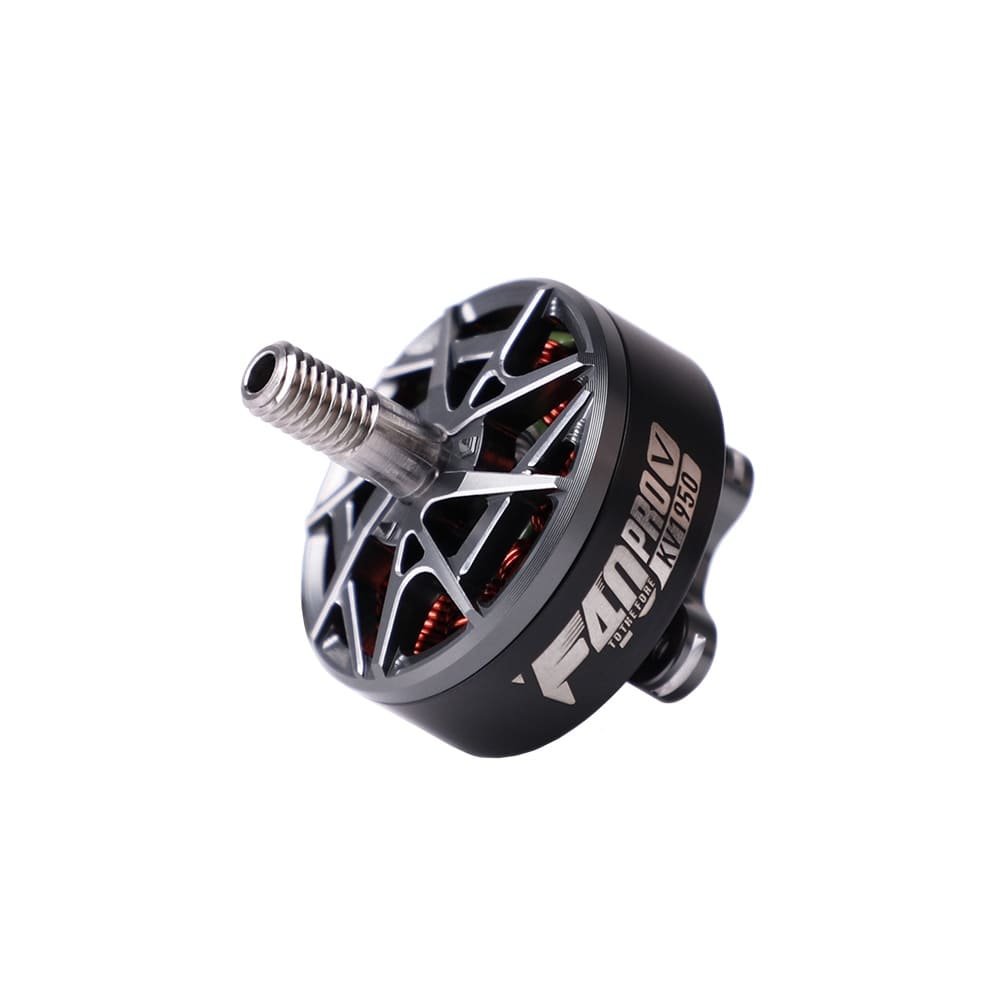

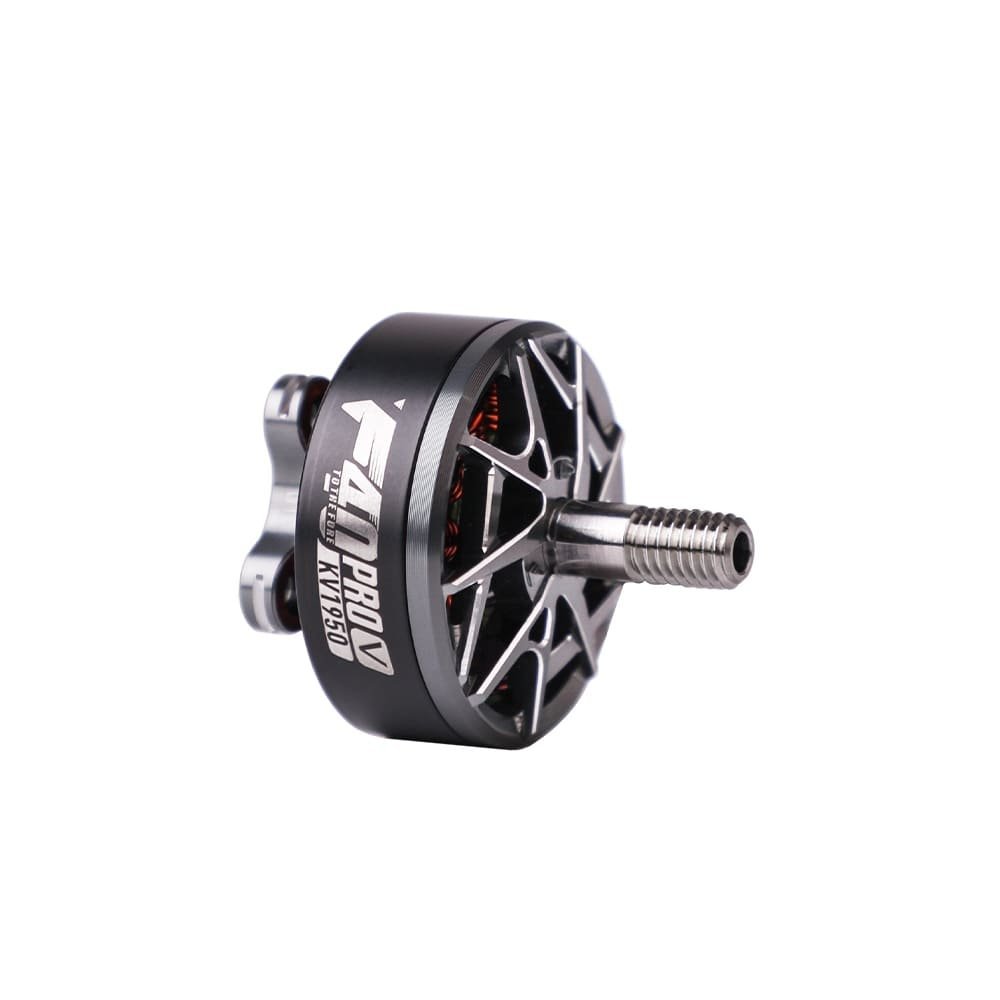

F40 PRO V 2306.8 5-Inch FPV Racing Motor
- Optimized magnetic circuit
- Lower flight temperature

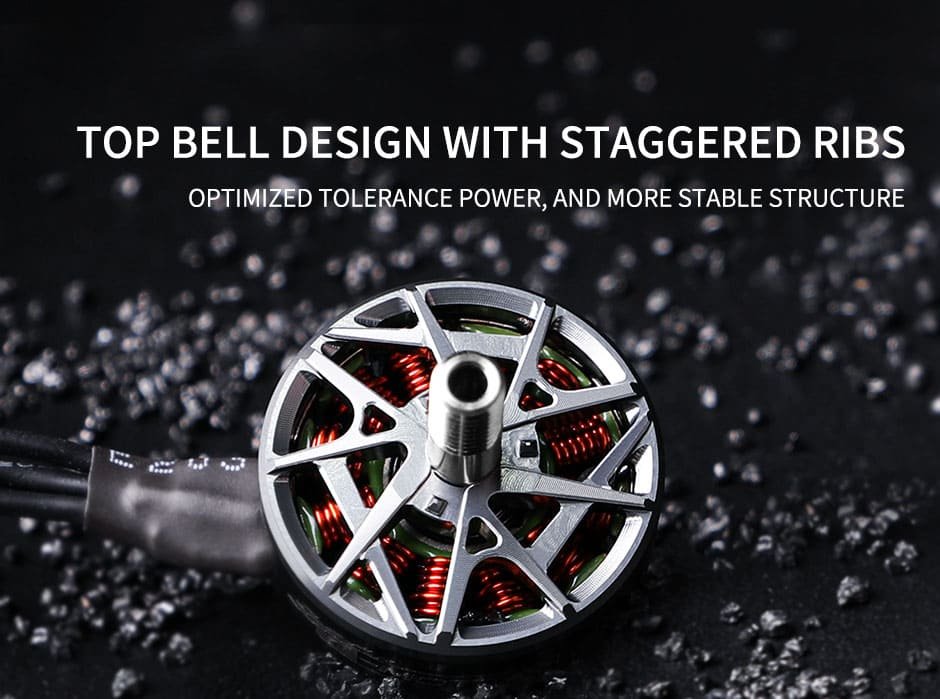

- Staggered rib bell design
- Raised propeller lock
- Titanium alloy shaft
- EZO bearings
$26.90
Share on:
- About T-MOTOR F40 Pro V 5-Inch FPV Racing Drone Motor
T-Motor F40 PRO V Motor, featuring a titanium alloy shaft and 2306.8 stator, delivers explosive power and precision.
Reaching 240km/h and 36,000 RPM, it ensures a super smooth racing flight experience. - F40 Pro V Highlights:
The F40 PRO V motor has high explosive power. The maximum speed of 2150KV can reach 240km/h. The speed increase per 100 kilometers only takes 0.5 seconds.
The maximum speed of the motor reaches 36,000 rpm. Its high efficiency, excellent heat dissipation and electromagnetic design enable high KV without losing pace.

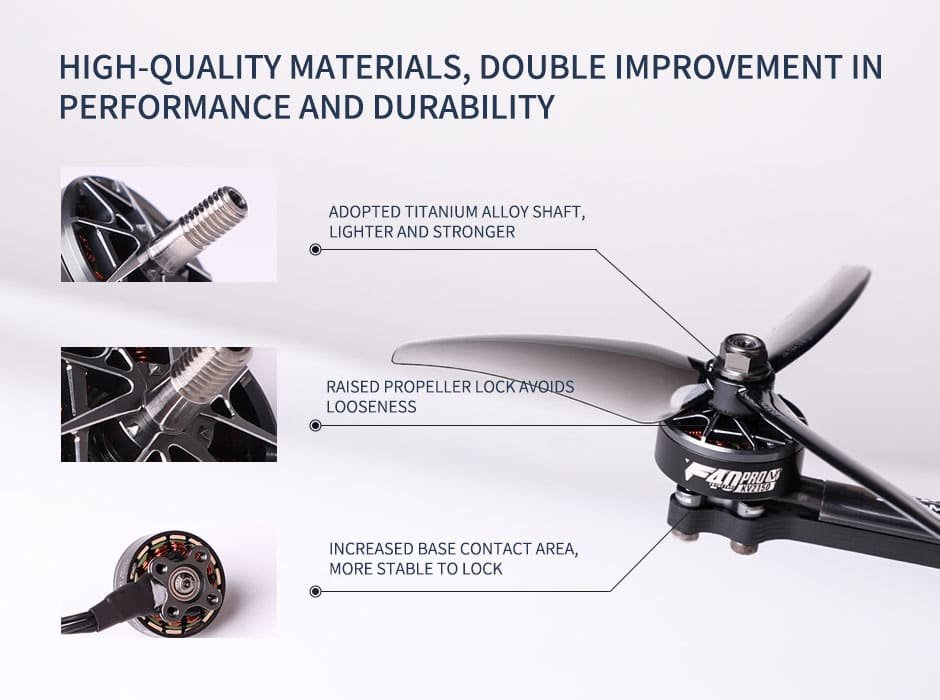

Excellent titanium alloy shaft, raised propeller lock, and imported EZO bearings ensure precision workmanship. - Matching Frame:

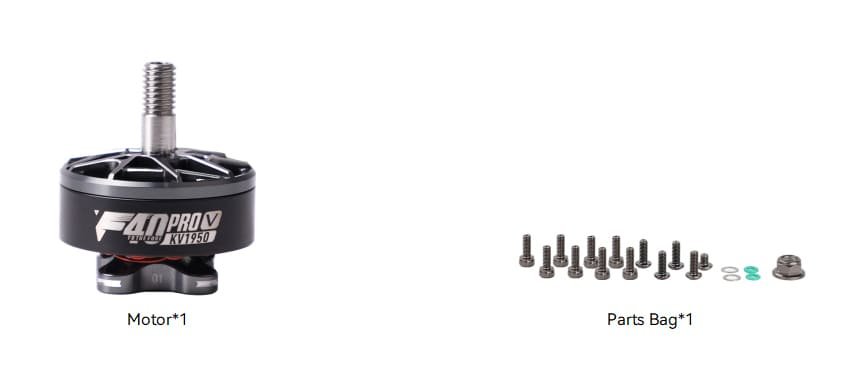

5 Inch - Packing List Includes:
1x T-Motor F40 PRO V Motor (Choose 1950KV or 2150KV)

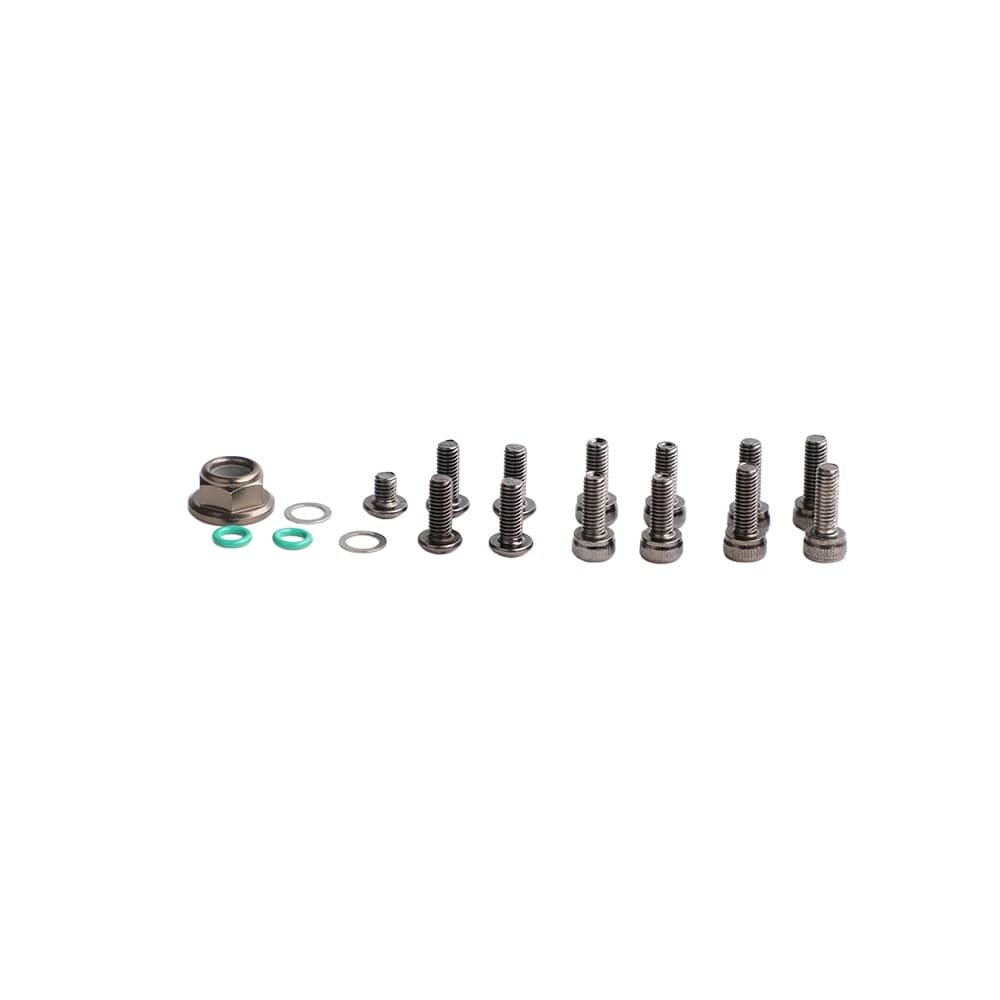

1x Hardware Kit
| Technical Drawing | |||
 |
|||
| Specification | |||
| KV | KV1950 | Configuration | 12N14P |
| Shaft Diameter | IN:4mm OUT:5mm | Lead | 20#150mm |
| Weight (Incl. Cable) | 34.5g | Voltage | 25.2V |
| Idle Current(10V) | 1.49A | Max. Power(10s) | 1354W |
| Peak Current(10s) | 55.5A | ||
| KV | KV2150 | Configuration | 12N14P |
| Shaft Diameter | IN:4mm OUT:5mm | Lead | 20#150mm |
| Weight (Incl. Cable) | 33.7g | Voltage | 25.2V |
| Idle Current(10V) | 1.55A | Max. Power(10s) | 1591W |
| Peak Current(10s) | 65.6A | ||
| Test Data | ||||||||
| Propeller | Type | Throttle | Voltage (V) | Current (A) | RPM | Thrust (g) | Power (W) | Efficiency (g/W) |
| T-MOTOR T5143S-3 | 1950KV | 20% | 25.2 | 2.7 | 13212.6 | 242.8 | 68.8 | 3.5 |
| 40% | 25.1 | 8.9 | 19856.2 | 588.9 | 223.6 | 2.6 | ||
| 60% | 25.0 | 16.0 | 24507.1 | 926.5 | 400.6 | 2.3 | ||
| 80% | 24.8 | 29.3 | 29978.4 | 1355.0 | 725.0 | 1.9 | ||
| 100% | 24.5 | 50.4 | 35275.0 | 1845.5 | 1233.8 | 1.5 | ||
| 2150KV | 20% | 25.2 | 3.5 | 13970.8 | 270.0 | 87.9 | 3.1 | |
| 40% | 25.0 | 11.5 | 21162.4 | 672.6 | 287.9 | 2.3 | ||
| 60% | 24.9 | 19.3 | 26030.8 | 1058.4 | 482.0 | 2.2 | ||
| 80% | 24.7 | 36.1 | 31585.5 | 1504.7 | 889.9 | 1.7 | ||
| 100% | 24.3 | 60.5 | 36418.5 | 1966.5 | 1470.4 | 1.3 | ||
| T-MOTOR T5147-3 | 1950KV | 20% | 25.2 | 2.8 | 12081.1 | 269.8 | 70.9 | 3.8 |
| 40% | 25.1 | 9.4 | 18434.1 | 663.2 | 236.1 | 2.8 | ||
| 60% | 24.9 | 19.1 | 22987.9 | 1060.8 | 475.7 | 2.2 | ||
| 80% | 24.7 | 34.2 | 28369.3 | 1610.7 | 845.9 | 1.9 | ||
| 100% | 24.4 | 55.5 | 32523.4 | 2032.9 | 1353.9 | 1.5 | ||
| 2150KV | 20% | 25.1 | 3.6 | 12977.3 | 315.4 | 90.4 | 3.5 | |
| 40% | 25.0 | 12.1 | 19428.8 | 744.0 | 302.3 | 2.5 | ||
| 60% | 24.9 | 22.9 | 24400.5 | 1196.6 | 568.5 | 2.1 | ||
| 80% | 24.6 | 41.7 | 29377.8 | 1715.8 | 1026.1 | 1.7 | ||
| 100% | 24.2 | 65.6 | 33384.2 | 2108.3 | 1591.0 | 1.3 | ||
| GF 51466-3 | 1950KV | 20% | 25.2 | 2.8 | 13043.2 | 271.1 | 69.3 | 3.9 |
| 40% | 25.1 | 9.1 | 19484.3 | 645.9 | 227.2 | 2.8 | ||
| 60% | 25.0 | 16.7 | 24054.7 | 1004.2 | 417.3 | 2.4 | ||
| 80% | 24.8 | 31.0 | 29316.5 | 1554.9 | 768.4 | 2.0 | ||
| 100% | 24.4 | 52.6 | 34381.8 | 1924.6 | 1286.4 | 1.5 | ||
| 2150KV | 20% | 25.2 | 3.4 | 13859.1 | 311.0 | 86.7 | 3.6 | |
| 40% | 25.0 | 11.6 | 20666.5 | 734.1 | 289.2 | 2.5 | ||
| 60% | 24.9 | 20.1 | 25474.7 | 1154.0 | 500.2 | 2.3 | ||
| 80% | 24.7 | 37.7 | 30890.7 | 1641.0 | 929.7 | 1.8 | ||
| 100% | 24.3 | 63.0 | 35369.5 | 2026.4 | 1530.0 | 1.3 | ||

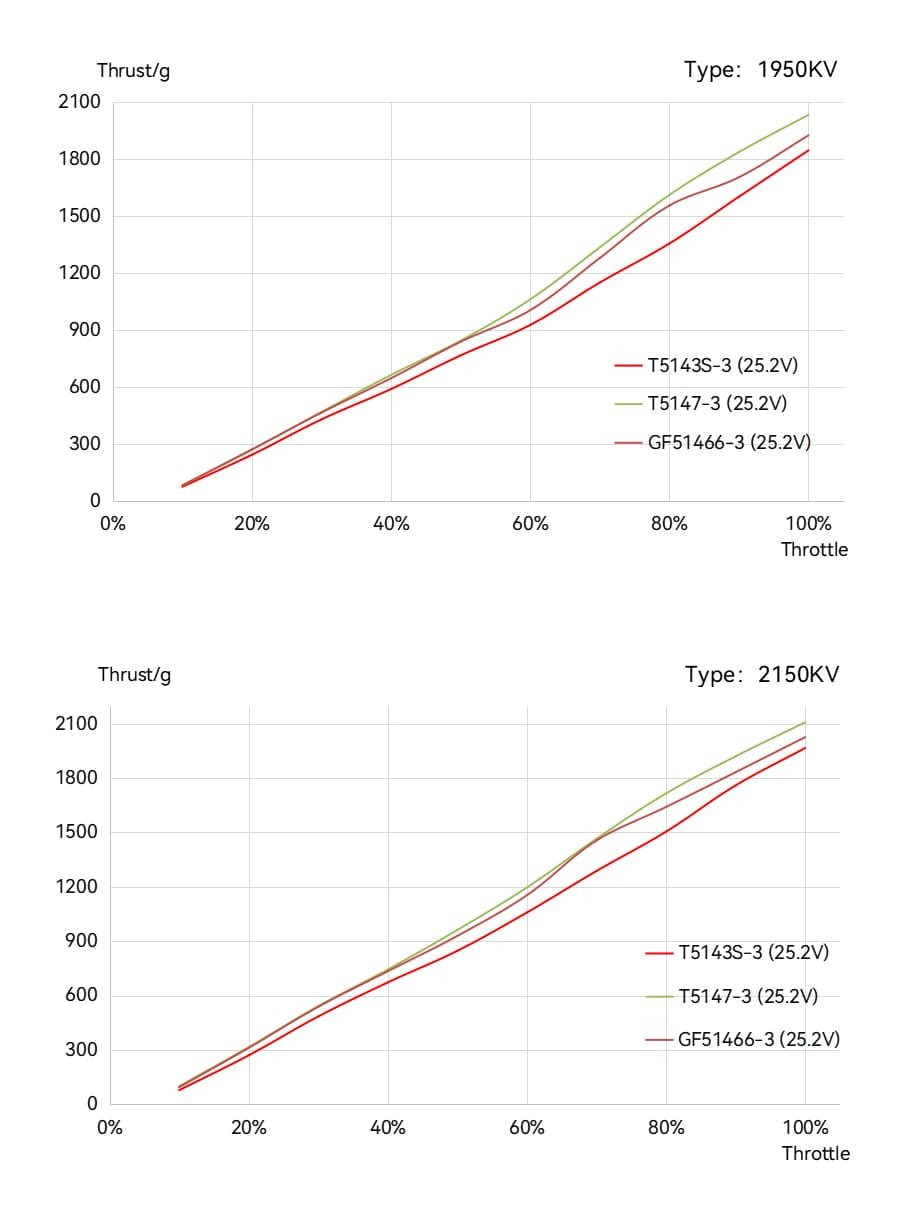

| Analysis Chart | ||||||||
 |
||||||||
| Packing List | ||||||||
 |
||||||||
