• Introduction

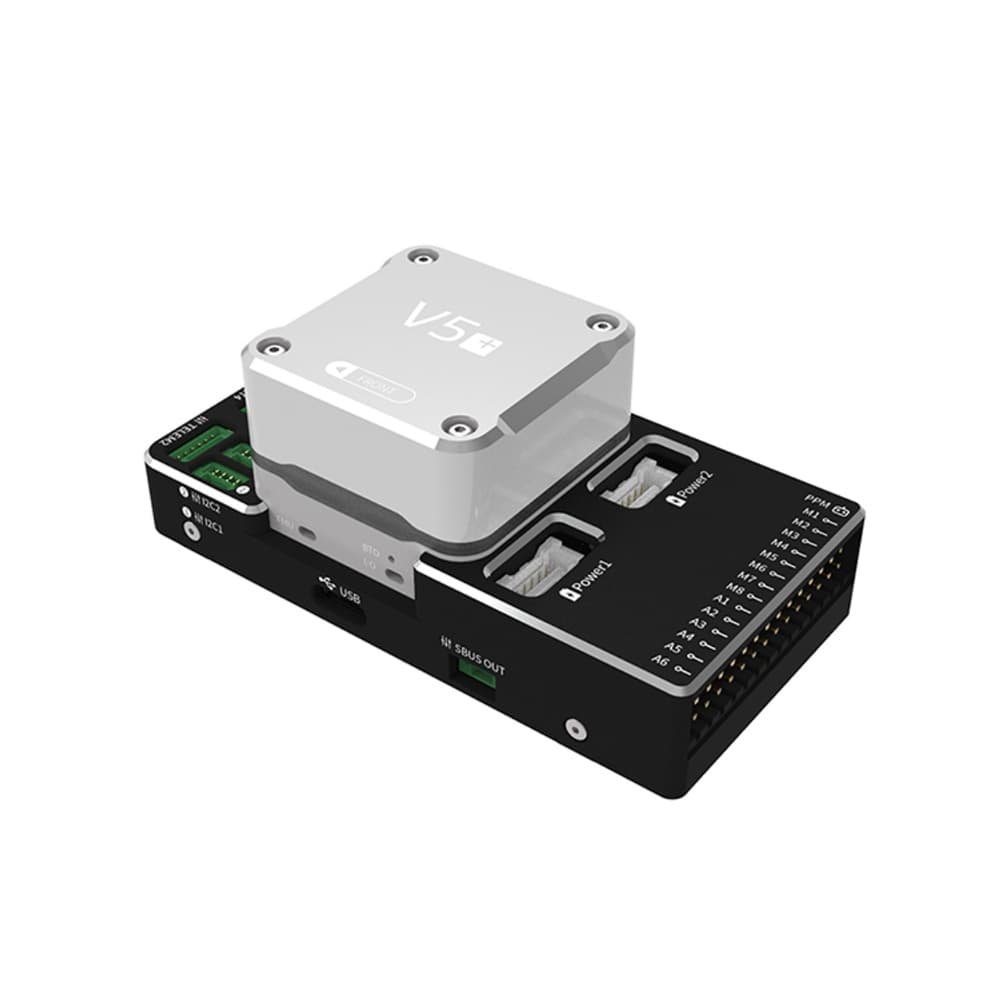

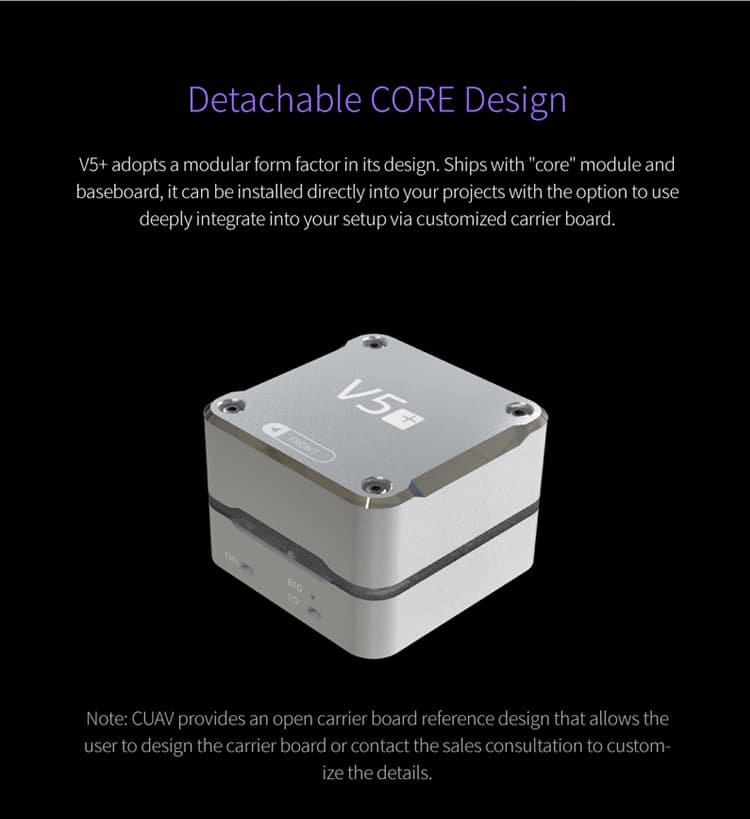

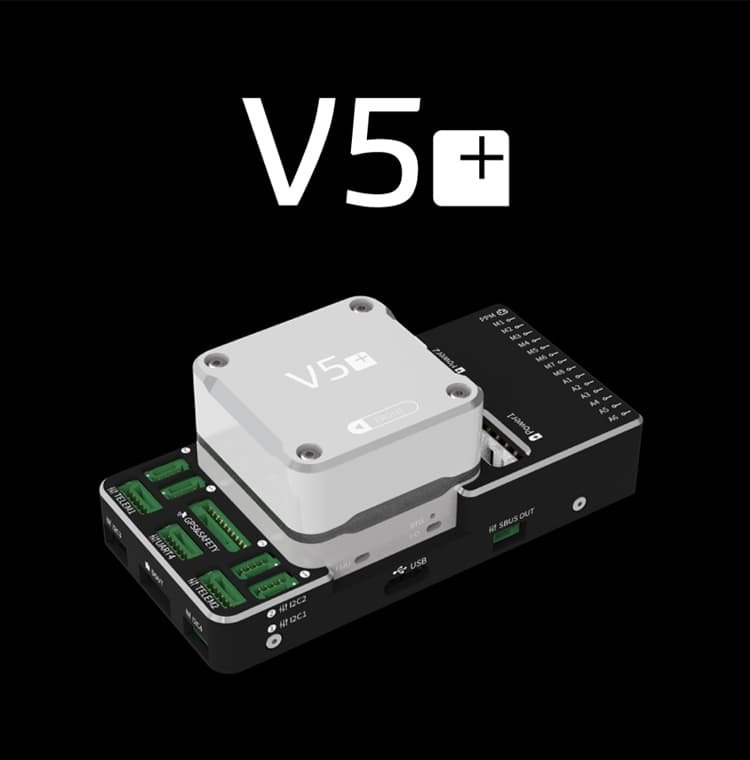

  V5+ AutoPilot® is an advanced autopilot designed and manufactured by CUAV®. The board is based on the FMUv5 open hardware design, with external interfaces following the Dronecode standard pinouts. Its modular design allows users to customize the backplane. It is fully compatible with PX4 and ArduPilot firmware, primarily used for academic and business development.
• Description

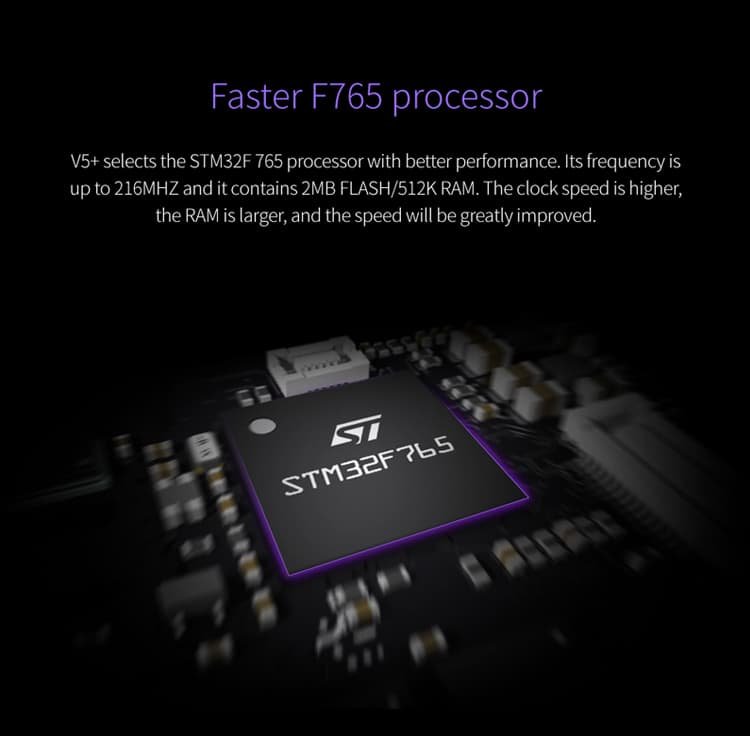

  Main FMU Processor: STM32F765
  32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
  IO Processor: STM32F100
  32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM
• On-board sensors
  Accelerometer/Gyroscope: ICM-20689
  Accelerometer/Gyroscope: BMI055
  Magnetometer: IST8310
  Barometer: MS5611

• Interface
  8-14 PWM outputs (6 from IO, 8 from FMU)
  3 dedicated PWM/Capture inputs on FMU
  Dedicated R/C input for CPPM
  Dedicated R/C input for PPM and S.Bus
  analog / PWM RSSI input
  S.Bus servo output
  5 general purpose serial ports
  4 I2C ports
  4 SPI buses
  2 CANBuses with serial ESC
  Analog inputs for voltage / current of 2 batteries

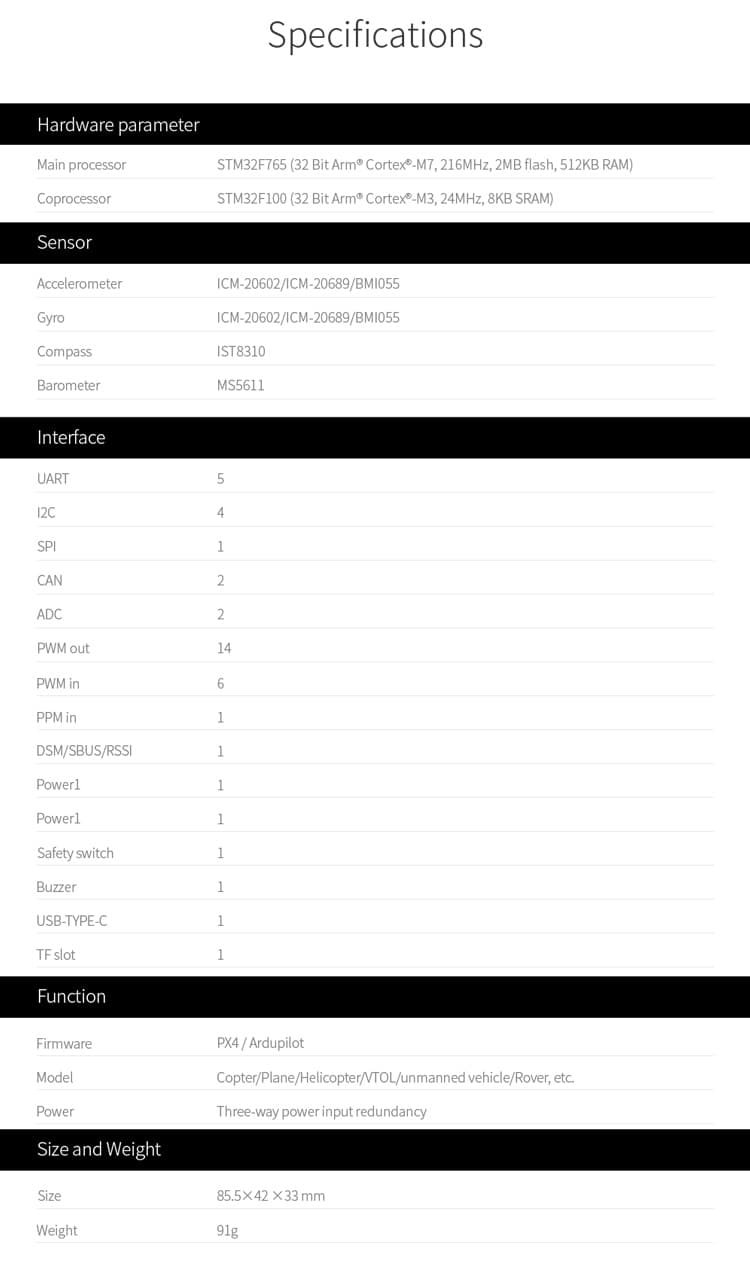

• Specification
  Power System:
  Power: 4.3~5.4V
  USB Input: 4.75~5.25V
  Servo Rail Input: 0~36V
  Weight: 90g
  Dimensions: 85.5*42*33mm
  Other Characteristics:
  Operating temperature: -20 ~ 80°c(Measured value)
• Your Purchase Includes
  1 x CUAV V5+ flight controller (without GPS module)
