Mechanical interface
The figure below shows the dimensions of the circuit board (a double-layer snap-on board without a housing).

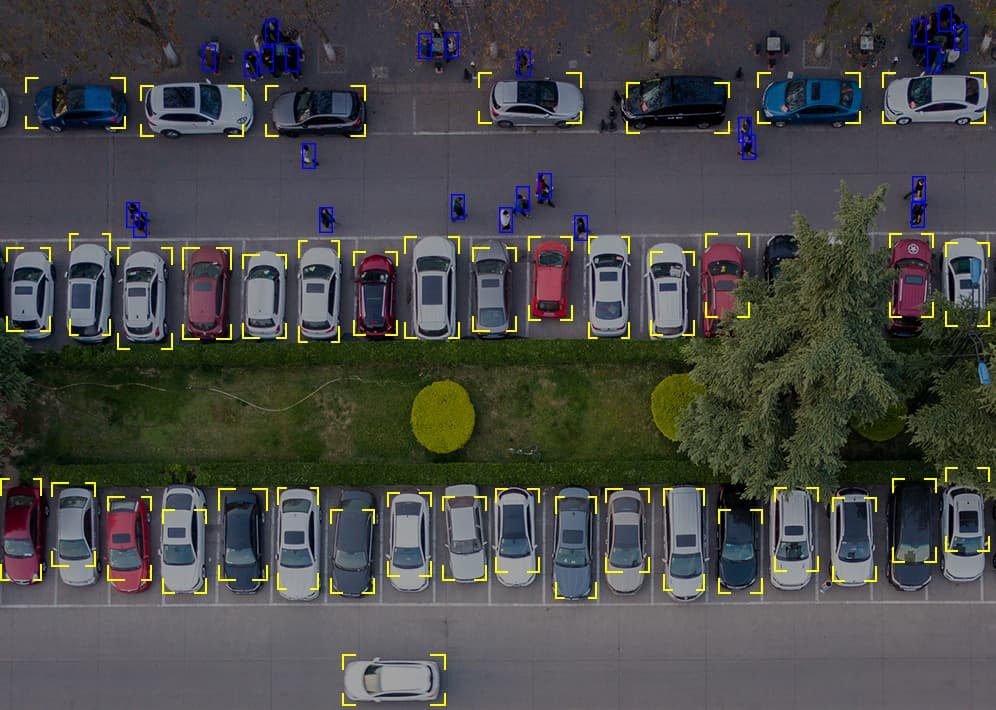

AI Identification
Automatically identifies multiple targets (such as vehicles and pedestrians) using EO or IR.

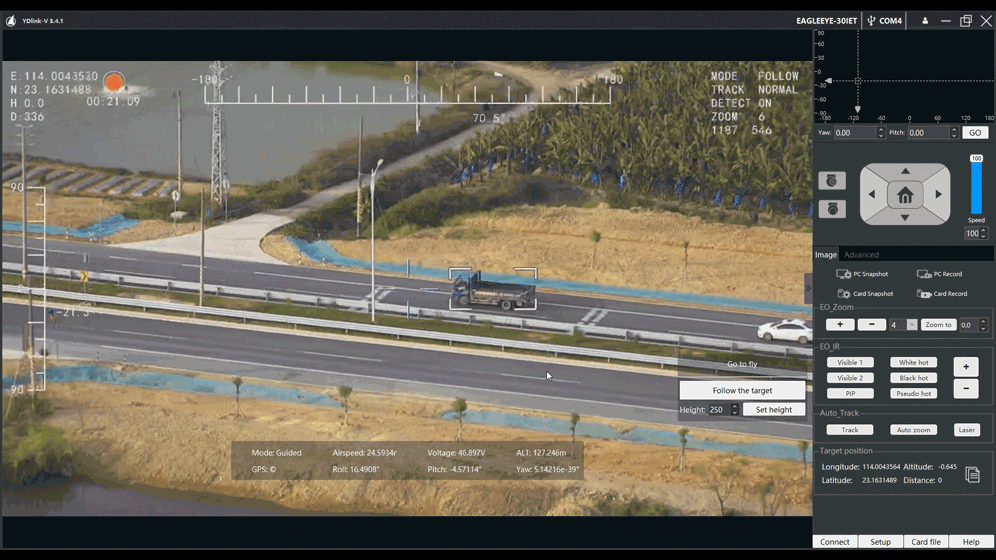

Intelligent tracking
Tracks a single target (such as a vehicle or pedestrian) and supports occlusion tracking using EO or IR.
Various OSD
The OSD feature lets you display multiple types of information on the screen at the same time, such as aircraft coordinates, camera angle, and recording time, making monitoring and management more convenient.
Easy Download
With software, users can easily download videos and screenshots via a browser.
Environmental adaptability
The system can quickly start up and remain stable even in extreme temperatures ranging from -20°C to 50°C.
Size and weight
| Size | 40*60mm |
| Weight | 25g |
| Power Consumption | Stable power consumption＜7W |
| Input Interface | Compatible with Sony LVDS visible light video interface（1920*1080 30fps）or USB visible light video interface（1920*1080 30fps，MPEG/H264） |
| Support Guide/Infiray thermal imaging USB interface（640*512 30fps） | |
| HDMI visible light video interface（1920*1080 30fps）or USB visible light video interface（1920*1080 30fps，MPEG/H264） | |
| Support Guide/Infiray thermal imaging USB interface（640*512 30fps） | |
| Output Interface | HDMI output（1920*1080 30fps/60fps） |
| Network output RTSP/UDP/TSCompress video（1920*1080 30fps, h264/h265） | |
| Control Interface | One TTL serial port / 100 Mbit/s network port |
| Video encoding and decoding | Support 1 channel 1920*1080 30fps video H264/MPEG decoding |
| Supports 2-channel 1920*1080 30fps video H264/H265 encoding for output and storage, with adjustable compression bit rate | |
| Detection | Detect typical vehicles and human targets in real time and assist in selecting and tracking targets. |
| The target number of typical vehicles and people can be counted and output. | |
| Support user-defined model update function. |
|
| Tracking | High-precision tracking of fixed and moving targets in acquired ground scene images. |
| Voltage | 12V |
| Operating temperature | -20℃~50℃ |
