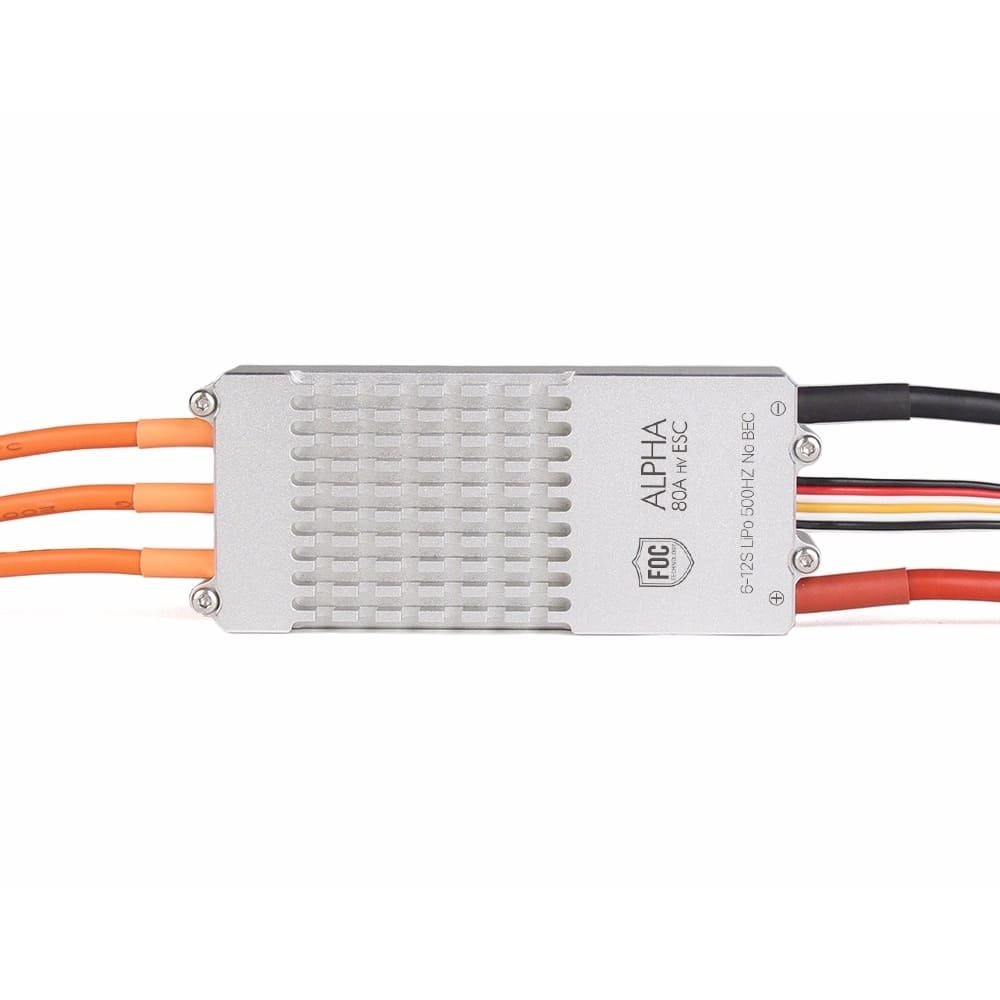

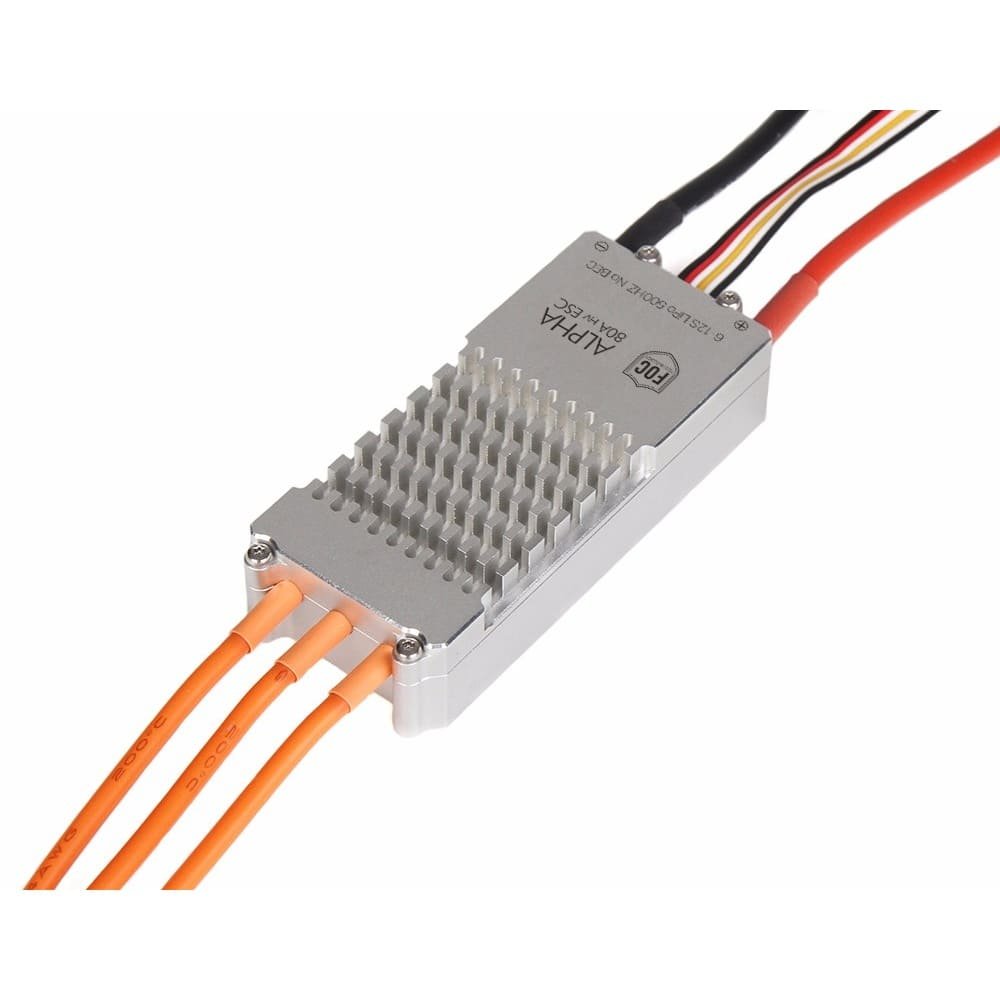

ALPHA 80A 12S Multi-Rotor Drone ESC
- Lowe Noise , Temperature and Interference，Fast Response , High Efficiency
- For Compatibility , Please Leave A Note of Motor Type
$129.99
Share on:
- About T-MOTOR ALPHA 80A 12S Multi-Rotor Drone FOC ESC

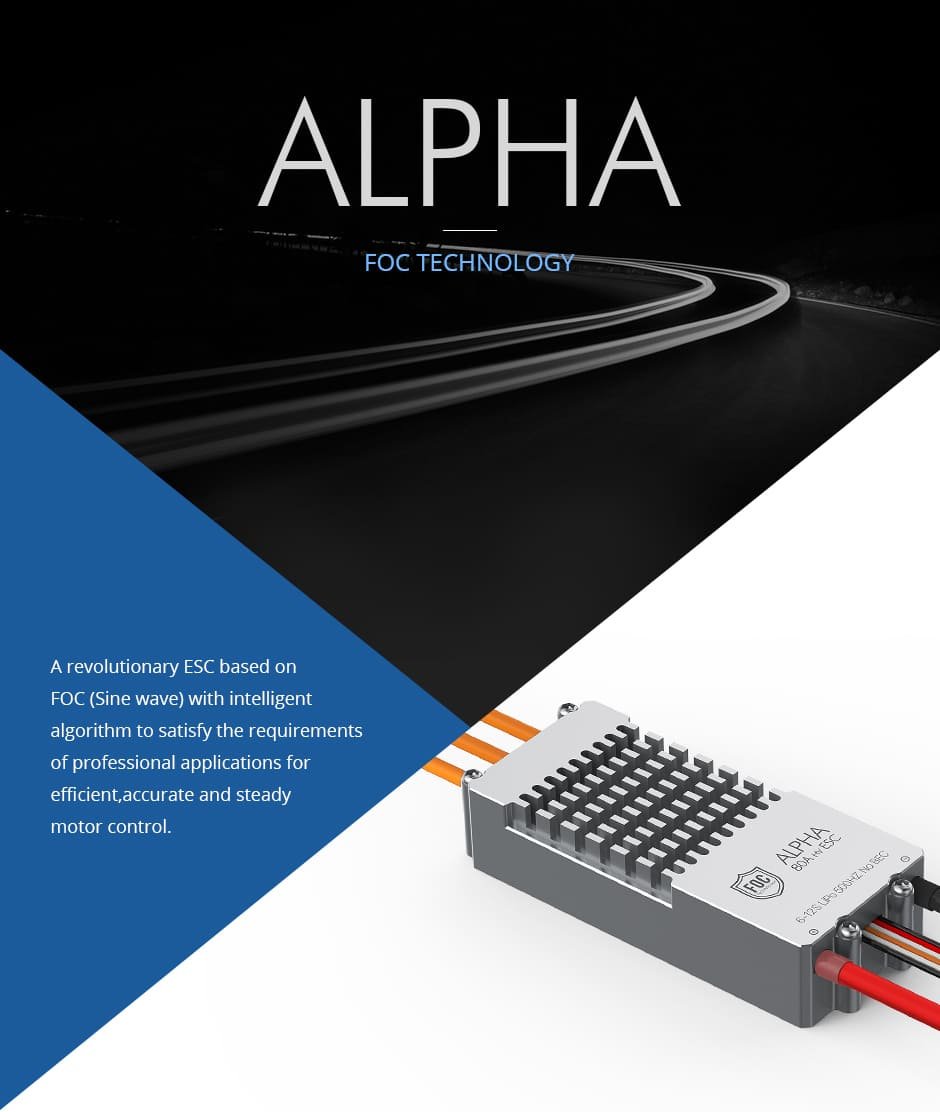

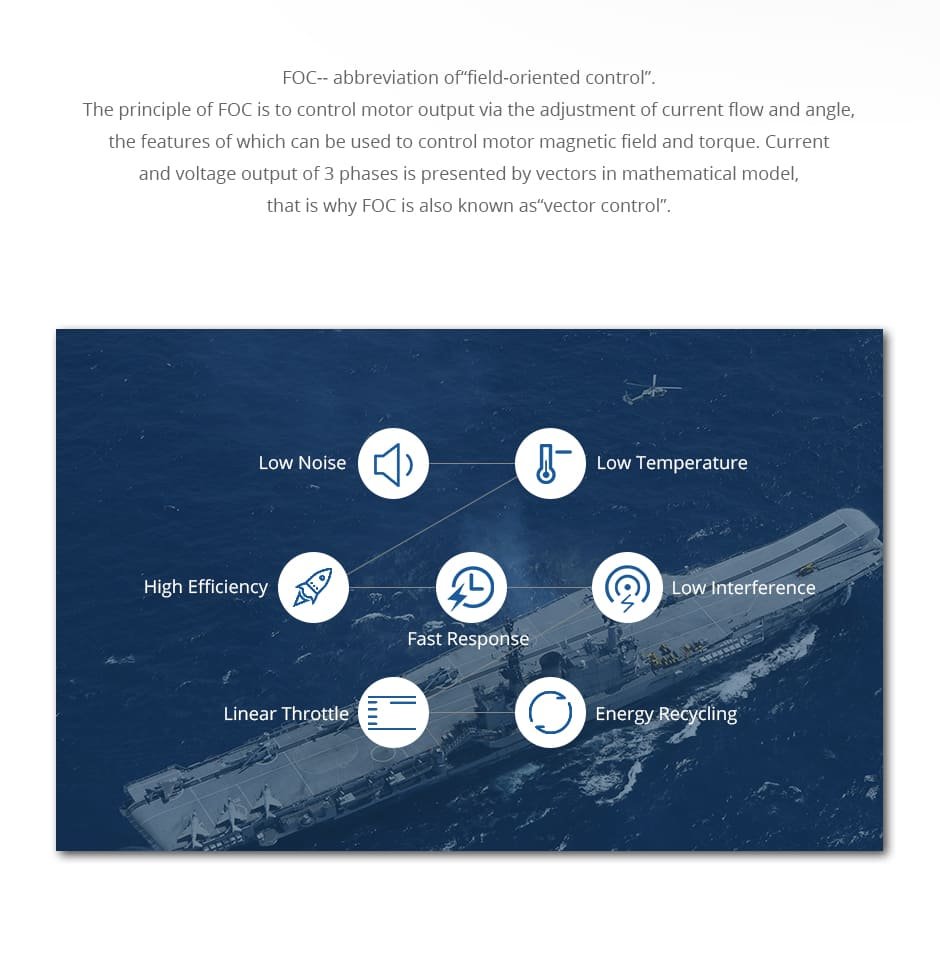

T-MOTOR Alpha 80A 12S ESC is designed for professional UAVs, featuring FOC (Sine Wave) technology and intelligent algorithms for precise, efficient, and stable motor control. It delivers low noise, low temperature, and minimal interference, ensuring reliable performance. With fast throttle response, high efficiency, and advanced protection, the Alpha 80A meets the demands of large UAVs, making it a trusted choice for professional applications. - ALPHA 80A 12S ESC Highlights:

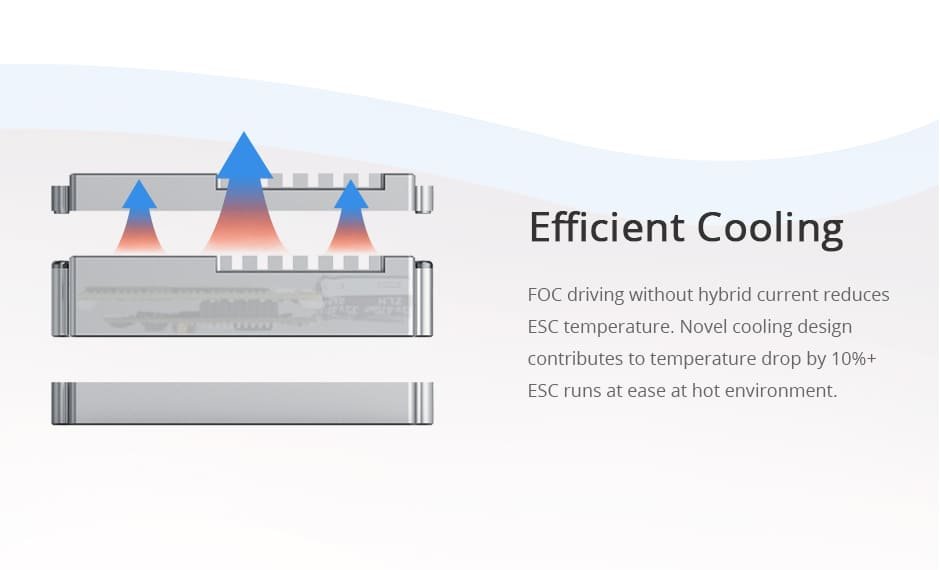

Low Noise, Temperature and Interference
Fast Response, High Efficiency

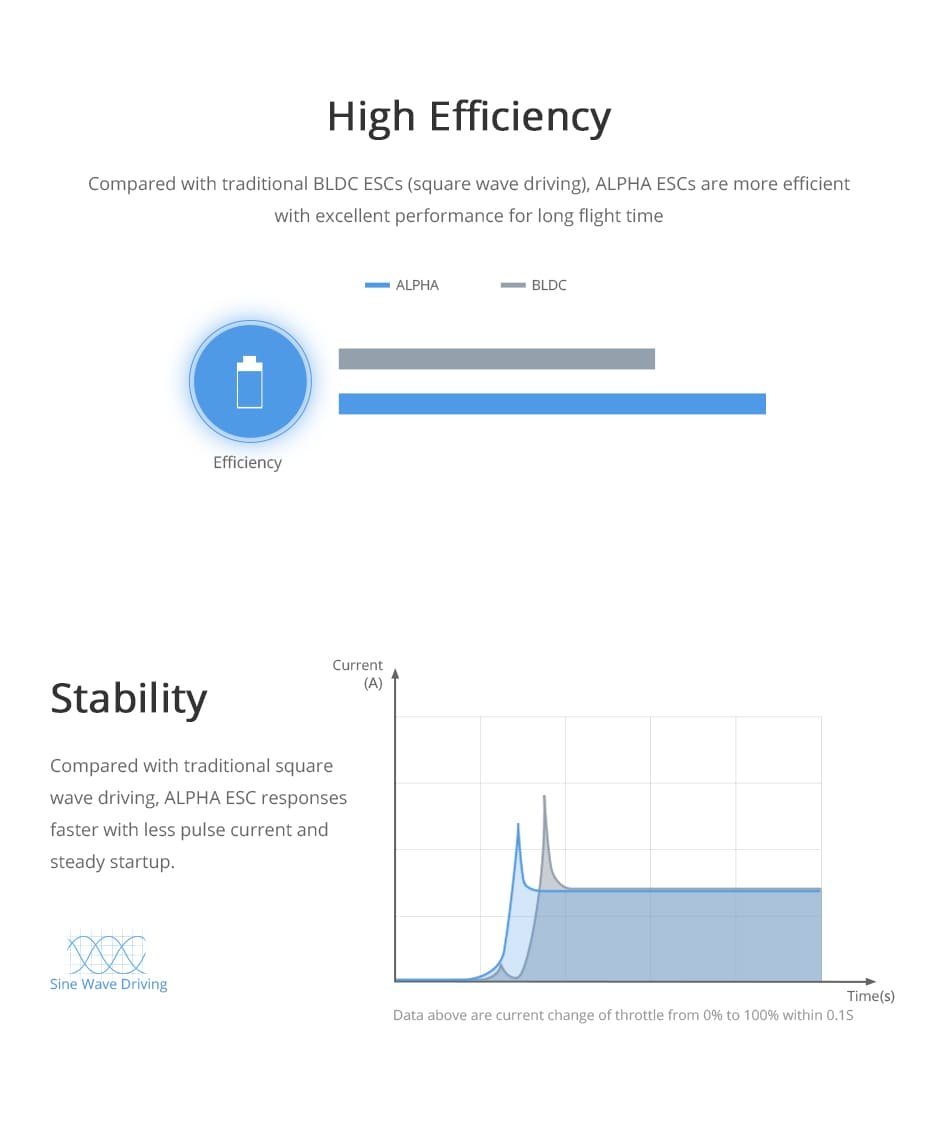

ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving.

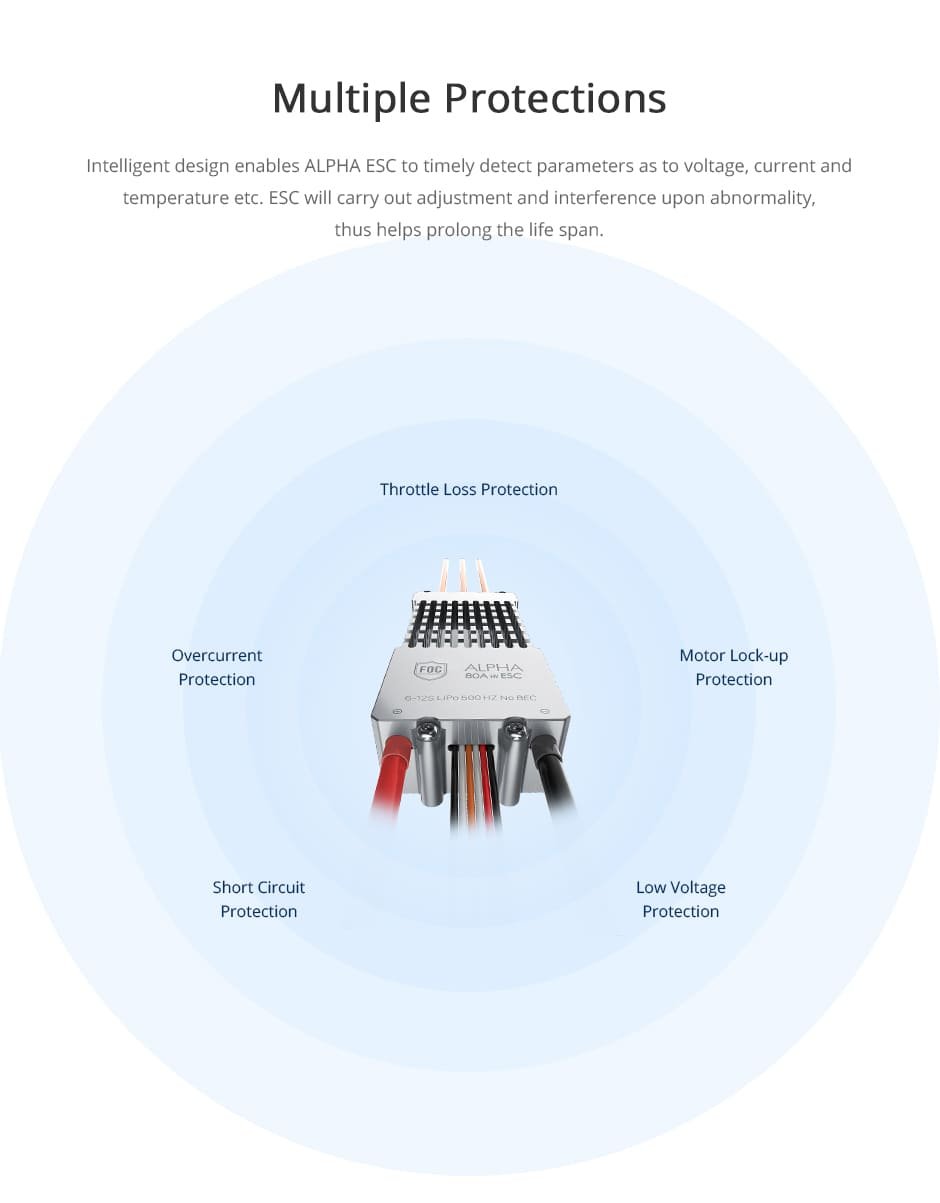

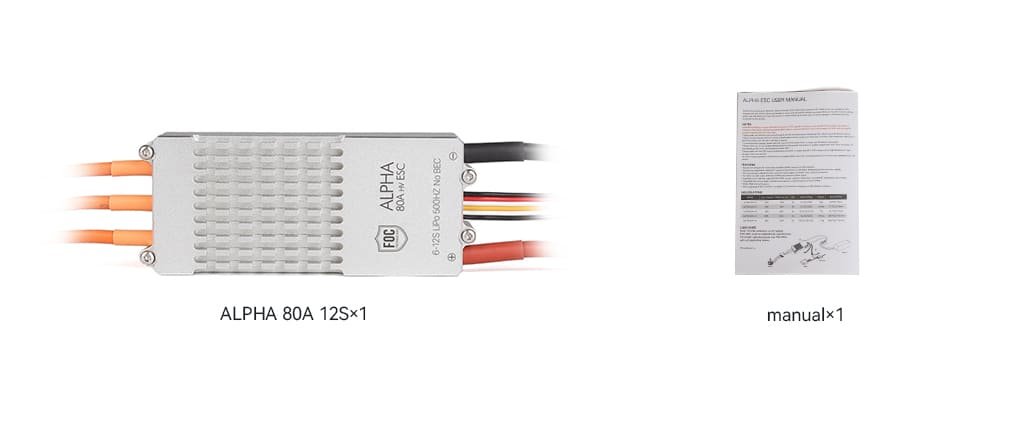

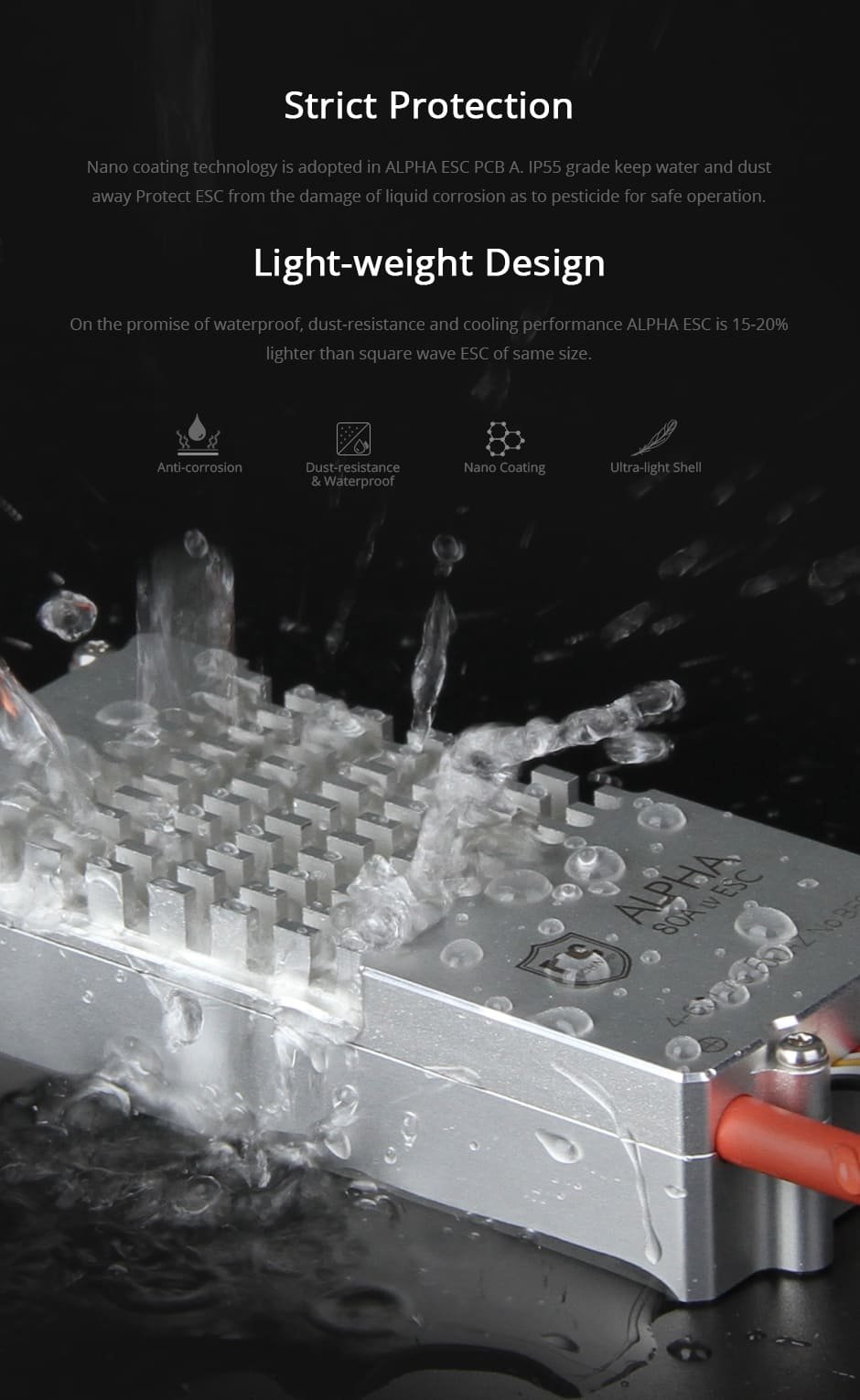

This T-MOTOR ESC contains over current/Motor Lock-up/short circuit/Low voltage protection. - Packing List Includes:

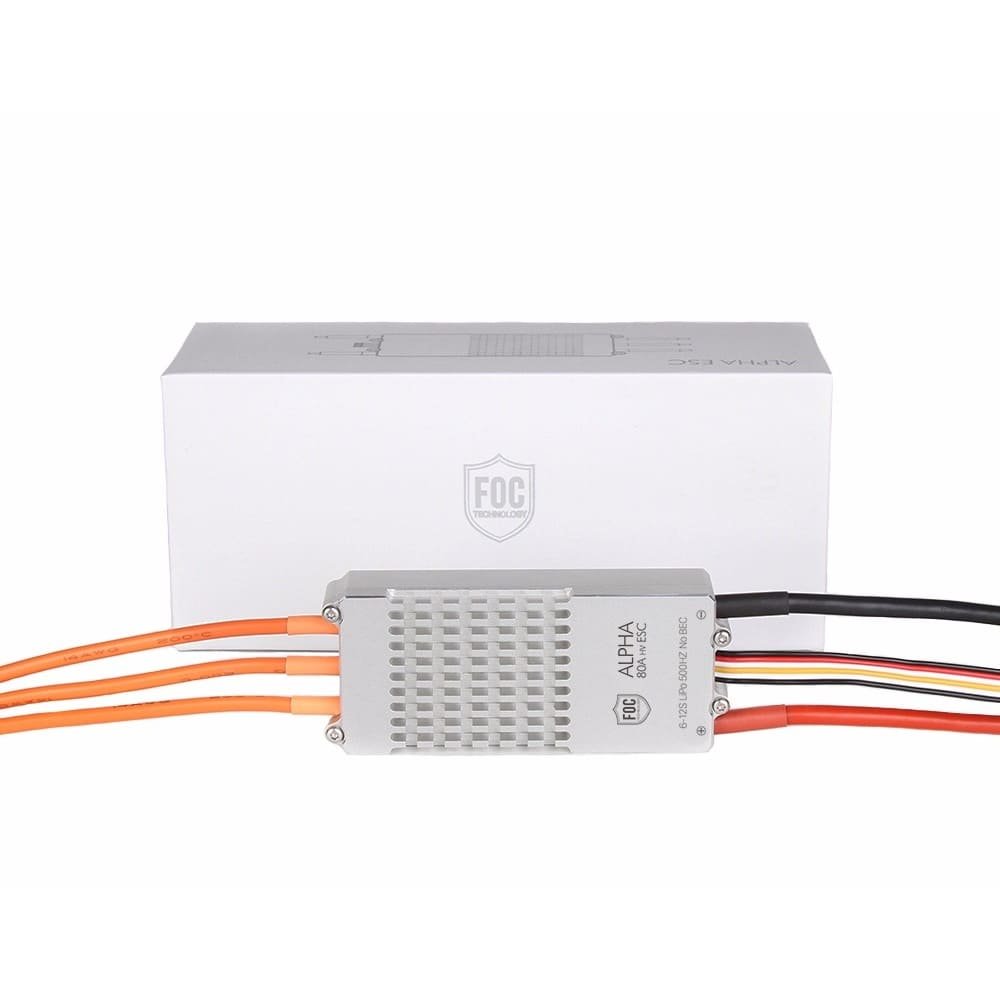

1x T-Motor ALPHA 80A 12S ESC
1x Hardware Kit
| Technical Drawing | |||
 |
|||
| Specification | |||
| Size | 88.5*36.6*19mm(L*W*H) | Power Cable | Silicone wire-red/black-12AWG-180MM |
| Weight(Incl. cables) | 110g | Signal Cable | PVC flat cable-30 core wires–2-450MM (white, blank, black/JP 3P male connector) |
| Motor Cable | Silicone wire-deep orange-14AWG-110MM*3PCS | programming Cable | PVC flat cable-30 core wires–3-50MM (black, red, white/JP 3P male connector) |
| Support Voltage(12S) | 18-52.2V | BEC | NO |
| Con. Current | 80A | Throttle Pos. Range | 1100-1940μs |
| Peak Current(10s) | 100A | Throttle Refresh Frequency | 500Hz |
| Standby Consumption | ≤50mA | Throttle Response Speed | 300ms |
| Packing List | |||
 |
|||
